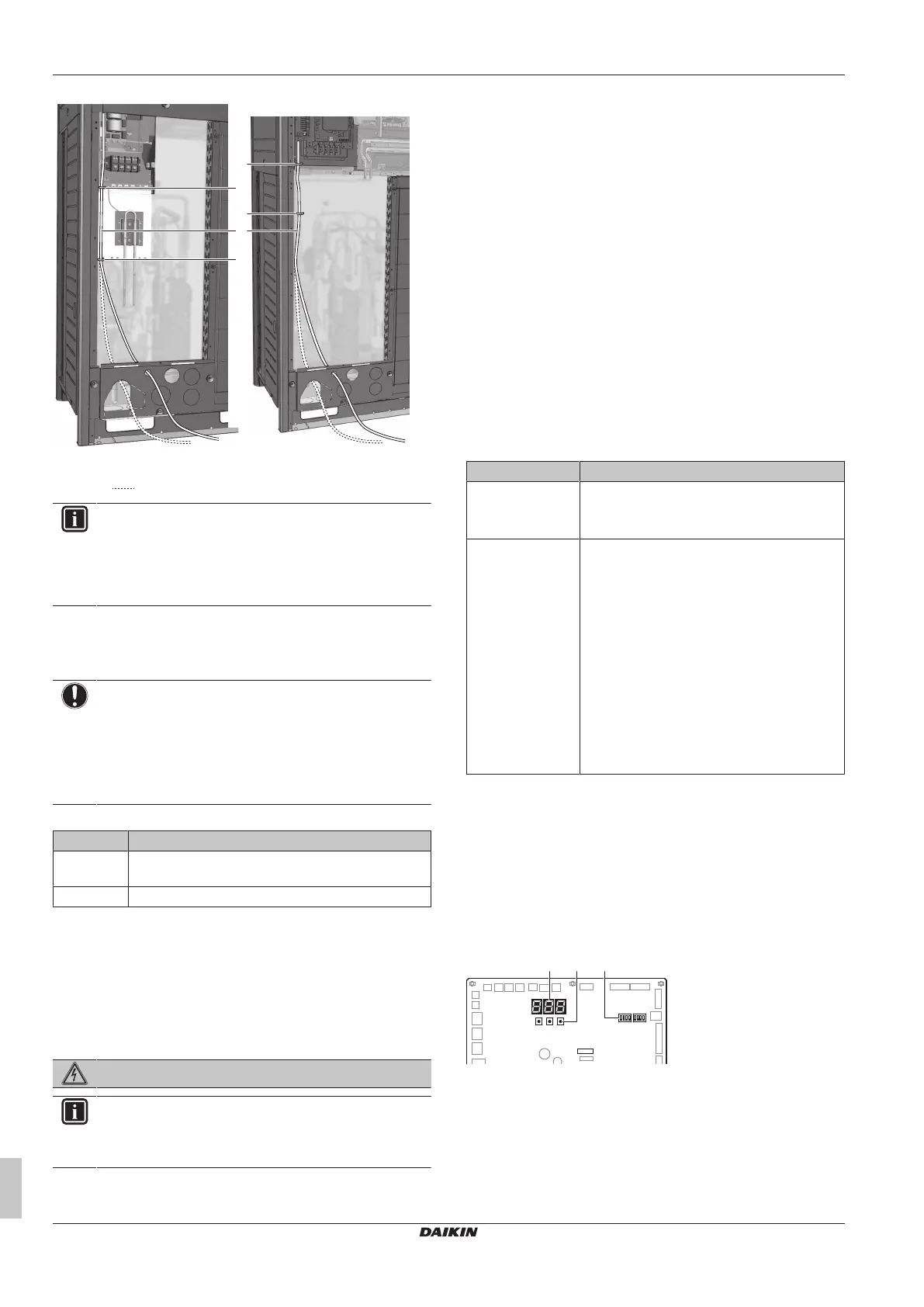

18 Configuration
Installation and operation manual
40
REMA5+REYA8~20A7Y1B
VRV 5 heat recovery
4P684060-1C – 2024.10
5~12 HP 14~20 HP
a
b
b
b
b
a Output cable (SVEO or SVS)(field supply)
b Cable tie (accessory)
Alternate routing
INFORMATION
Sound data about the refrigerant leakage alarm are
available in the technical data sheet of the user interface.
E.g. the BRC1H52* controller generates an alarm of 65dB
(sound pressure, measured at 1 m distance from the
alarm).
17.9 To check the insulation resistance
of the compressor
NOTICE
If, after installation, refrigerant accumulates in the
compressor, the insulation resistance over the poles can
drop, but if it is at least 1 MΩ, then the unit will not break
down.
▪ Use a 500V mega-tester when measuring insulation.
▪ Do NOT use a mega-tester for low voltage circuits.
1 Measure the insulation resistance over the poles.
If Then
≥1MΩ Insulation resistance is OK. This procedure is
finished.
<1MΩ Insulation resistance is not OK. Go to the next step.
2 Turn ON the power and leave it on for 6hours.
Result: The compressor will heat up and evaporate any
refrigerant in the compressor.
3 Measure the insulation resistance again.
18 Configuration
DANGER: RISK OF ELECTROCUTION
INFORMATION
It is important that all information in this chapter is read
sequentially by the installer and that the system is
configured as applicable.
18.1 Making field settings
18.1.1 About making field settings
To continue the configuration of the VRV 5 heat recovery system, it
is required to give some input to the PCB of the unit. This chapter
will describe how manual input is possible by operating the push
buttons on the PCB and reading the feedback from the 7‑segment
displays.
Making settings is done via the master outdoor unit.
Next to making field settings it is also possible to confirm the current
operation parameters of the unit.
Push buttons
Performing special actions (refrigerant charge, test run, etc.) and
making field settings (demand operation, low noise, etc.) happens by
way of operating the push buttons.
See also:
▪ "18.1.2Field setting components"[440]
▪ "18.1.3To access the field setting components"[441]
Mode 1 and 2
Mode Description
Mode 1
(monitoring
settings)
Mode1 can be used to monitor the current
situation of the outdoor unit. Some field setting
contents can be monitored as well.
Mode 2
(field settings)
Mode2 is used to change the field settings of
the system. Consulting the current field setting
value and changing the current field setting
value is possible.
In general, normal operation can be resumed
without special intervention after changing field
settings.
Some field settings are used for special
operation (e.g., one time operation, recovery/
vacuuming setting, manual adding refrigerant
setting, etc.). In such a case, it is required to
abort the special operation before normal
operation can restart. It will be indicated in
below explanations.
See also:
▪ "18.1.4To access mode 1 or 2"[441]
▪ "18.1.5To use mode 1"[441]
▪ "18.1.6To use mode 2"[441]
▪ "18.1.7Mode 1: monitoring settings"[442]
▪ "18.1.8Mode 2: field settings"[442]
18.1.2 Field setting components
Location of the 7‑segment displays, buttons and DIP switches:
a b
BS1 BS2
DS1 DS2
BS3
c
X27A
BS1 MODE: for changing the set mode
BS2 SET: for field setting
BS3 RETURN: for field setting
DS1, DS2 DIP switches
a 7-segment displays
b Push buttons
c DIP switches
