18 | Electrical installation
Installer and user reference guide
70
FXNA-A
VRV system air conditioner
4P785124-1 – 2024.09
6 Wrap the cables with the sealing material (accessory) to prevent water from
entering the unit. Seal all gaps to prevent small animals from entering the
system.
7 Reattach the service cover.

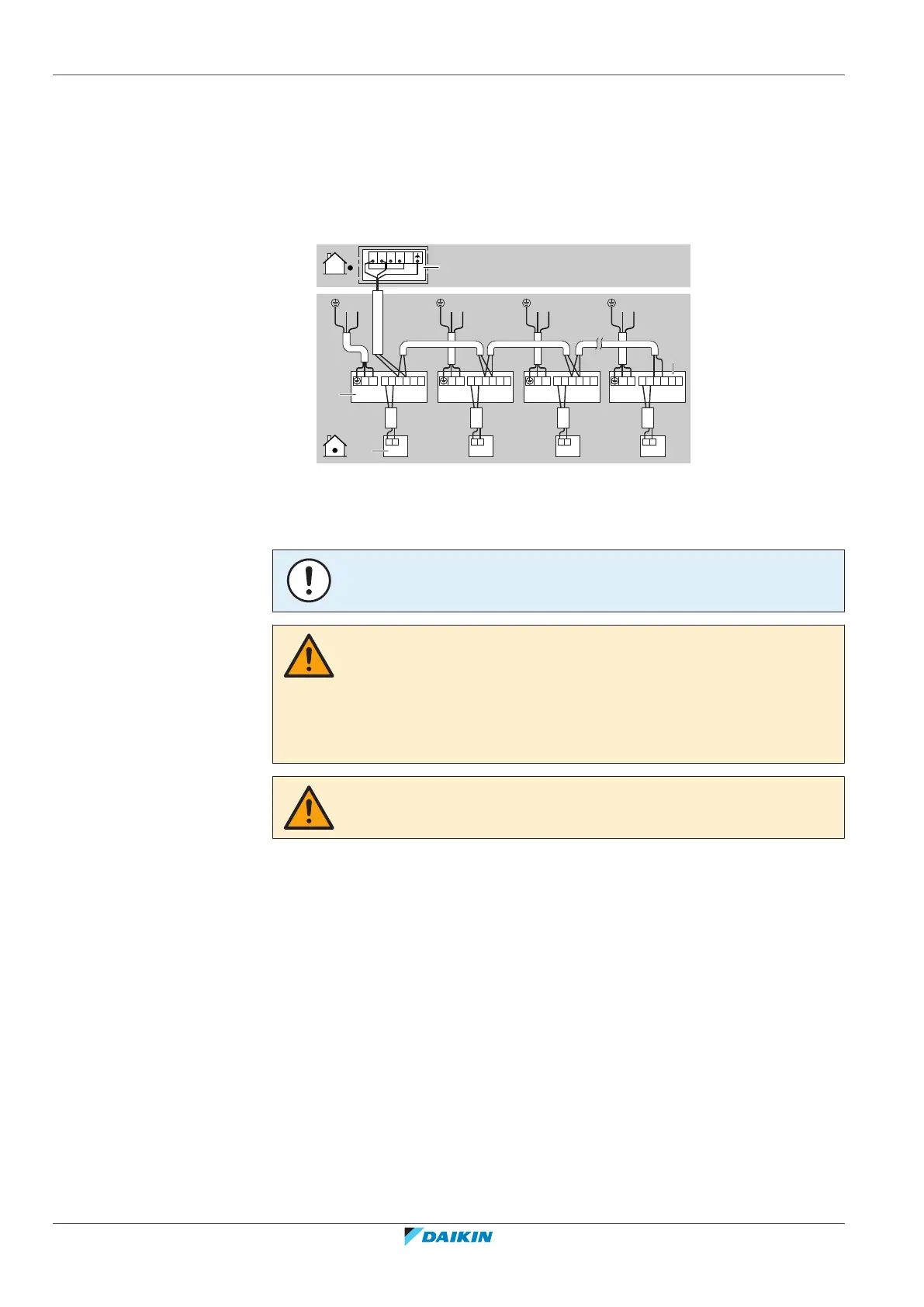

Complete system example
1 user interface controls 1 indoor unit.
LN LN LN
P
1
P
2
P
1
P
2
P
1
P
2
P
1
P
2
P
1
P
2
F
1
F
2
T
1
T
2
P
1
P
2
F
1
F
2
T
1
T
2
P
1
P
2
F
1
F
2
T
1
T
2
P
1
P
2
F
1
F
2
T
1
T
2
N L
d
c
b
LN
N L N L N L
TO OUT/D
TO IN/D
a
a Outdoor unit
b Indoor unit
c User interface
d Most downstream indoor unit
NOTICE
For the use of group control and related limitations refer to manual of outdoor unit.
CAUTION
▪ Each indoor unit has to be connected to a separate user interface. Only a safety
system compatible remote controller can be used as the user interface. See
technical data sheet for remote controller compatibility (e.g. BRC1H52/82*).
▪ The user interface has to be put in the same room as the indoor unit. For details,
please refer to the installation and operation manual of the user interface.
CAUTION
In case shielded wire is used, connect the shielding to the outdoor unit side only.
