18 | Electrical installation
Installer and user reference guide
69
FXNA-A
VRV system air conditioner
4P785124-1 – 2024.09
a
b
c
d
BA
f
g
f
e
g

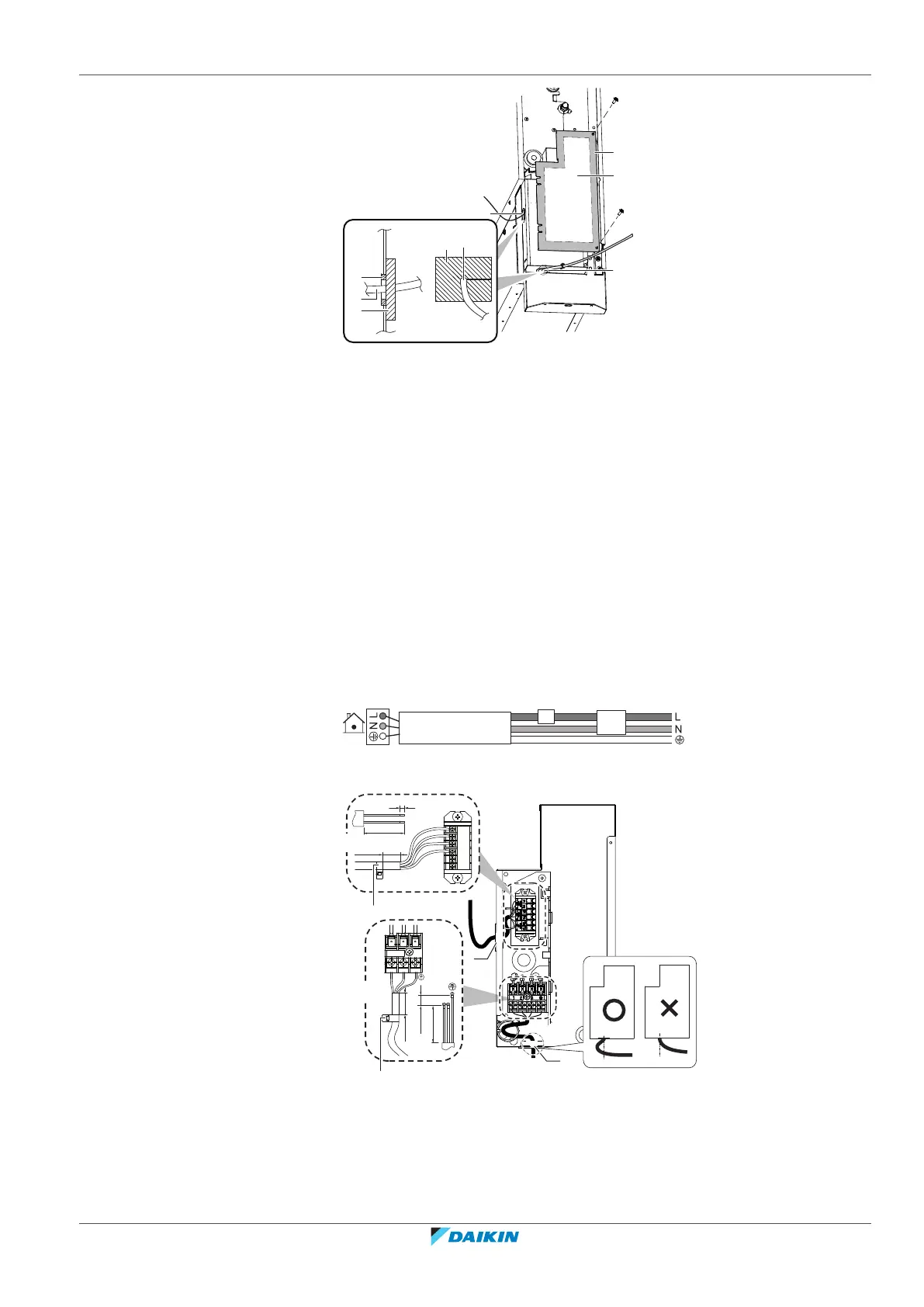

A Inside the unit
B Outside the unit
a Service cover
b Wiring diagram
c Connection of interconnection and user interface wiring
d Connection of power supply
e Opening for cables
f Wire
g Sealing material (accessory)
2 User interface cable: Route the cable through the frame, connect the cable to
the terminal block (symbols P1, P2).
3 Interconnection cable: Route the cable through the frame, connect the cable
to the terminal block (make sure the symbols F1, F2 match with the symbols
on the outdoor unit).
4 Power supply cable: Route the cable through the frame and connect the
cable to the terminal block (L, N, earth).
5 Plastic clamp for tie wrap: Pass tie wraps through the plastic clamps and
fasten to fix the cables.
a
b
a Circuit breaker
b Residual current device
L
N
10~15
70~90
10~20
d
c
10~15
70~90
7
P1P2 F1 F2
d
b
a
a
a Opening for cables
b Interconnection and user interface wiring
c Power supply wiring
d Large tie wrap (accessory)
X Not allowed
O Allowed
