16 | Unit installation
Installer and user reference guide
56
FXNA-A
VRV system air conditioner
4P785124-1 – 2024.09
Number of screws according to class
25~32 40~50 63
16 22 26

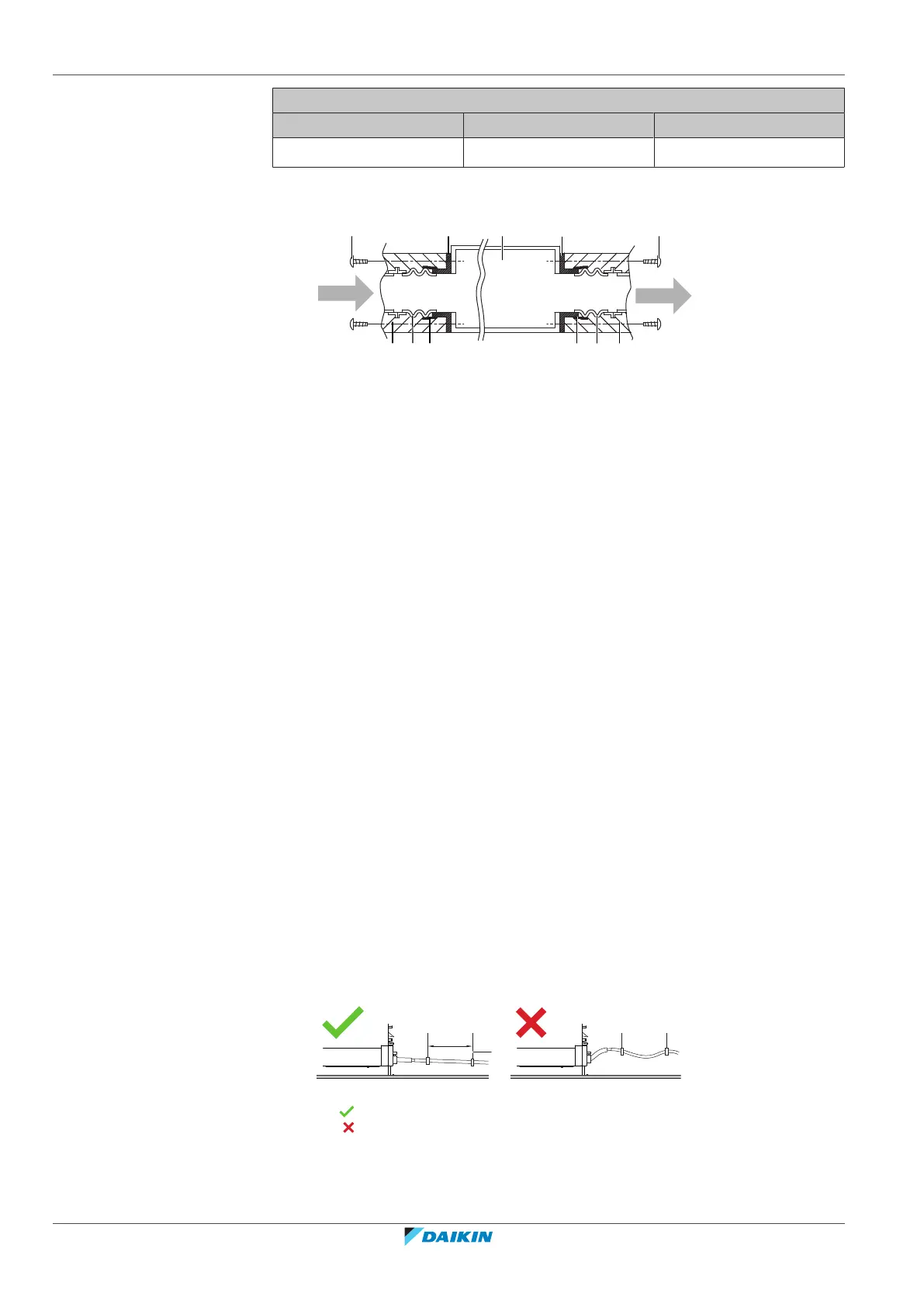

2 Air outlet side. Connect the canvas duct to the inside of the outlet side flange.
Connect the duct to the canvas duct.
a
b
c b a
ffe ed d
a Screws for duct flanges
For air inlet side: accessory
For air outlet side: on the unit
b Flange
For air inlet side: field supply
For air outlet side: on the unit
c Indoor unit
d Insulation (field supply)
e Canvas duct (field supply)
f Aluminium tape (field supply)
3 Wind aluminium tape around the flange and duct connection on both sides.
Make sure there are no air leaks at any other connection.
4 Insulate the duct to prevent condensation from forming. Use glass wool or
polyethylene foam 25mm thick.
▪ Filter. Be sure to attach an air filter inside the air passage on the air inlet side.
Use an air filter with dust collecting efficiency ≥50% (gravimetric method). The
included filter is not used when the duct is attached to air inlet side.
16.2.3 Guidelines when installing the drain piping
Make sure condensation water can be evacuated properly. This involves:
▪ General guidelines
▪ Connecting the drain piping to the indoor unit
▪ Checking for water leaks
General guidelines
▪ Pipe length. Keep drain piping as short as possible.
▪ Pipe size. Keep the pipe size equal to or greater than that of the connecting pipe
(vinyl pipe of 20mm nominal diameter and 26mm outer diameter).
▪ Slope. Make sure the drain piping slopes down (at least 1/100) to prevent air
from being trapped in the piping. Use hanging bars as shown.
1~1.5 m
a
a Hanging bar
Allowed
Not allowed
▪ Condensation. Take measures against condensation. Insulate the complete drain
piping in the building.
