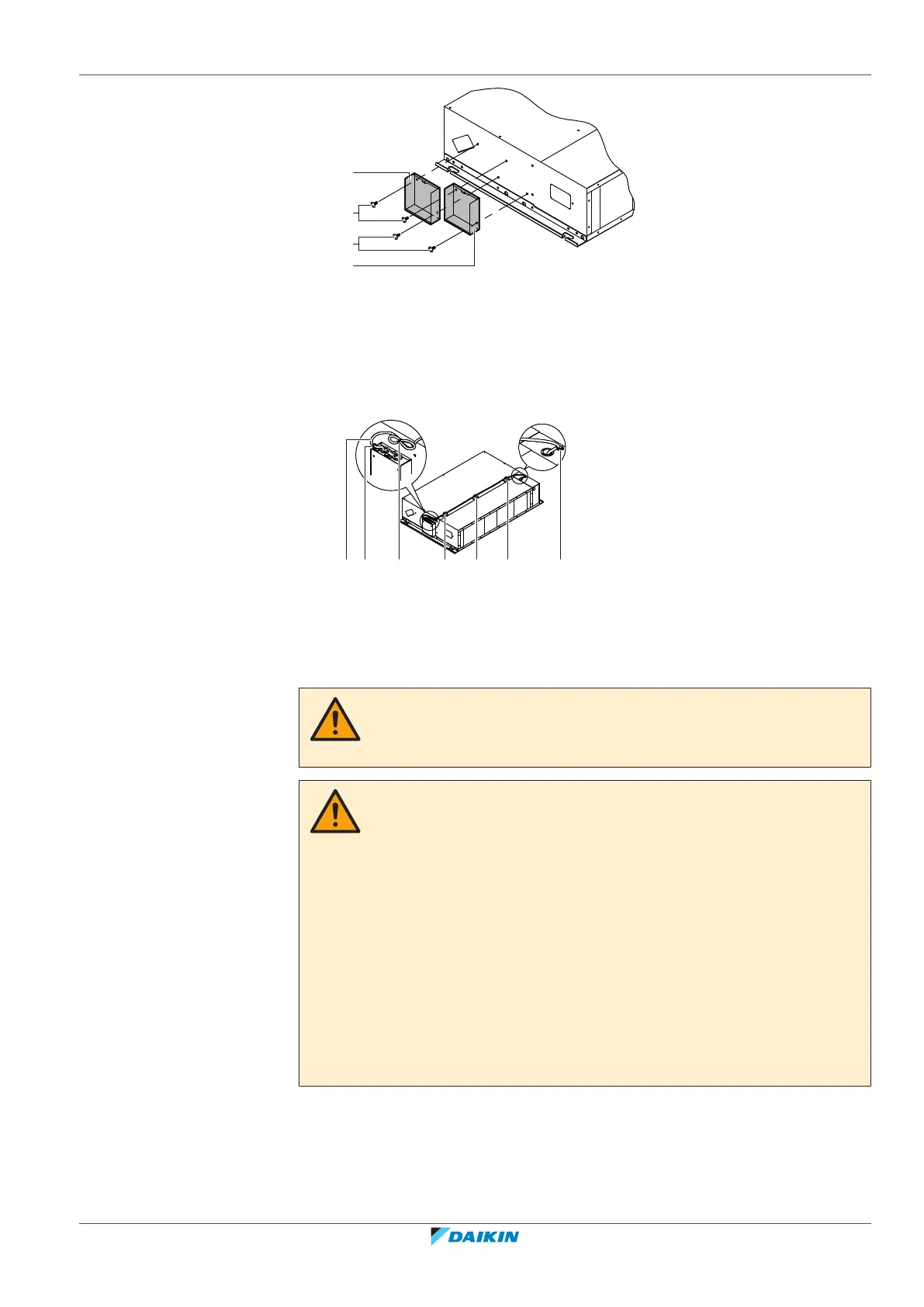

16 | Unit installation
Installer and user reference guide
55
FXNA-A
VRV system air conditioner
4P785124-1 – 2024.09
a
b
c
b
a Installation box lid for second PCB
b 2 screws (M4×16)
c Installation box lid for first PCB
Wiring installation for Installation box for optional PCB
1 Clamp wires by using the cord sticker (accessory of the installation box) and
the clamp (accessory of the installation box).
a b b c c c b
a Low current wiring
b Clamp
c Cord sticker
16.2.2 Guidelines when installing the ducting
WARNING
Do NOT install operating ignition sources (example: open flames, an operating gas
appliance or an operating electric heater) in the ductwork.
CAUTION
▪ Make sure the installation of the duct does NOT exceed the setting range of the
external static pressure for the unit. Refer to the technical datasheet of your
model for the setting range.
▪ Make sure to install the canvas duct so vibrations are NOT transmitted to the
duct or ceiling. Use a sound-absorbing material (insulation material) for the lining
of the duct and apply vibration insulation rubber to the hanging bolts.
▪ When welding, make sure NOT to spatter onto the drain pan or the air filter.
▪ If the metal duct passes through a metal lath, wire lath or metal plate of the
wooden structure, separate the duct and wall electrically.
▪ Install the outlet grille in a position where the airflow will not come into direct
contact with people.
▪ Do NOT use booster fans in the duct. Use the function to adjust the fan rate
setting automatically (see "20Configuration"[474]).
The ducting is to be field supplied.
1 Air inlet side. Connect the inlet side flange (field supply) to the indoor unit,
use screws from accessory (table below). Connect the canvas duct to the
inside of the inlet side flange. Connect the duct to the canvas duct.
