16 | Unit installation
Installer and user reference guide
54
FXNA-A
VRV system air conditioner
4P785124-1 – 2024.09

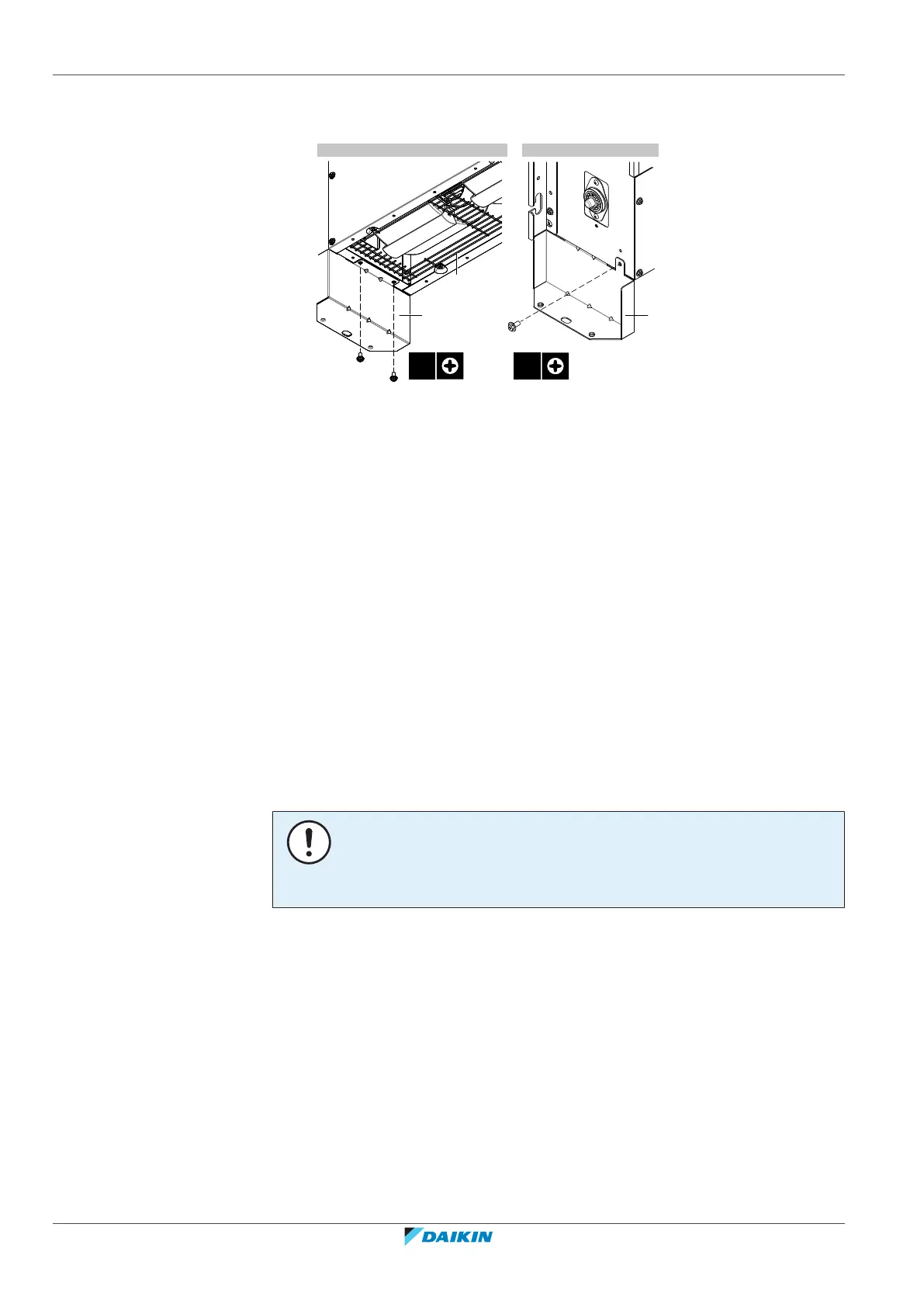

Removing the legs
If it is necessary to remove the legs, follow these instructions:
b
a
2×
1×
b
A
B
A Bottom view
B Side view
a Protective grille
b Leg
1 In case of bottom suction, remove the air filter.
2 Remove 4 screws (2 on each side) that hold both legs on the bottom side of
the unit.
3 Remove 2 screws (1 on each side) on the side of the unit.
4 In case of bottom suction, reattach the filter.
5 In case of front suction, reinstall 2 screws on the side of the unit.
Install the unit temporarily
1 Attach the hanger bracket to the suspension bolt.
2 Fix the unit securely.
3 Adjust the unit to fit between the walls.
4 Make sure the unit is level at all four corners using a level or a water-filled
vinyl tube.
5 Tighten the upper nut.
NOTICE
Do NOT install the unit tilted. Possible consequence: If the unit is tilted against the
direction of the condensate flow (the drain piping side is raised), the float switch
might malfunction and cause water to drip.
To install the Installation box for optional output PCB
Read also the installation manual of the Installation box for optional output PCB
and the installation manual of the adapter besides this chapter, before installation
and follow the instructions.
Attaching the installation box’s lid
1 Insert 2 spacers into the holes in the thermal insulation material affixed to the
installation box lid.
2 Fix the installation box lid with inserted spacers on the indoor unit using 2
screws (accessory of the installation box).
3 If installing 2 adapter PCBs, install the second installation box.
