16 | Unit installation
Installer and user reference guide
57
FXNA-A
VRV system air conditioner
4P785124-1 – 2024.09

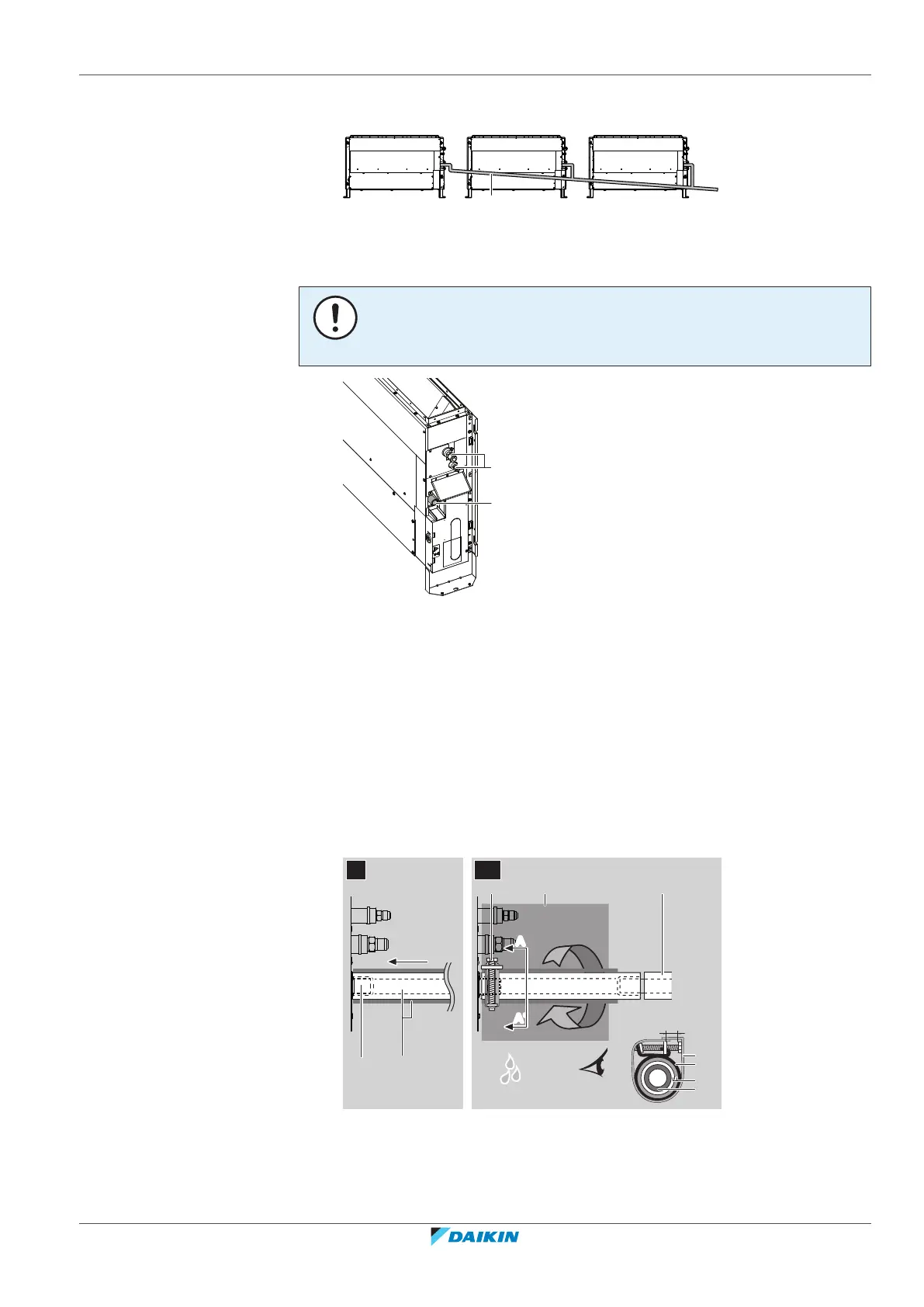

▪ Combining drain pipes. You can combine drain pipes. Make sure to use drain
pipes and T-joints with the correct gauge for the operating capacity of the units.
a
a Central drain piping (with slope of at least 1/100)
To connect the drain piping to the indoor unit
NOTICE
Incorrect connection of the drain hose might cause leaks, and damage the
installation space and surroundings.
a
b
a Refrigerant pipes
b Drain pipe connection
Drain piping connection
1 Push the drain hose as far as possible over the drain pipe connection.
2 Tighten the metal clamp until the screw head is less than 4 mm from the
metal clamp part.
3 Check for water leaks (see "To check for water leaks"[458]).
4 Wind the large sealing pad (= insulation) around the metal clamp and drain
hose, and fix it with large tie wraps (accessory).
5 Connect the drain piping to the drain hose.
≤4 mm
A-A'
b
a
d
c
3
1
2~61
4
d
A
A'
A
A'
e
5
2
c
ba
a Drain pipe connection (attached to the unit)
b Drain hose (accessory)
c Metal clamp (accessory)
d Large sealing pad (accessory)
e Drain piping (field supply)
