16 | Unit installation
Installer and user reference guide
52
FXNA-A
VRV system air conditioner
4P785124-1 – 2024.09
c Air inlet
d Air outlet
2 Remove one leg on the opposite side of the electronic component box.
3 Reattach the removed suction cover to the bottom side.
4 Attach the protective grille to the front side.
5 Reattach the leg if necessary.

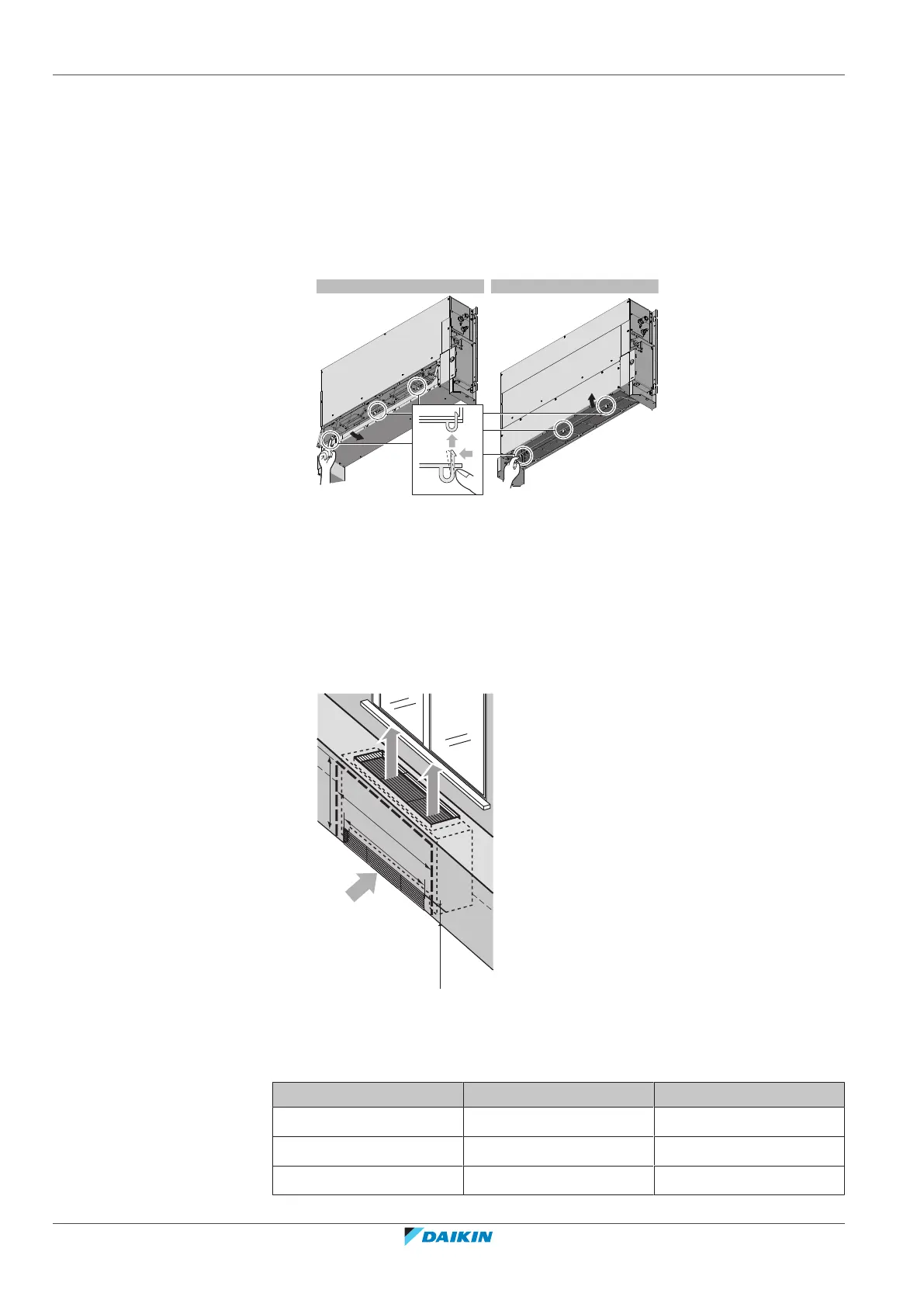

6 Attach the air filter (accessory) by pushing down the hooks (2 hooks for 20, 25,
32 class, 3 hooks for 40, 50, 63 class).
A
B
a
b
2
1
A Front suction
B Bottom suction
a Main unit
b Filter
Installation options
For this unit, there are 2 options for the installation: floor-standing and wall-
mounted.
Floor-standing installation
B
A
a
a
c
760
100
≤b≤200
A Maintenance area width
B Air inlet grille width
a Air outlet direction
b Air inlet grille height
c Air inlet direction
Class A(mm) B(mm)
20, 25, 32 1350 660
40, 50 1550 860
63 1750 1060
