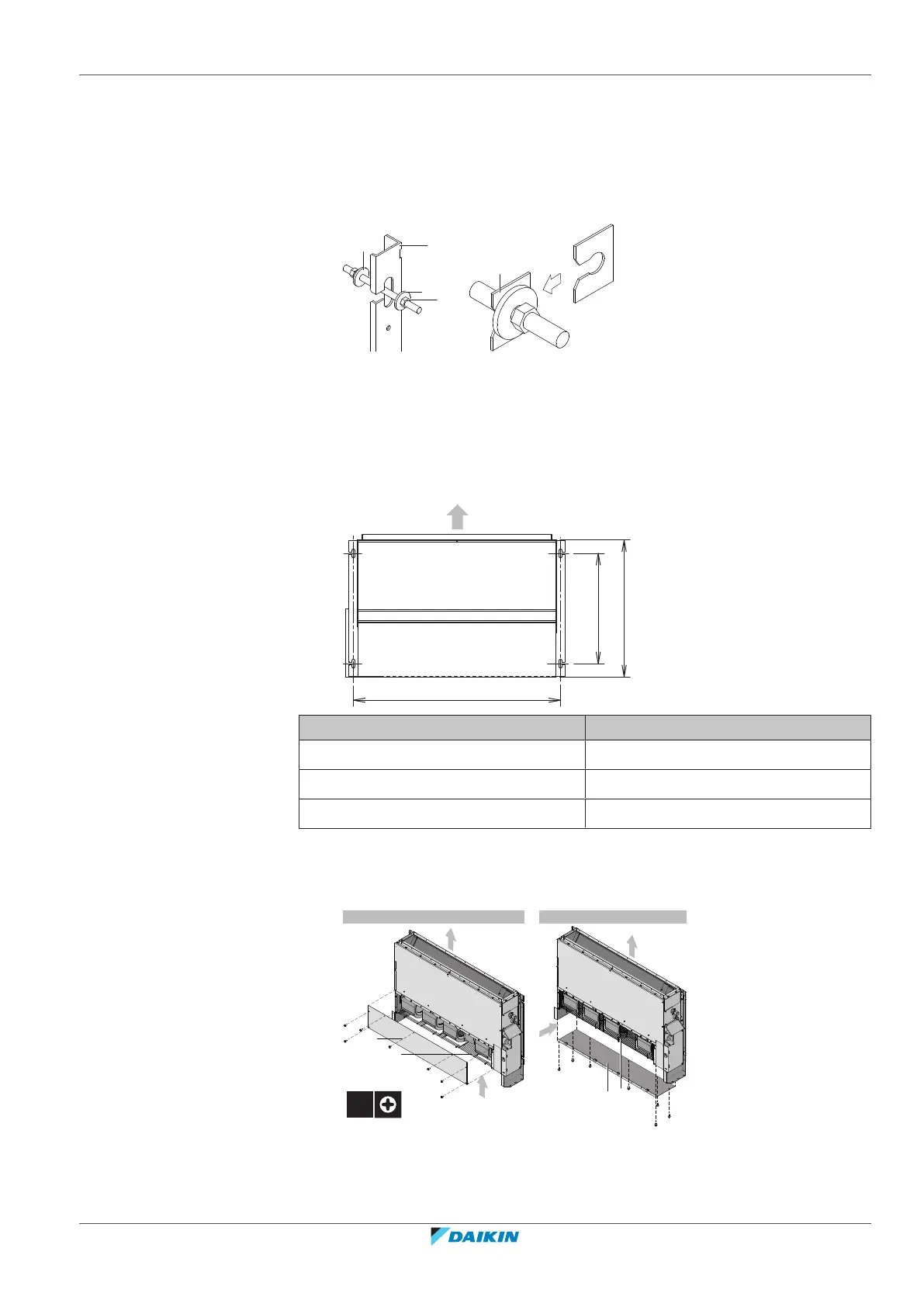

16 | Unit installation
Installer and user reference guide
51
FXNA-A
VRV system air conditioner
4P785124-1 – 2024.09
▪ Wall or floor strength. Check whether the wall or the floor is strong enough to
support the weight of the unit. If there is a risk, reinforce the wall or the floor
before installing the unit.
▪ Suspension bolts. Use W3/8 M10 suspension bolts for installation. Attach the
hanger bracket to the suspension bolt. Fix it securely using a nut and washer
from the upper and lower sides of the hanger bracket.
A
a
a
b
c
B
d
A Securing the hanger bracket
B Securing the washers
a Washer (accessory)
b Hanger bracket
c1 Nut (field supply)
c2 Double nut (field supply)
d Washer fixing plate (accessory)
▪ Suspension bolt pitch for fastening to the wall:
A
618
500
Class A(mm)
20, 25, 32 740
40, 50 940
63 1140
▪ Changeover of suction cover and air filter (accessory)
1 In case of front suction, remove the protective grille and the suction cover
from the front side.
7×
c
b
d
d
a
a
c
b
A B
A Removing the suction cover
B Reattaching the suction cover
a Suction cover
b Protective grille
