24
Technician - Electrical connections

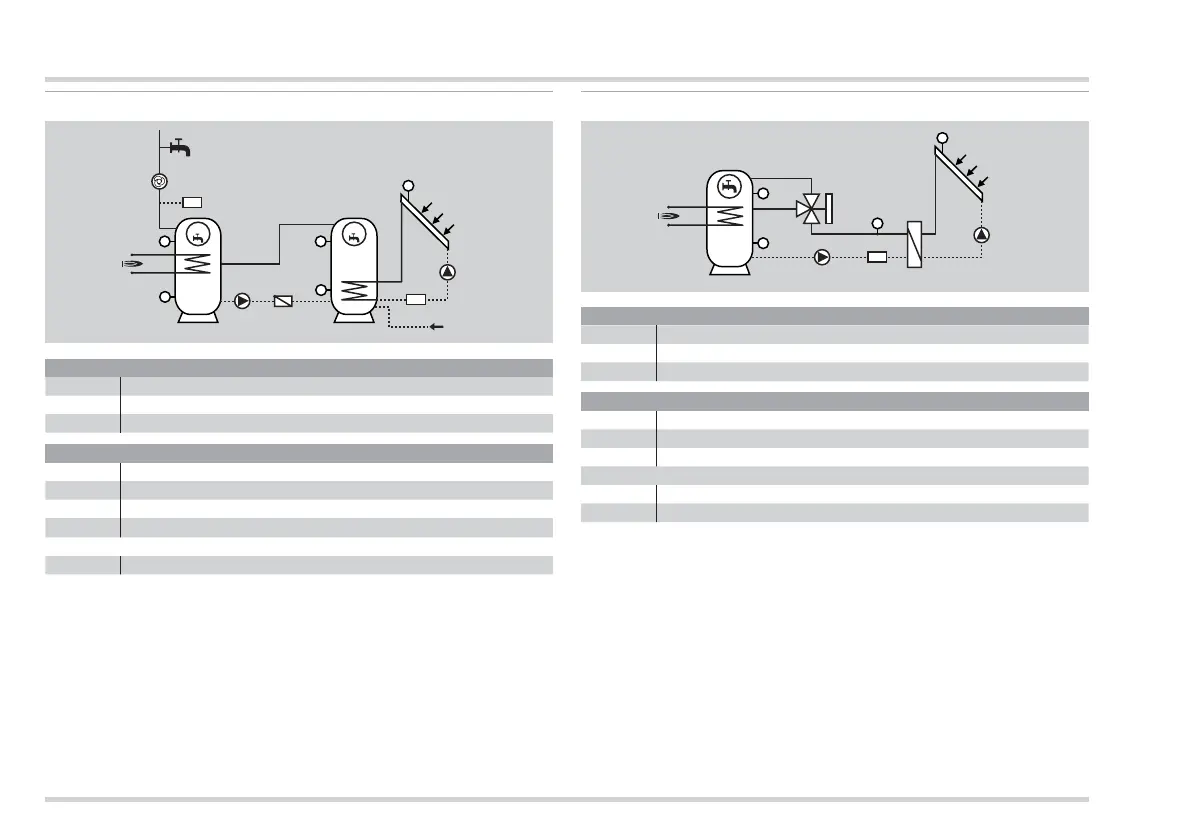

System 10 (1 collector, 2 storage tanks, refeeding pump)
F1
A1
A2
F3
F4
F5
F2
A3
A3
21
Outputs
A1 Collector pump
A2 Refeeding pump on storage tank 2
A3 Additional relay, function can be freely assigned
Inputs
F1 Collector sensor
F2 Tank bottom 2 sensor
F3 Tank top 1 sensor
F4 Tank top 1 sensor
Optional
F5 Tank top 2 sensor
Switching conditions A1
ON: Temp
F1
- Temp
F4
> P30 and Temp
F1
> P40,
OFF: Temp
F1
- Temp
F4
< P31 or Temp
F1
< P41.
Switching conditions A2
ON: Temp
F3
- Temp
F2
≥ P33 and Temp
F5
(Temp
F2
) ≤ P51 - 5 K,
OFF: Temp
F3
- Temp
F2
< P33 or Temp
F5
(Temp
F2
) > P51.
System 11 (1 collector, 1 storage tank, 2 feeding areas)
F1
A1
A2
F3
F4
F2
A1
A3
Outputs
A1 Collector pump
A2 Switch-over valve – central feeding area
A3 Additional relay, function can be freely assigned
Inputs
F1 Collector sensor
F3 Tank bottom sensor
F4 Tank top sensor
Optional
F2 Return sensor for heat volume metering
F5 Additional sensor
Switching conditions A1
ON: Temp
F1
- Temp
F4
> P30 and Temp
F1
> P40,
OFF: Temp
F1
- Temp
F4
< P31 or Temp
F1
< P41.
Switching conditions A2
ON: A1 = ON
and Temp
F2
- Temp
F3
> P32 and Temp
F3
< P50 - P32,
OFF: A1 = OFF
or Temp
F2
- Temp
F3
< P33 or Temp
F3
> P50 - P33.
