23
Technician - Electrical connections

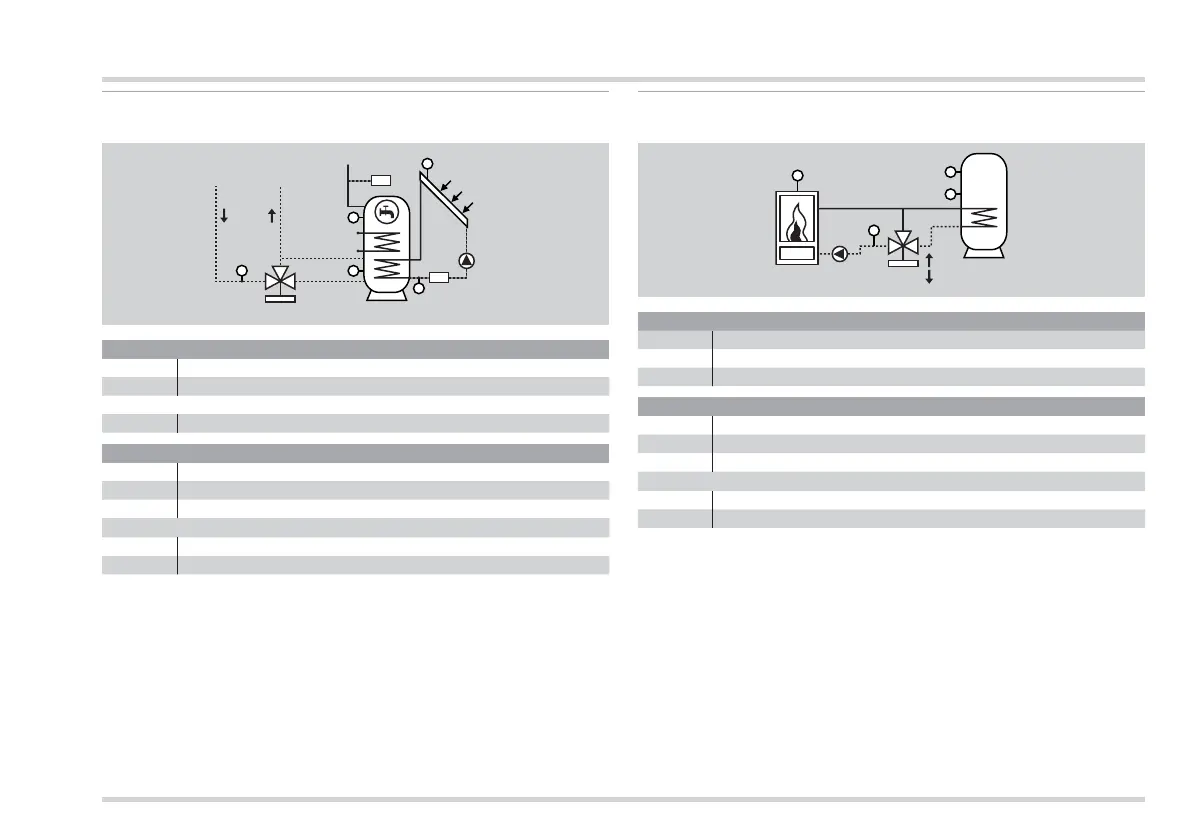

System 8 (1 collector, 1 storage tank, return temperature
increase)
F1
F2
A1
F3
F4
F5
A2
Outputs
A1 Collector pump
A2 Switch-over valve – heating return flow via storage tank
Optional
A3 Additional relay, function can be freely assigned
Inputs
F1 Collector sensor
F4 Tank bottom sensor
F5 Return temperature increase sensor
Optional
F2 Return sensor for heat volume metering
F4 Tank bottom sensor
Switching conditions A1
ON: Temp
F1
- Temp
F4
> P30 and Temp
F1
> P40,
OFF: Temp
F1
- Temp
F4
< P31 or Temp
F1
< P41.
Switching conditions A2
ON: Temp
F4
- Temp
F5
> P32,
OFF: Temp
F4
- Temp
F5
< P33.
System 9 (1 solid fuel boiler, 1 storage tank, return
temperature increase with mixer)
F1
A1
F3
F4
F5
A2
A3
Outputs
A1 Feeding pump for solid fuel boiler
A2 Return temperature increase mixer OPEN
A3 Return temperature increase mixer CLOSED
Inputs
F1 Solid fuel boiler
F4 Tank bottom sensor
F5 Return temperature increase sensor
Optional
F2 Additional sensor
F4 Tank top sensor
Switching conditions A1
ON: Temp
F1
- Temp
F4
> P30 and Temp
F1
> P43 + 5 K,
OFF: Temp
F1
- Temp
F4
< P31 or Temp
F1
< P43.
Switching conditions A2
OPEN: Clocked according to mixer control at Temp
F5
> P57 +1K.
Switching conditions A3
CLOSED: Clocked according to mixer control at Temp
F5
<P57 - 1 K.
