Je bekijkt pagina 18 van 52
18
Technician - Electrical connections

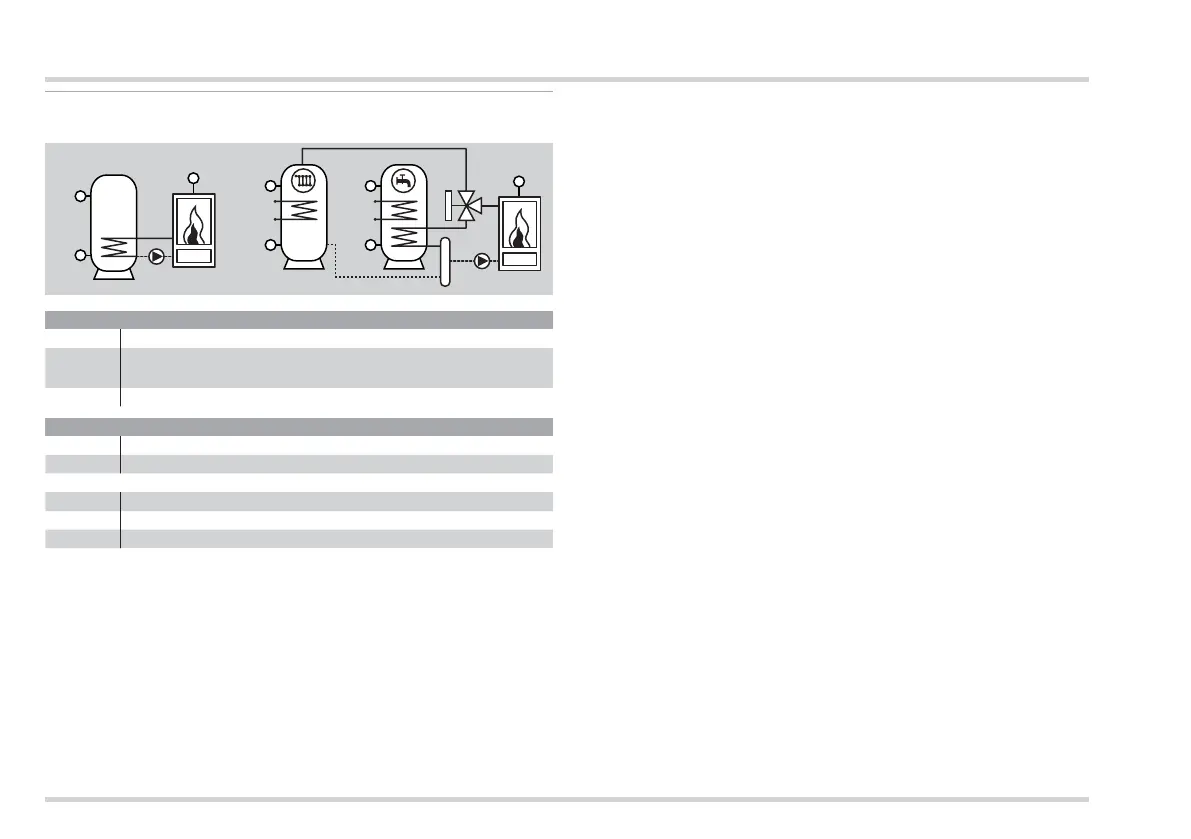

System 2 (1 solid fuel boiler, 1 storage tank or 1 solid fuel
boiler, 2 storage tanks with switch-over valve)
F1
A1
F3
F4
F1
A1
(F3)(F5)
F4
F2
ON
OFF
Outputs
A1 Feeding pump for solid fuel boiler
A2
Switch-over valve to storage tank 2 (if F2 is installed)
or additional relay, function can be freely assigned
A3 Additional relay, function can be freely assigned
Inputs
F1 Solid fuel boiler sensor
F4 Tank bottom sensor
Optional
F2 Tank bottom 2 sensor
F3 Tank top 1 sensor
F5 Tank top 2 sensor
Switching conditions A1
ON: Temp
F1
- Temp
F4
> P30 and Temp
F1
> P43 + 5 K
or
Temp
F1
- Temp
F2
> P32 and Temp
F1
> P43 + 5 K,
OFF: Temp
F1
- Temp
F4
< P31 and Temp
F1
- TempF2 < P33
or
Temp
F1
< P43.
Switching conditions A2
ON: A1 = ON
and Temp
F3
(Temp
F4
) > P50
or Temp
F1
- Temp
F4
< P31
OFF: A1 = OFF
or Temp
F3
(Temp
F4
) < P50 - 5 K
or Temp
F1
- Temp
F4
> P30.
