17

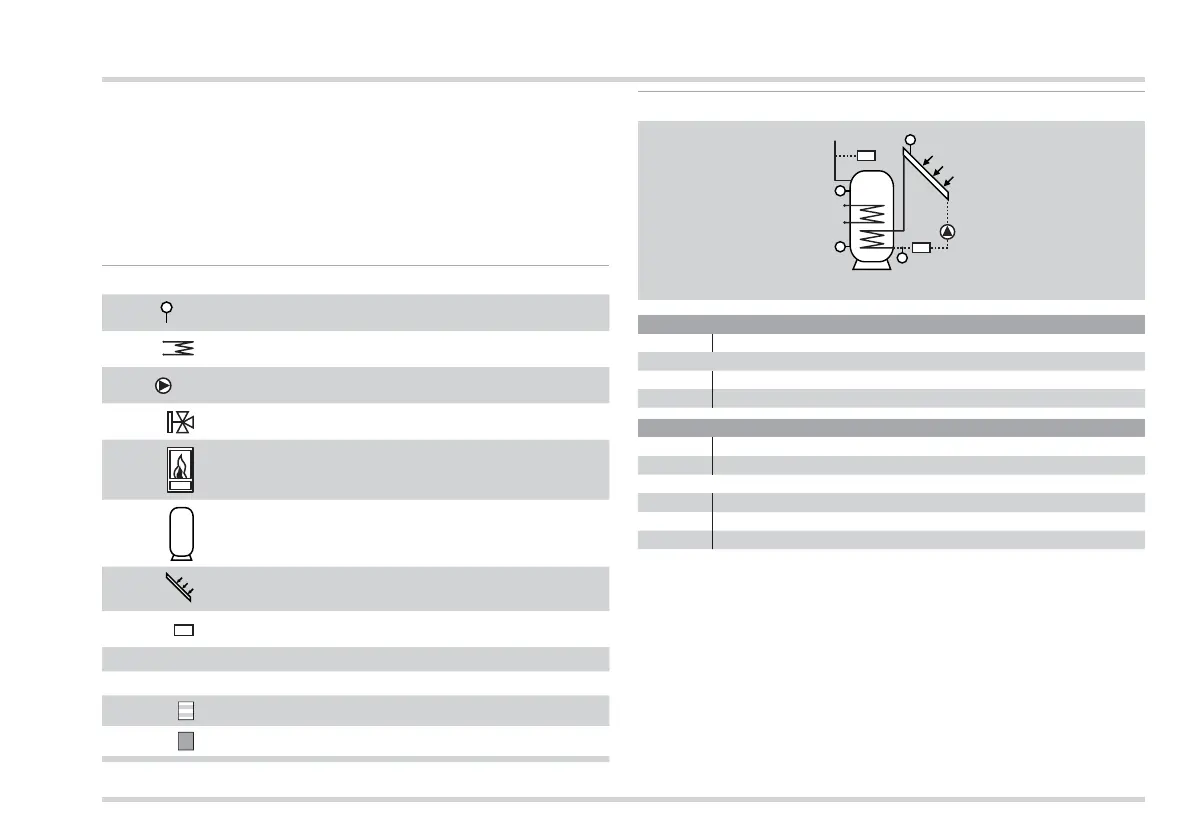

Technician - Electrical connections
System schemes
With respect to the system schemes, please note that the respec-
tive control functions may be superposed by protection functions.
An active collector protection function (P45) or storage tank recooling
(P46) can therefore also trigger collector pump operation, see page
40 (P45 Collector safety temperature) and 40 (P46 Storage
tank recooling switching threshold).
Key
F1
Sensor F1
Heat exchanger
A1
Pump A1
Switch-over valve
Solid fuel boiler
Storage tank
Collector
Pulse generator (e.g. volume flow counter)
P30 Parameter 30
TempF1 Temperature at sensor 1
Input and output of safety power circuit
Input and output 24 V=
System 1 (1 collector, 1 buffer storage tank)
F1
(F2)
A1
(F3)
F4
Outputs
A1 Collector pump
Optional
A2 Additional relay, function can be freely assigned
A3 Additional relay, function can be freely assigned
Inputs
F1 Collector sensor
F4 Tank bottom sensor
Optional
F2 Return sensor for heat volume metering
F3 Tank top sensor
F5 Additional sensor
Switching conditions A1
ON: Temp
F1
- Temp
F4
> P30 and Temp
F1
> P40,
OFF: Temp
F1
- Temp
F4
< P31 or Temp
F1
< P41.
