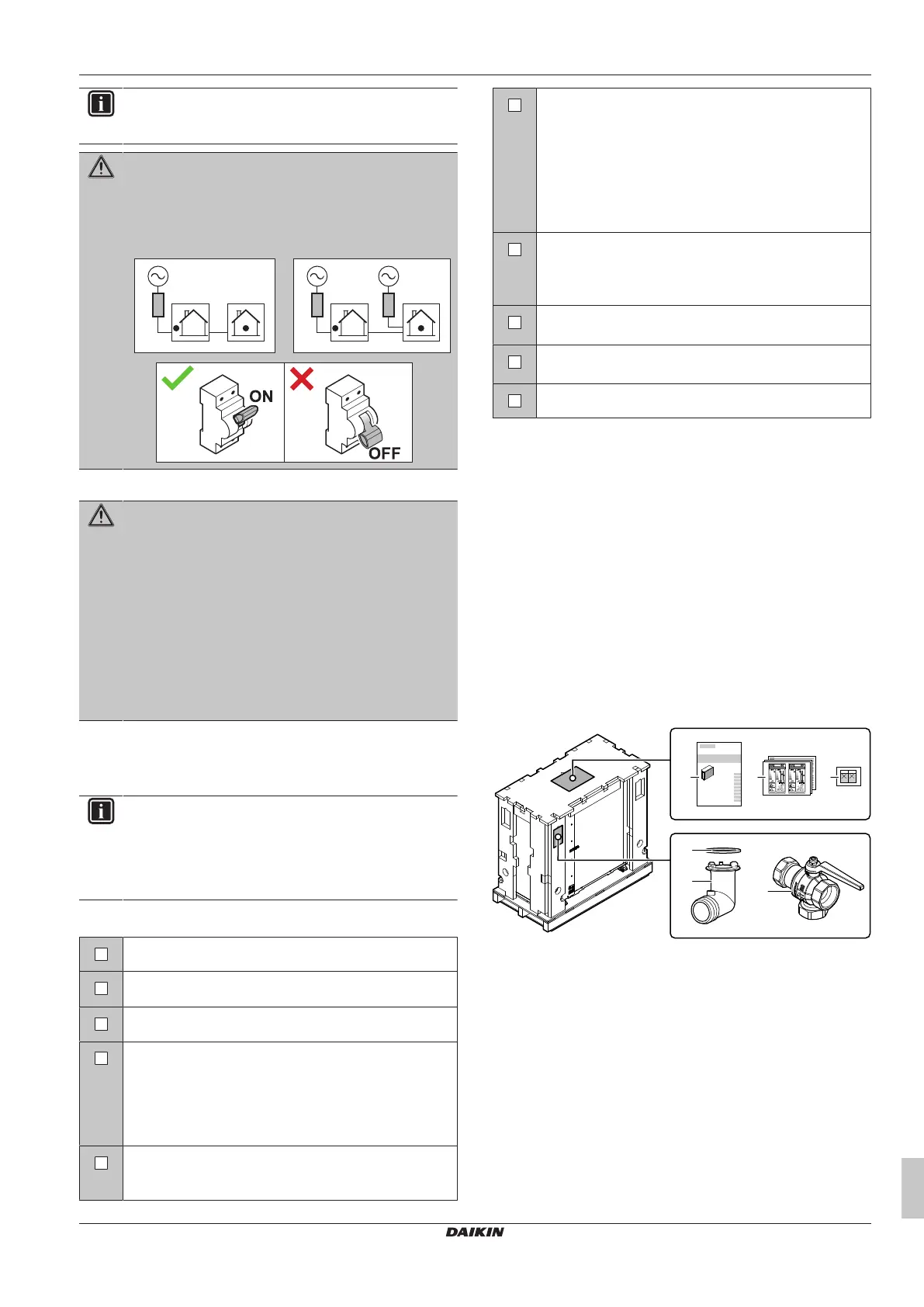

3 About the box
Installation manual
7
EPSK06~14A
Daikin Altherma 4 H
4P773384-1 – 2024.08
INFORMATION
For details on the fuse ratings, the fuse types and the
circuit breaker ratings, see "6Electrical installation"[412].
WARNING
After commissioning, do NOT turn OFF the circuit breakers
(c) to the units so that the protection remains activated. In
case of normal kWh rate power supply (a), there is one
circuit breaker. In case of preferential kWh rate power
supply (b), there are two.
a b
c c c
c
Commissioning (see "7Starting up the outdoor unit"[414])
WARNING
Do NOT open the stop valve of the outdoor unit's
refrigerant vessel until instructed by the user interface of
the indoor unit.
For safe transportation, all refrigerant is stored in the
refrigerant vessel of the outdoor unit. During
commissioning, when performing the unlocking procedure
of the outdoor unit (via the e-Care app and the user
interface of the indoor unit), the stop valve of the
refrigerant vessel must be fully opened (when instructed by
the user interface) and remain open.
For more information, see the indoor unit installation
manual.
2.1 Safety checklist before work on
R290 units
INFORMATION
▪ For a more detailed description of the safety items in
this checklist, see the General Safety Precautions.
▪ For more information about "Systems using R290
refrigerant", see the dedicated Service Manual
ESIE22-02 (available on https://my.daikin.eu).
The outdoor unit contains R290 refrigerant. Before starting work on
this unit, check the following safety items:
Work permit obtained if required.
All persons involved have been trained and are wearing/
carrying the required personal protective equipment.
Work zone cordoned off, CAUTION signs installed.
Ignition sources removed
▪ Remove power tools, computers, cell phones and
other potential ignition sources that can cause sparks
from the work area.
▪ Take protective measures to prevent static discharge,
for example grounding and antistatic clothing.
Suitable tooling and work materials available
▪ Including ATEX tooling (explosion proof), sufficient
nitrogen and required spare parts.
Check for the presence of an explosive atmosphere by
placing a personal gas monitoring system on the floor,
near the unit.
▪ Suitable for R290
▪ Calibrated
▪ Operation test
▪ Alarm thresholds
▪ Battery charged
Sufficient ventilation
▪ Place a portable ventilation unit to create sufficient
ventilation.
▪ The ventilation unit must be explosion proof.
Fire extinguisher at hand
▪ ABC dry powder or CO₂ extinguisher, minimal 2kg.
Disconnect and secure the unit from the power supply.
▪ Place lockout-tagout (LOTO).
Perform a Last Minute Risk Assessment (LMRA).
3 About the box
Keep the following in mind:
▪ At delivery, the unit MUST be checked for damage and
completeness. Any damage or missing parts MUST be reported
immediately to the claims agent of the carrier.
▪ Bring the packed unit as close as possible to its final installation
position to prevent damage during transport.
▪ Prepare in advance the path along which you want to bring the
unit to its final installation position.
3.1 Outdoor unit
3.1.1 To remove the accessories from the
outdoor unit
d
e
f
a
b
ENERG
IJAY
IAIE
ENERG
IJAY
IAIE
c
a Installation manual – Outdoor unit
b Energy label
c "Do NOT turn OFF the circuit breaker" stickers
d O-ring for drain socket
e Drain socket
f Shut-off valve (with integrated filter and check valve)
