DXS-3130-28-P Layer 3 Stackable Managed Switch Hardware Installation Guide
21

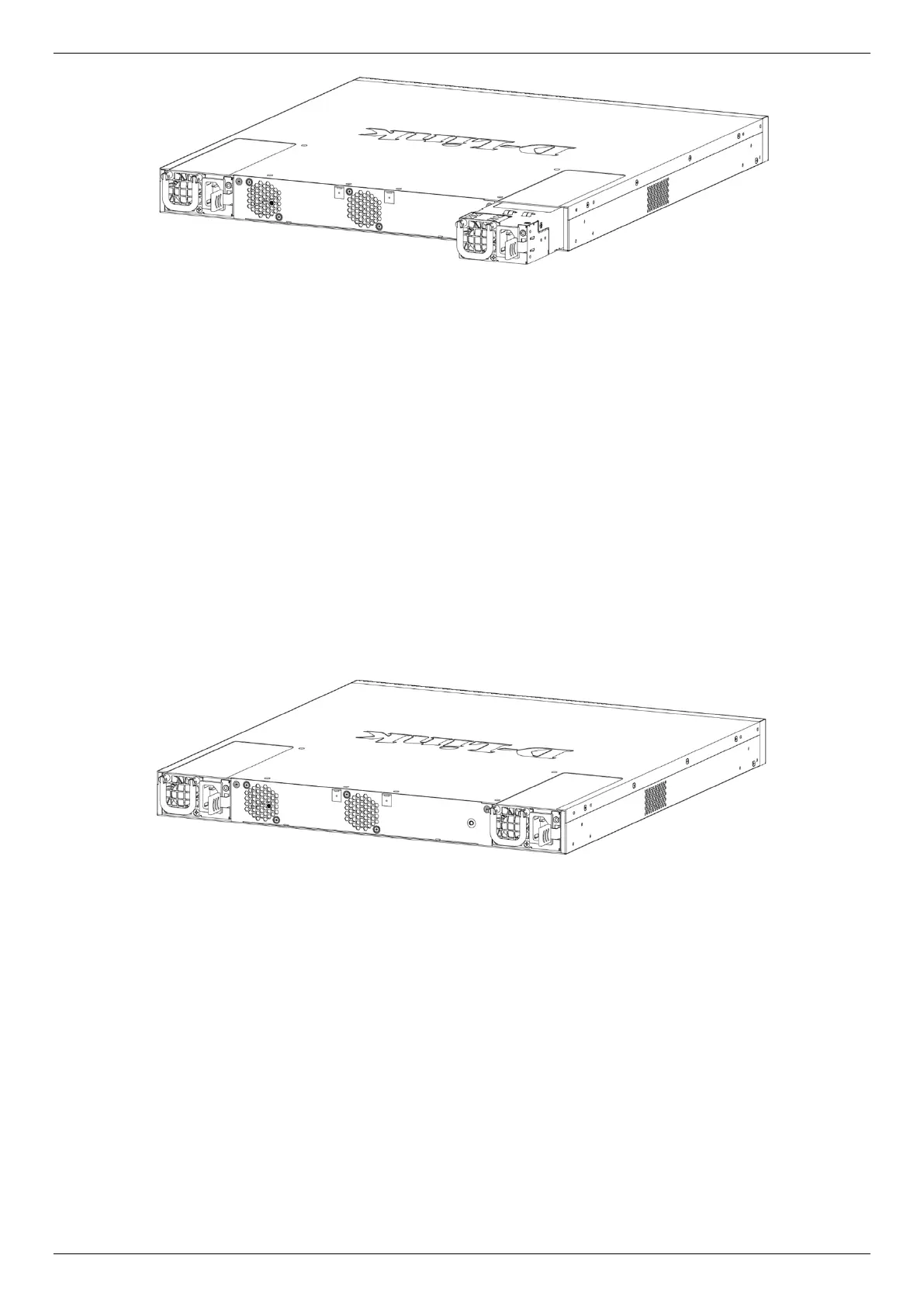

Figure 3-5 Installing an AC Power Supply Module
1. Remove the AC power cord and then press the release clip inwards to remove an existing AC PSU module.
2. Gently pull the AC PSU module out of the PSU module slot.
3. Insert a new AC PSU module into the PSU module slot until its release clip securely clicks into place.
4. Plug one end of the AC power cord into the AC power socket on the AC PSU module and the other end into a
properly grounded AC power source outlet.
The Switch will automatically receive power and adjust its power settings to adapt to a voltage supply within the
100~240VAC range at 47~63Hz.
Figure 3-6 Installed AC Power Supply Module
You can install another AC PSU module to the other PSU module slot. When one AC PSU fails, the other AC PSU will
immediately and automatically provide AC power to the Switch.
Installing DC PSU Modules
D-Link DXS-3130-28P switches support hot-swappable DC PSU modules that you can remove and insert a PSU module
when your switch is powered on and in operation. This feature is designed to further ensure and enhance the reliability
of your switch.
When an existing DC PSU module needs to be replaced or an additional DC PSU module needs to be installed, it is
important to know the proper installation of the DC PSU module.
