11

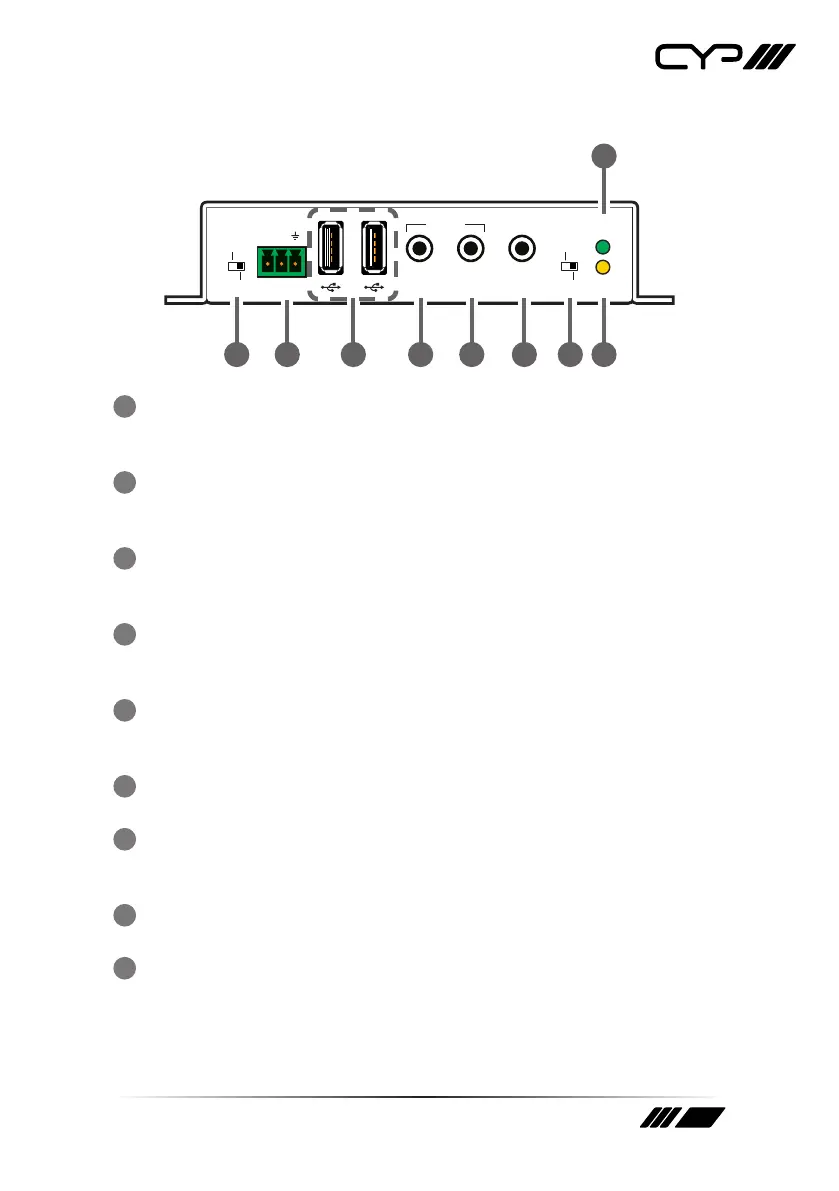

6.3 Front Panel (Receiver)
F/W
STD
RS-232
LINE
MIC LINK
POWER
LINE MIC
OUT IN IN
TX RX
PUV-2200PL-RX
1 2 3 4 5 6 7 9
8
1
F/W & STD Switch: Move this switch to toggle the RS-232 port’s
functionality between rmware update and RS-232 bypass mode. The
default setting is “STD” (RS-232 Bypass).
2
RS-232 3-pin Terminal Block: Connect to a PC, laptop, or serial con-
trollable device with a 3-pin adapter cable for the extension of
RS-232 signals between both ends of the HDBaseT connection.
3
USB 2.0 Ports (Type-A): Connect directly to standard USB devices
such as a mouse, keyboard, or ash drive to extend their USB function-
ality to the USB (Type-B) host port on the connected transmitter.
4
LINE IN Port: Connect to the analogue audio output of a device such
as a media player or game console. Audio is sent to the analogue
audio output on the connected compatible transmitter.
5
LINE OUT Port: Connect to powered speakers or an amplier for ana-
logue audio output. Audio is sourced from the analogue audio input
on the connected compatible transmitter.
6
MIC IN Port: Connect to a standard unpowered microphone using a
3.5mm plug.
7
LINE & MIC Switch: Move this switch to toggle the analogue audio
source to send to the other end of the HDBaseT connection between
LINE IN or MIC IN. The default setting is “LINE”.
8
POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
9
LINK LED: This LED will illuminate solidly when a live connection with
a compatible receiver is active.
