10

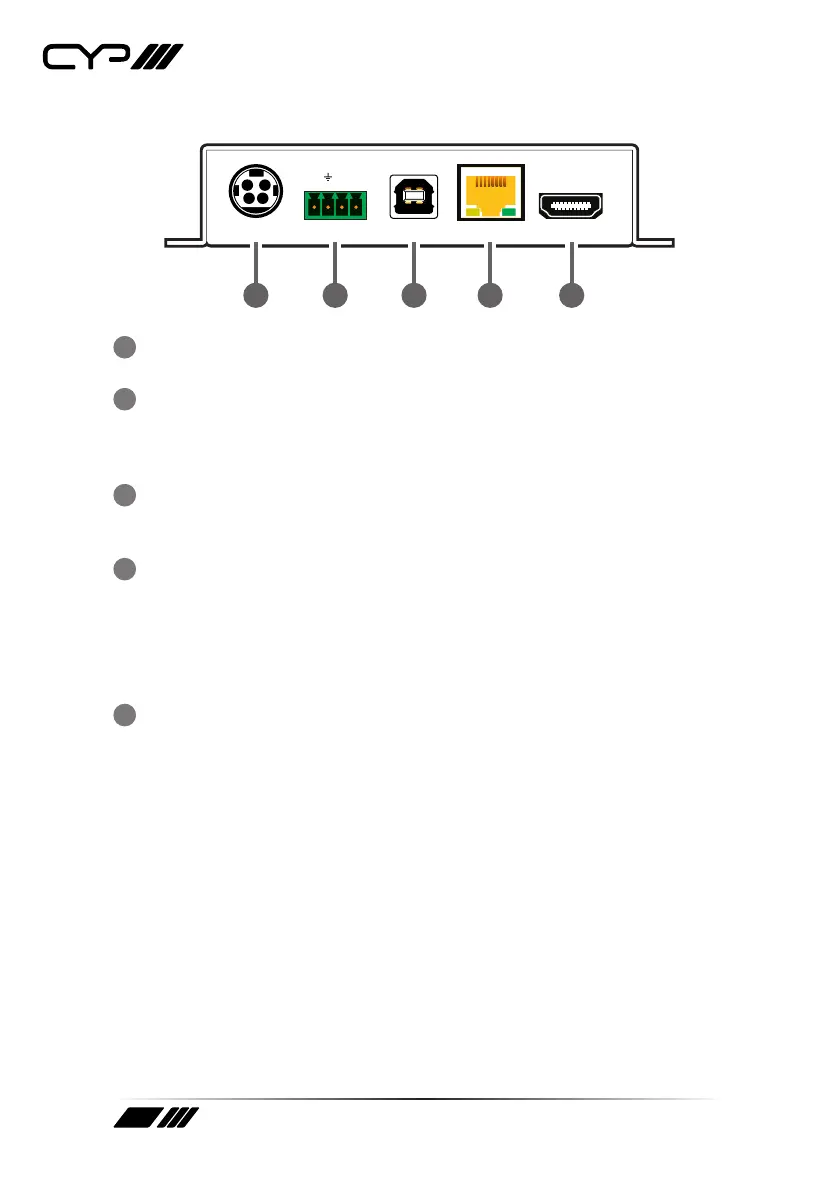

6.2 Rear Panel (Transmitter)
TX PWR
IR USBDC 24V CAT5e/6/7 OUT HDMI IN
RX
1 2
3
4 5
1
DC 24V: Plug the 24V DC power adapter into this port and connect it
to an AC wall outlet for power.
2
IR 4-pin Terminal Block (In/Out): Connect to both an IR Blaster and
Extender using a 4-pin Y-adapter cable to transmit and receive IR con-
trol signals and extend them to devices connected to the other end of
the HDBaseT connection.
3
USB 2.0 Port (Type-B): Connect directly to a standard USB host such
as a PC or laptop to extend their USB functionality to all currently con-
nected USB devices on both ends of the HDBaseT connection.
4
CAT5e/6/7 OUT Port: Connect to a compatible HDBaseT receiver with
a single Cat.6A/7 cable for extension of all data signals. PoH will also
be supplied to a connected compatible PD receiver.
Note: The PoH function is designed for powering compatible receiver units
only. Non-PoH receivers will need their own power supply. Receivers from
other brands may not be compatible.
5
HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box.
