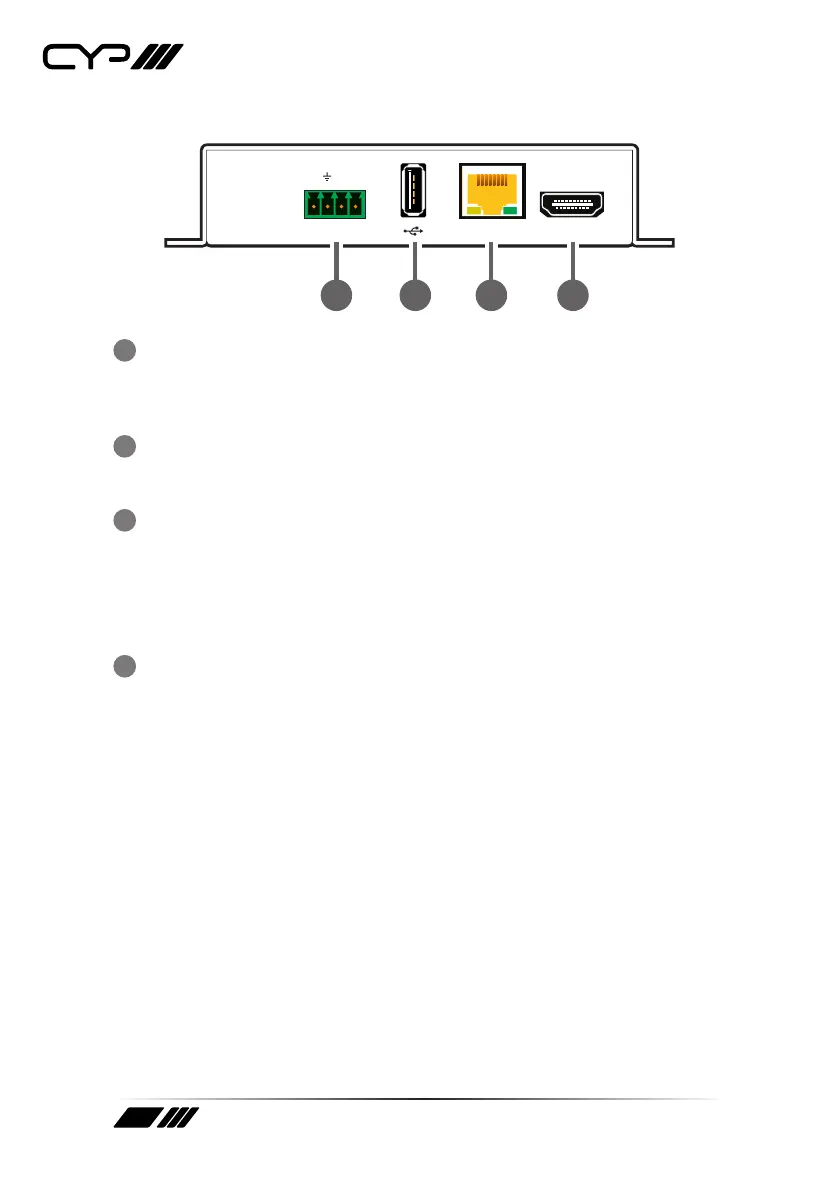

6.4 Rear Panel (Receiver)
TX PWR
IR CAT5e/6/7 IN HDMI OUT
RX
1
2
3 4
1
IR 4-pin Terminal Block (In/Out): Connect to both an IR Blaster and
Extender using a 4-pin Y-adapter cable to transmit and receive IR con-
trol signals and extend them to devices connected to the other end of
the HDBaseT connection.
2
USB 2.0 Port (Type-A): Connect directly to a standard USB device
such as a mouse, keyboard, or ash drive to extend their USB function-
ality to the USB (Type-B) host port on the connected transmitter.
3
CAT5e/6/7 IN Port: Connect to a compatible HDBaseT transmitter
with a single Cat.6A/7 cable for extension of all data signals. Power via
PoH will also be supplied to this unit when connected to a compatible
PSE transmitter.
Note: A compatible PoH (PSE) transmitter is REQUIRED to power this
receiver.
4
HDMI OUT Port: Connect to an HDMI TV, monitor, or amplier for
digital video and audio output.
