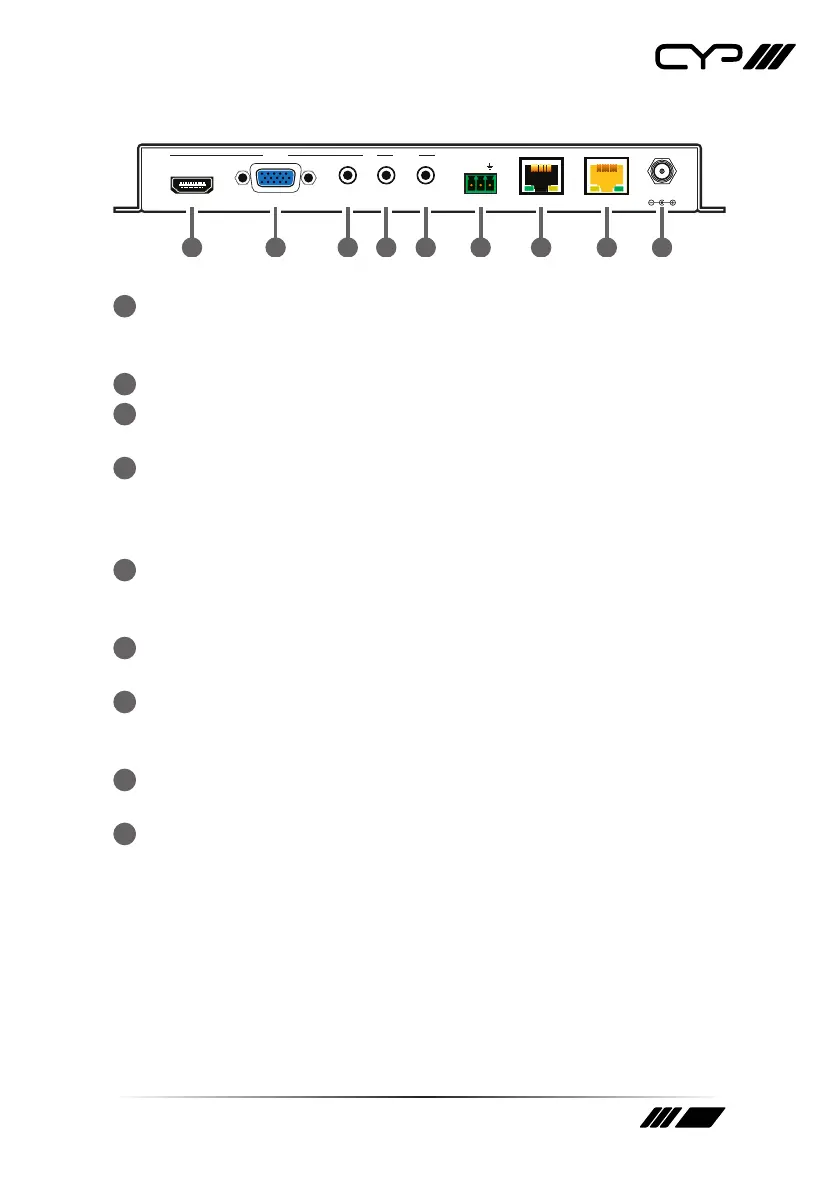

6.2 Rear Panel
HDMIVGA AUDIOINOUT
IR
IN
RS-232
TR
LANCAT5e/6/7 OUT
DC 5V
1 2 3 4 5 6 7 8 9
1
HDMI IN: Connect to HDMI source equipment such as a media player,
game console or set-top box. DVI sources are supported with the use
of an HDMI to DVI adapter.
2
VGA IN: Connect to VGA source equipment such as a PC or laptop.
3
AUDIO IN: Connect to the stereo analogue output of a device such as
a CD player or PC.
4
IR IN: Connect to the provided IR Extender to extend the IR control
range of devices connected to the other end of the HDBaseT
connection. Ensure that the remote being used is within direct line-of-
sight of the IR Extender.
5
IR OUT: Connect to the provided IR Blaster to transmit IR signals from
the other end of the HDBaseT connection to devices within direct line-
of-sight of the IR Blaster.
6
RS-232: Connect to a PC, laptop or other serial control device for the
extension of RS-232 signals.
7
LAN: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of the
HDBaseT connection.
8
CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with a
single Cat.5e/6/7 cable for transmission of all data signals.
9
DC 5V: Plug the 5V DC power adapter into the unit and connect it to
an AC wall outlet for power. (Optional)
Note: This unit can be powered completely via HDBaseT if connected to
a compatible 48V PoH PSE (Power Supplying Equipment) Receiver. Use of
the 5V DC power adapter is optional in that case.
