6

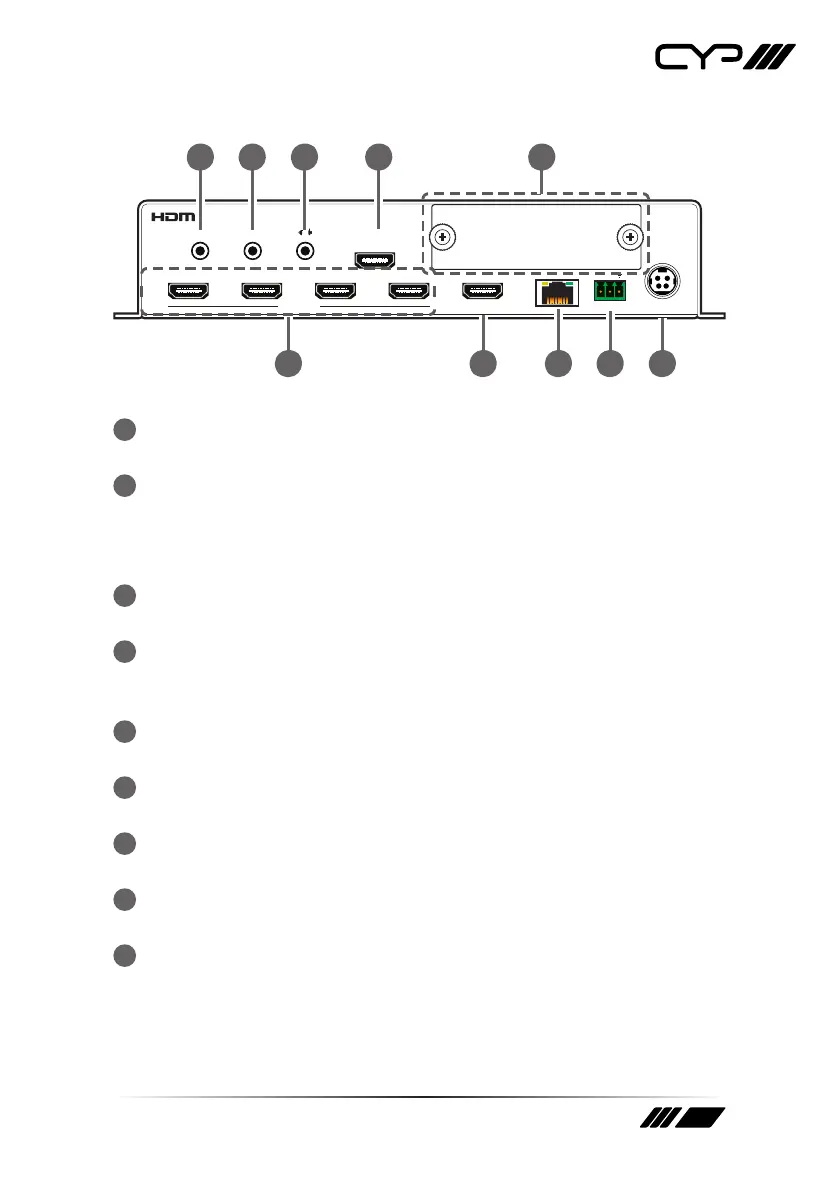

6.2 Rear Panel
DC 24VRS-232
HDMI IN
1
LINE IN LINE OUT
234
CONTROL
TX RX
OUT B
OUT A
1
6 7 8 92
2 43 5
1
HDMI IN 1~4 Ports: Connect to HDMI source equipment such as
players, game consoles, or set-top boxes.
2
OUT A~B Ports: Connect to HDMI TVs, monitors, or ampliers for
digital video and audio output.
Note: In multiviewer modes, outputs A & B will always output the same
video.
3
CONTROL Port: Connect directly, or through a network switch, to
your PC/laptop to control the unit via Telnet/WebGUI.
4
RS-232 3-pin Terminal Block: Connect directly to a PC, laptop, or
other serial control device with a 3-pin adapter cable to send RS-232
commands to control the unit.
5
DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power.
6
LINE IN Port: Connect to the analogue stereo output of a device such
as an audio player or PC.
7
LINE OUT Port: Connect to powered speakers or an amplier for
analogue stereo audio output.
8
Headphone Out Port: Connect to powered speakers, headphones, or
an amplier for analogue stereo audio output.
9
CYP Module Slot: Install a compatible SDM branded module card
to expand the output functionality of the unit (for example, adding
streaming or recording functions).
Note: When no module card is installed, this slot should always be covered
with a blank cover plate.
