MENU Button: Press to enter the OSD menu, or to back out from
menu items.
Note: The OSD menu will be visible on the HDMI output of both connected
transceivers so it is recommended to adjust the OSD position on one unit
to avoid the menus overlapping.
7
− (MINUS) Button: Press to move up or adjust selections within OSD
menus. When not in a menu, press to manually switch between “T”
source inputs.
8
+ (PLUS) Button: Press to move up or adjust selections within OSD
menus. When not in a menu, press to manually switch between “R”
source inputs.
9
ENTER/INFO Button: When inside an OSD menu, press to conrm a
selection or to go deeper into a menu item. When not in a menu, press
to activate the Information OSD.

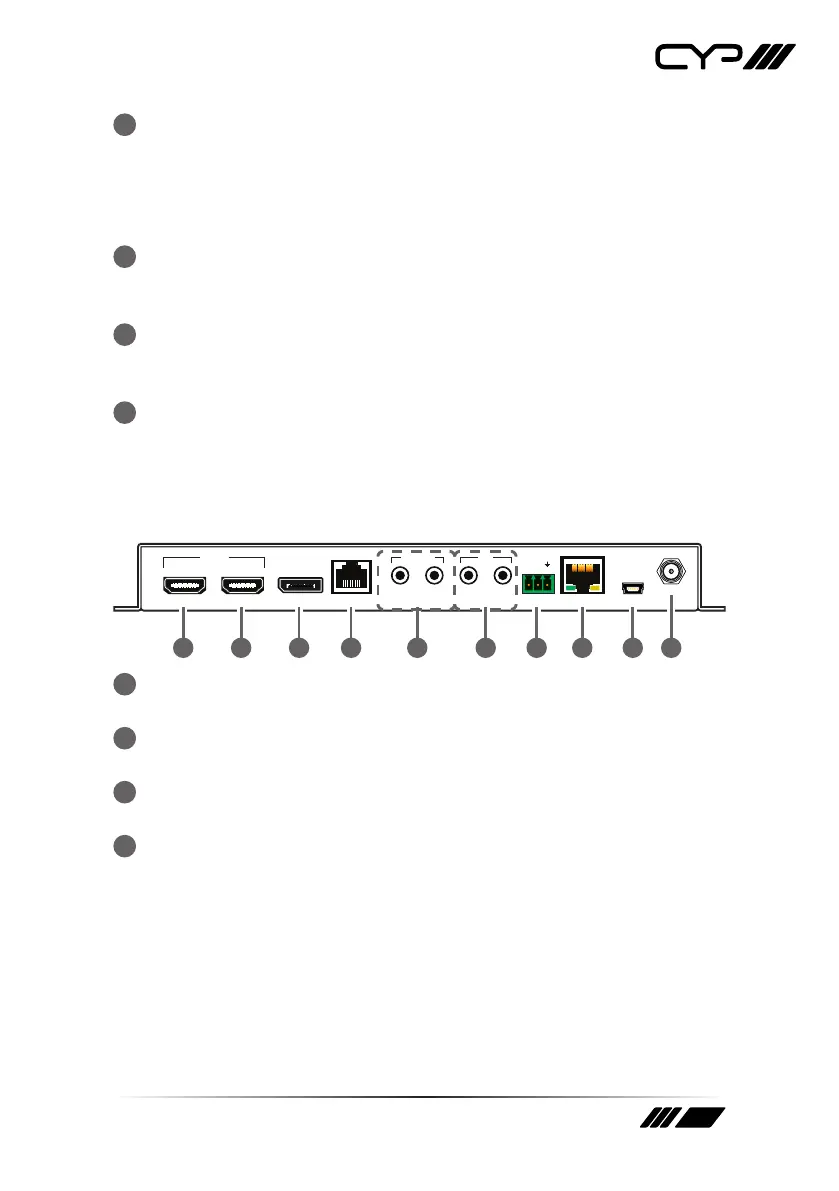

6.2 Rear Panel
USB/SERVICELANRS-232IN
IRHDMI
OUTINOUTCAT6A/7DP ININOUT
DC 12V
AUDIO
TX RX
1
2 3 4 5 6
7 8
9
10
1
HDMI OUT Port: Connect to an HDMI TV, monitor, or amplier for
digital video and audio output.
2
HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box.
3
DP IN Port: Connect to DisplayPort source equipment such as a PC or
laptop.
4
CAT6A/7 Port: Connect directly to a compatible transceiver for bi-
directional Point-to-Point extension.
