3

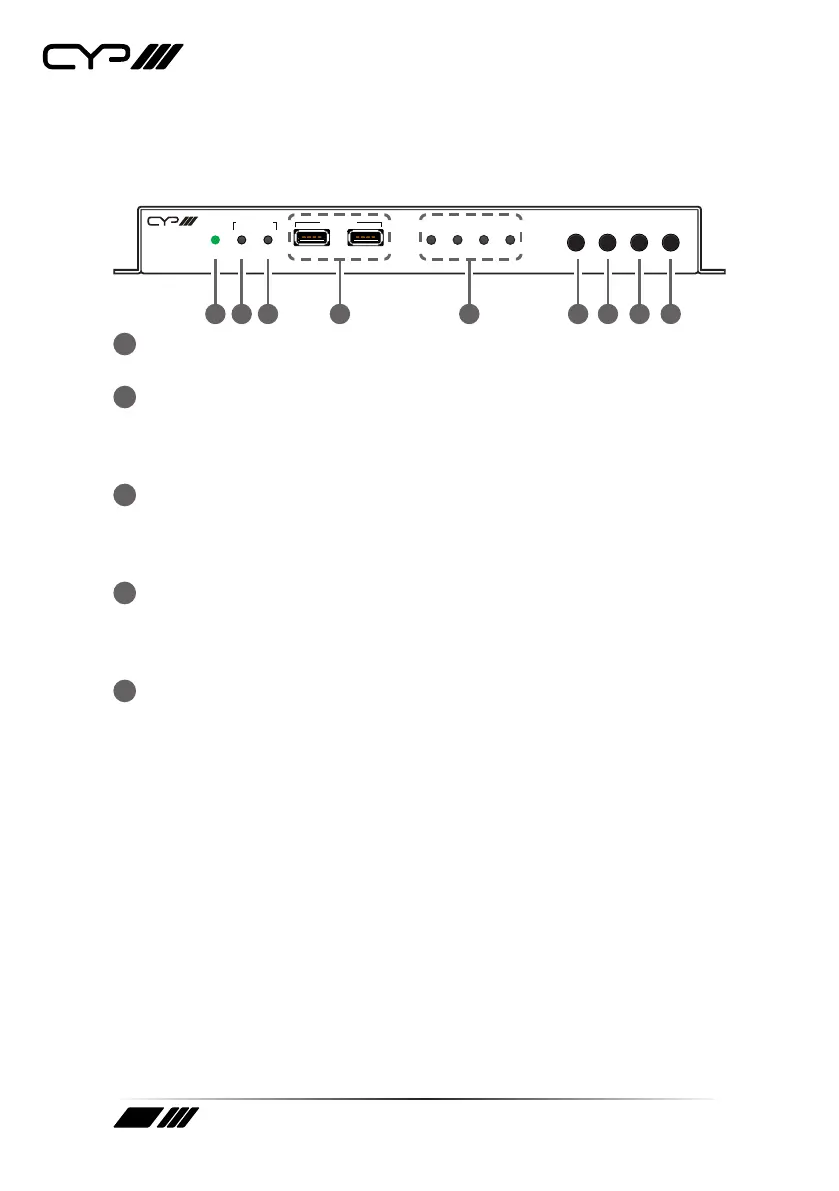

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER SOURCE GbE VIDEO LINK USB MENU + ENTER
INFO
-
LINK USB
T
R
HID USB
1 2 3 4 5 6 7 8 9
AVX-501C-TR
1
POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2
SOURCE T LED: The illumination of this LED indicates which AV input
is currently selected to be the source transmitted as an AV over IP
stream. Green indicates the local HDMI input, amber indicates the
local DisplayPort input, o indicates the incoming AVoIP stream.
3
SOURCE R LED: The illumination of this LED indicates which AV input
is currently selected as the source to be output over the local HDMI
output. Green indicates the local HDMI input, amber indicates the
local DisplayPort input, o indicates the incoming AVoIP stream.
4
HID USB (Type-A) Ports: Connect directly to standard USB human
interface devices such as a mouse or keyboard to extend their USB
functionality to the currently active/routed transceiver with an active
host port.
5
STATUS LED BLOCK:
GbE LED: This LED will illuminate and blink to indicate a live and
active connection on the local gigabit Ethernet port.
VIDEO LED: This LED indicates video streaming activity over the
CAT6A/7 port. It will illuminate green when a video signal is being
transmitted and amber when a video signal is being received.
When bi-directional video streaming is active, both colours will
illuminate. When no video is active the LED will remain off, even if
the streaming connection is valid.
LINK LED: These LEDs will illuminate and blink to indicate data
transmission and reception activity across the CAT6A/7 streaming
connection.
USB LED: This LED will illuminate when the unit’s USB ports have
successfully paired with the USB ports on another unit. This LED will
blink if the unit’s USB ports are not currently paired and in stand-by
mode.
