2 — INSTALLATION AND WIRING
pg. 17
Return to TOC 1229 Manual - OS 1.8 RevA - May 2021
1229 Option Wiring
non_1229-xx05 models
KSI
1229-xx05 models
Driver 1
Pin 20
Pin 4
Driver 2
MAIN
EM BRAKE
KEYSWITCH
Pin 20
MAIN
EM BRAKE
Driver 1
Driver 2
Pin 4
B+
1229 Vcap ( 1229 TERMINAL LABELED B+ )
KSI
NO ACTION
PUSH
input
PUSH
input
Configure:
1)90-PUSH
2)SPEED LIMIT
Configure:
1)90-PUSH
2)SPEED LIMIT
With KSI = Off, when the vehicle is “pushed” such that the voltage generated by the permanent magnet motor
rises above the brownout voltage (~ 16V ± 1), the controller will wake-up, pull-in the main contactor and
control the motor speed based upon the Speed Limit parameter.
The Push-Too-Fast function will work with Key Off regardless of the push switch status.
1
2
If using the keyswitch-off Push & Push-Too-Fast functions, do not use an EM Brake. Use a hand-released brake,
which allows pushing the vehicle when the controller is off to generate the controller’s wake-up voltage.
1229-xx05 models (only):
2
1
PUSH-TOO-FAST
STATUS BEACON
KEY-OFF DECEL
PUSH
input
PUSH-TOO-FAST
Driver 6
BEACON
PUSH-TOO-FAST
STATUS BEACON
KSI = On
SWITCH X ( X = 1- 5)
PUSH = On
KSI = Off
On
Off
PUSH
input
SWITCH X ( X = 1- 5)
PUSH = On
Pin 21

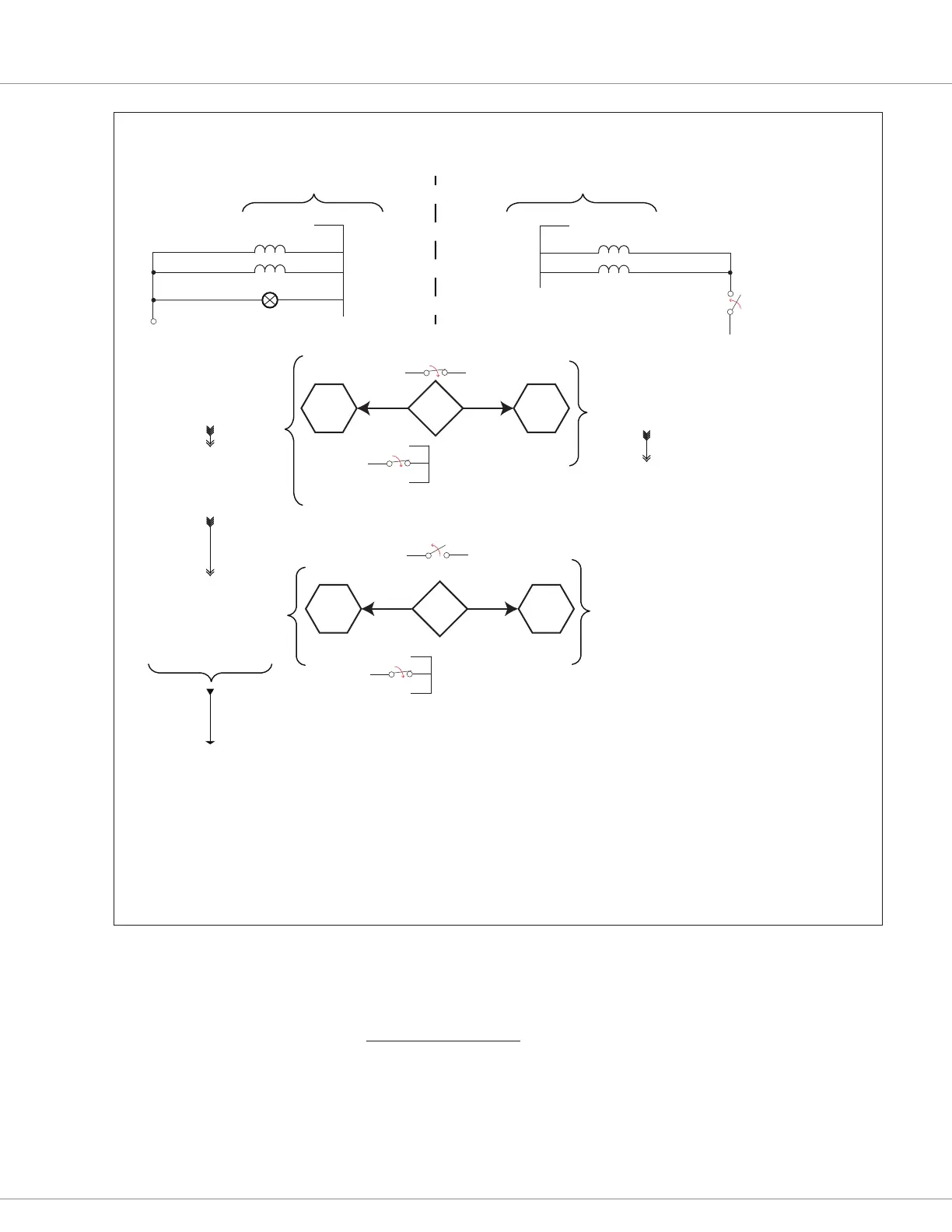

Figure 6
e 1229 Controller Model and Option-based wiring.
Figure 7 illustrates a non 1229–xx05 model application utilizing a “push” input when KSI = On. In
this example, to enable the “push” feature, set the 90-Push Input parameter to the switch number
3 (90-Push Input = 3). e EM Brake must be wired to Driver 2 (pin J1-4), and enabled in the EM
Brake parameter menu in order to release the brake. If a mechanical parking brake is used, release
it prior to pushing the vehicle, knowing that the operator must manually re-set the brake. With the
keyswitch on (controller powered) and the push input active, the speed limit will “work” by shorting
the motor.
