2 — INSTALLATION AND WIRING
1229 Manual - OS 1.8 RevA - May 2021
Return to TOC
pg. 18
Pot 3
J1-7
+5V Out
J1-18
Switch 4
J1-11
INTERLOCK
Switch 3
J1-3
PUSH
Switch 2
J1-10
Switch 1
J1-19
REVERSE
+5V Out
J1-18
Pot 1
J1-13
Analog GND
J1-6
SERIAL PORT
CAN PORT
MAIN
J1-23
J1-21
J1-22
J1-4
Driver 4
Driver 6
Driver 3
Driver 2
MAIN
EM BRAKE
J1-20
Driver 1
FORWARD
BATTERY
(24–48V)
KEYSWITCH
B+
B-
J1-8
KSI
GND
J1-16
EM REV (BB)
RXD
J1-12
TXD
J1-9
+17V Out
J1-17
CAN L
J1-2
CAN H
J1-1
THROTTLE
TRACTION
MOTOR
M1
M2
M
J1-15
Driver 5
LOWER
TRAVEL
ALARM
2A
2A
LOAD
HOLD
HORN
PUMP
Switch 5
J1-5
LIFT
REDUNDANT
EM REV
Pot 2
J1-14
* Generic 1229-xx51 models are WITHOUT internal CAN termination
*
1229 CONTROLLER

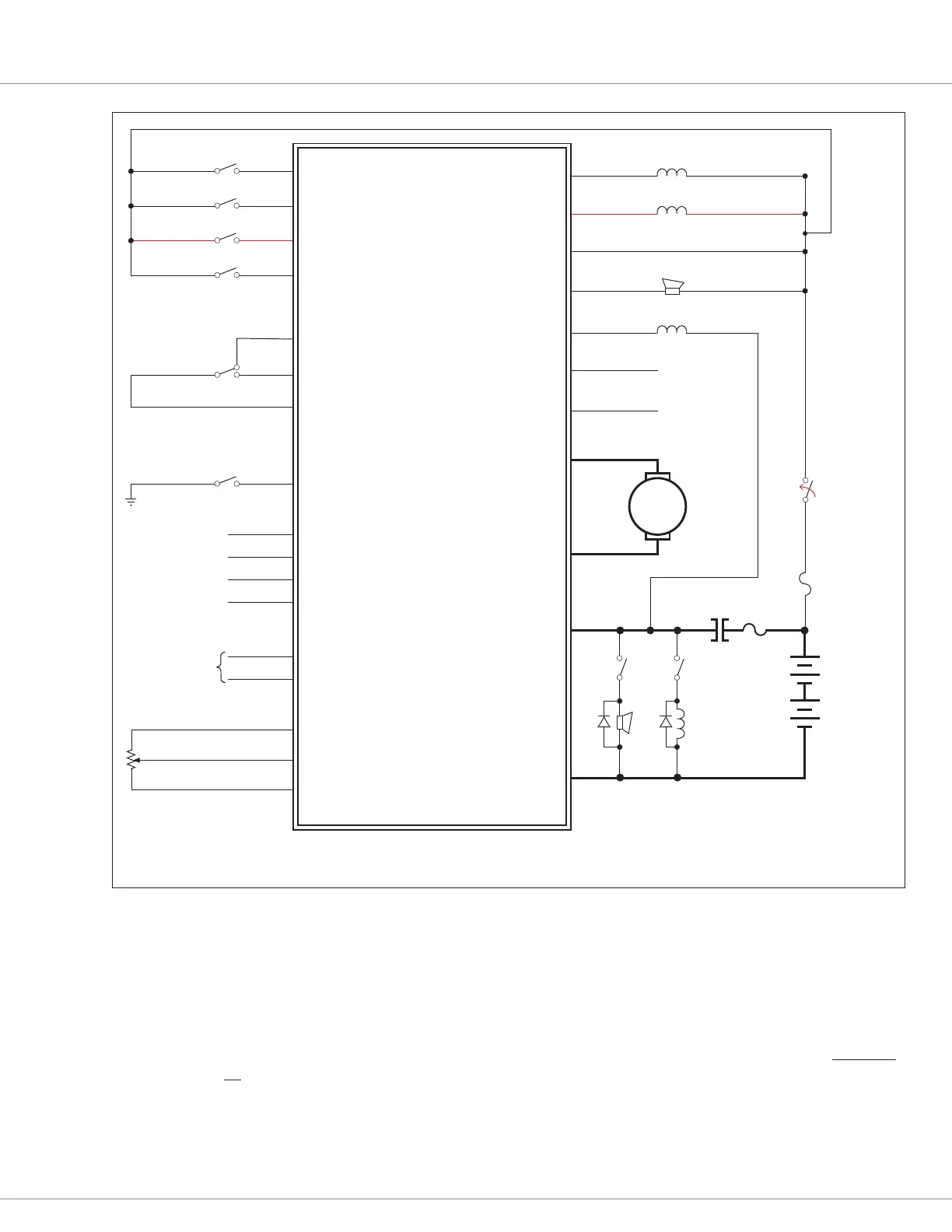

Figure 7
Non-1229-xx05 for the Push Enable input: Operational when KSI = On, 1229 Pallet mover example.
Push, when the keyswitch (KSI) is OFF. (1229-xx05 Models ONLY)
ese models require the main contactor (driver 1) and the EM Brake (driver 2, if equipped with an EM
Brake) to be wired to the controllers B+ terminal. Note, in order to use the push mode with the keyswitch
o, do not install an EM Brake, as it will prevent vehicle movement when de-energized. In these cases, use a
mechanically released parking brake. Figure 8 illustrates a 1229-xx05 model’s application utilizing the “push”
input (on switch 2, pin J1-10) for when the keyswitch is o (the EM Brake is not installed for key-o usage).
