3 — PROGRAMMABLE PARAMETERS
pg. 25
Return to TOC Curtis Model 1220E – August 2022
HOMING
NAME
ALLOWABLE
RANGE RAW DATA DESCRIPTION
Input Type
(0x378600, 8bits)
0 – 2
0 – 2
This parameter denes which inputs will be used to determine Home position.
0 = Single NO switch
1 = Single switch with NO and NC contacts
2 = Two switches with the same NO polarity
Home on Interlock
(0x378800, 8bits)
OFF / ON
0 / 1
This parameter denes when the homing function is activated.
OFF: Home when keyswitch is turned on
ON: Homing on rst interlock. If the interlock signal is turned off during homing,
the homing procedure is paused and will resume when the interlock gets active
again.
Homing Direction Method
(0x378A00, 8bits)
0 – 4
0 – 4
This parameter denes which method is use to nd Home position.
0 = Left of positive Home switch
1 = Right of positive Home switch
2 = Right of negative Home switch
3 = Left of negative Home switch
4 = Center of positive Home switch
Methods 0 and 1 use a Home switch that is On if the wheel is to the right of it
and Off if the wheel is to the left of it. At the start of homing the wheel will move
to the left if the Home switch is On and to the right if it is Off. The home position
is just to the left of the switch transition in method 0 and just to the right of the
switch transition in method 1.

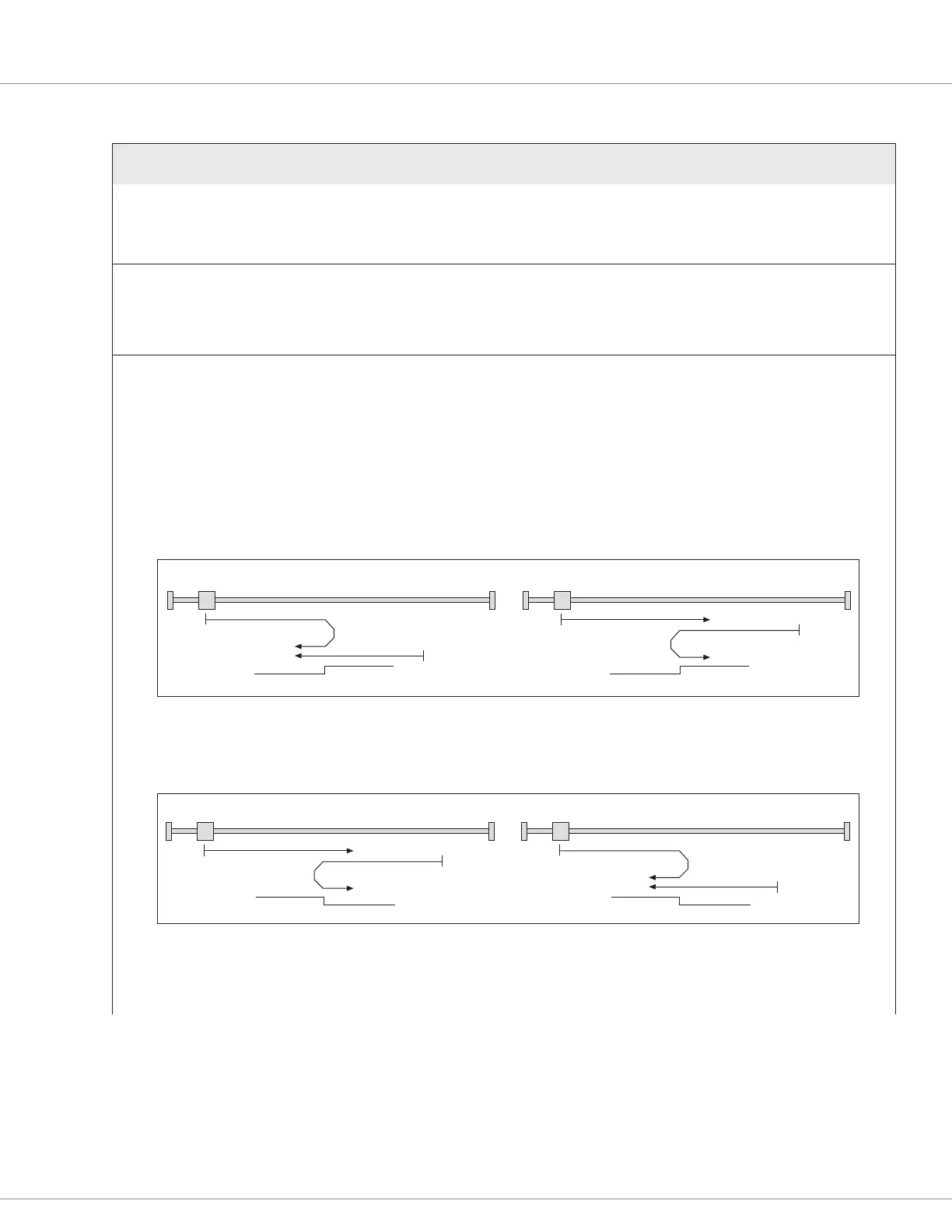

Homing on the positive Home switch
Home Switch
Method 1
Home Switch
Method 0
Methods 2 and 3 use a Home switch that is On if the wheel is to the left of it and
Off if the wheel is to the right of it. At the start of homing the wheel will move to
the right if the Home switch is On and to the left if it is Off. The home position
is just to the right of the switch transition in method 2 and just to the left of the
switch transition in method 3.
Homing on the negative Home switch
Home Switch
Method 2
Home Switch
Method 3
Method 4 uses a Home switch that is On if the wheel is just on it and Off if the
wheel is not on it. At the start of homing the wheel will move in the direction
saved in EEPROM at the last shutdown. The home position is just at the switch
transition period. Only single feedback quadrature encoder and single home
switch are supported for this method.
