ACPBM-77Z
Smart-Play Integration with Rear-View Camera Input
for F Series BMW with 6.5”, 7”, 8.8”, & 10.25” Monitor and 4+2 LVDS Connector
SMART-LINK AUDIO CONNECTIONS
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.070919
11 of 13
INTER FACING SO LUTIONS
ACPAD-81Y
Smart-Play Integration with Multi Camera Inputs & USB Player
for AUDI Vehicles with MMI MIB/MIB2 Systems
OSD Menu Menu Item
OSD
POS. X 0-xxx
POS. Y 0-xxx
Size
Small Small OSD menu window
Large Large OSD menu windows
Osd TimeOut 2-20
Info Version X.XX.XX Displays the current SW-version
Factory Reset

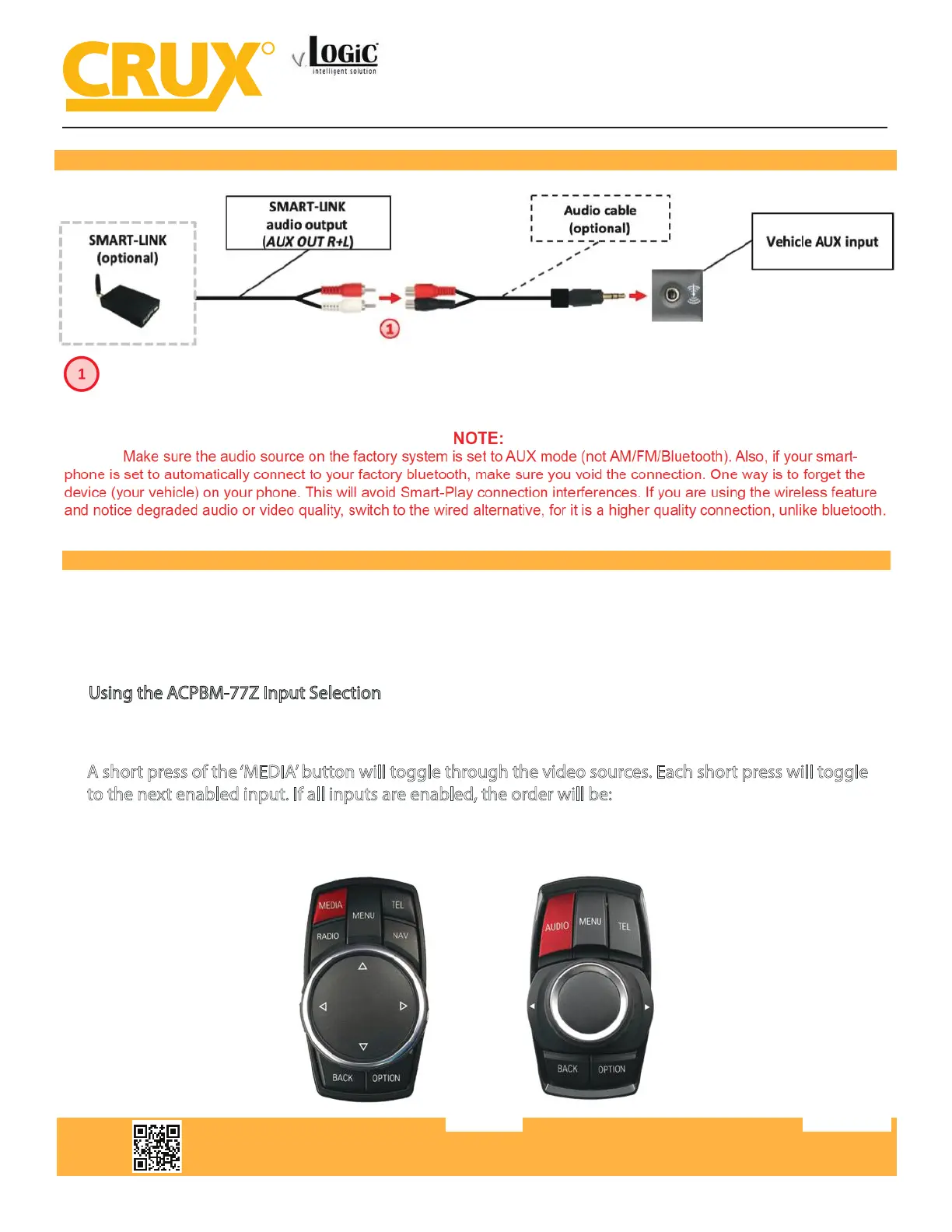

CONNECTING THE SMART-PLAY INTERFACE:
By using an audio cable (sold separately),
connect the audio output of the SMARTLINK module to the vehicle AUX input.
The ACPBM-77Z utilizes wireless technology for Apple devices/Android devices. If desired for wired
connectivity, devices are required to be plugged in to the USB port using the smartphones OEM
charger/data cable. The USB port on the ACPBM-77Z can be used to charge the apple device or play
video or music from a USB thumb drive.
In the vehicle’s Media menu, activate AUX Input to get the Smart-Play sound through the vehicles audio
system. Press the ‘BACK’ button again for 3-5 seconds to go to the ACPBM-77Z AV mode.
A short press of the ‘MEDIA’ button will toggle through the video sources. Each short press will toggle
to the next enabled input. If all inputs are enabled, the order will be:
Using the ACPBM-77Z Input Selection
Rear CAM > Video Input (Smart-Play) > Repeat...
To exit the Smart-Play menu, hold the ‘Menu’ button for 3-5 seconds
