ACPBM-77Z
Smart-Play Integration with Rear-View Camera Input
for F Series BMW with 6.5”, 7”, 8.8”, & 10.25” Monitor and 4+2 LVDS Connector

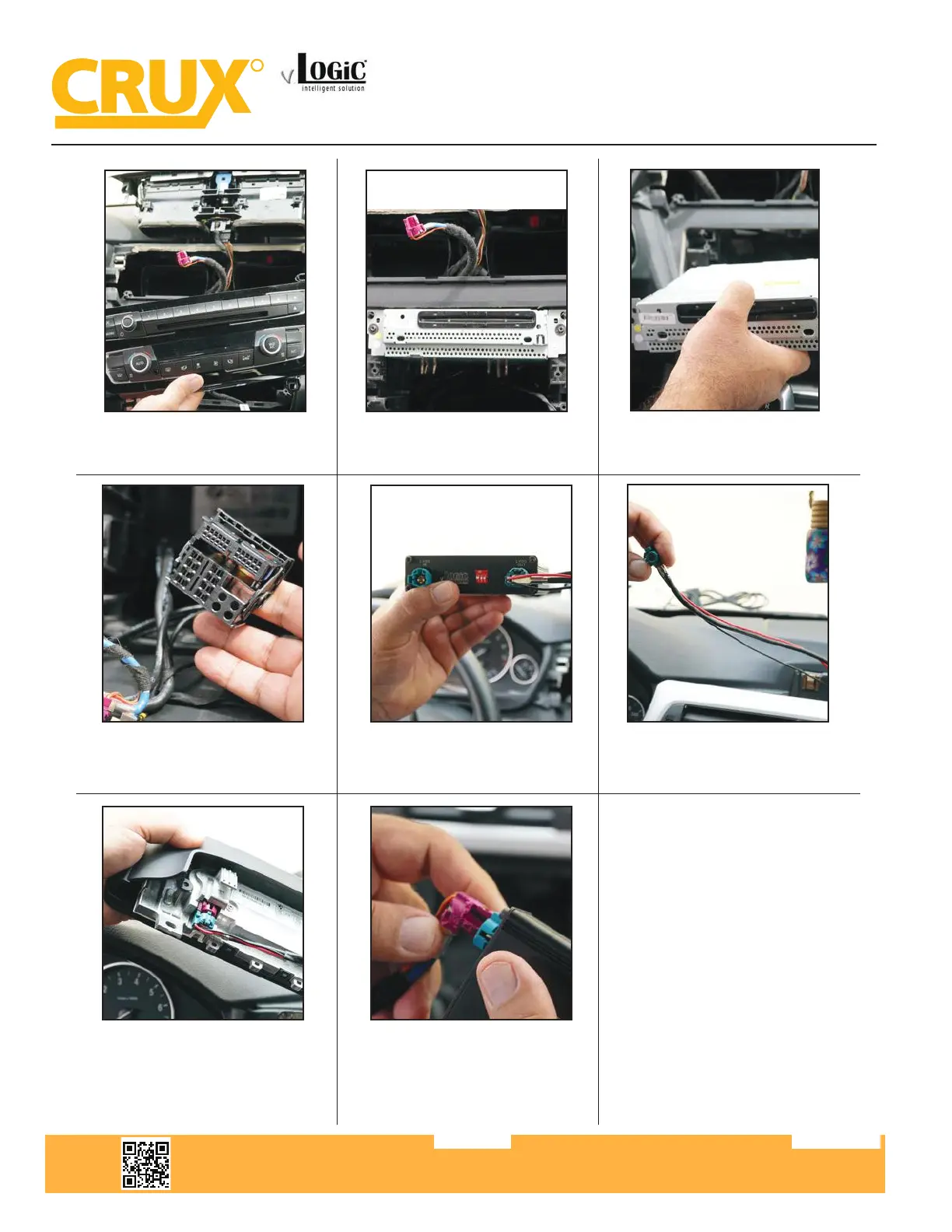

10. Remove the A/C control panel. 11. Remove the two torques bracing
the radio unit.
12. Remove the radio unit.
13. Remove the Quadlock connector
from behind the radio.
14. Insert the CRUX LVDS Cable into
the LVDS OUT port on the ACPBM-77Z
module.
15. Funnel the CRUX LVDS cable from
the radio cavity to the LCD screen
cavity.
16. Connect the otherside of the CRUX
LVDS Cable to the LVDS port on the LCD
screen and place it to rest.
17. Funnel the Pink LVDS cable to the
radio cavity and connect it to the LVDS
IN port on the ACPBM-77Z module.
