ACPBM-77Z
Smart-Play Integration with Rear-View Camera Input
for F Series BMW with 6.5”, 7”, 8.8”, & 10.25” Monitor and 4+2 LVDS Connector

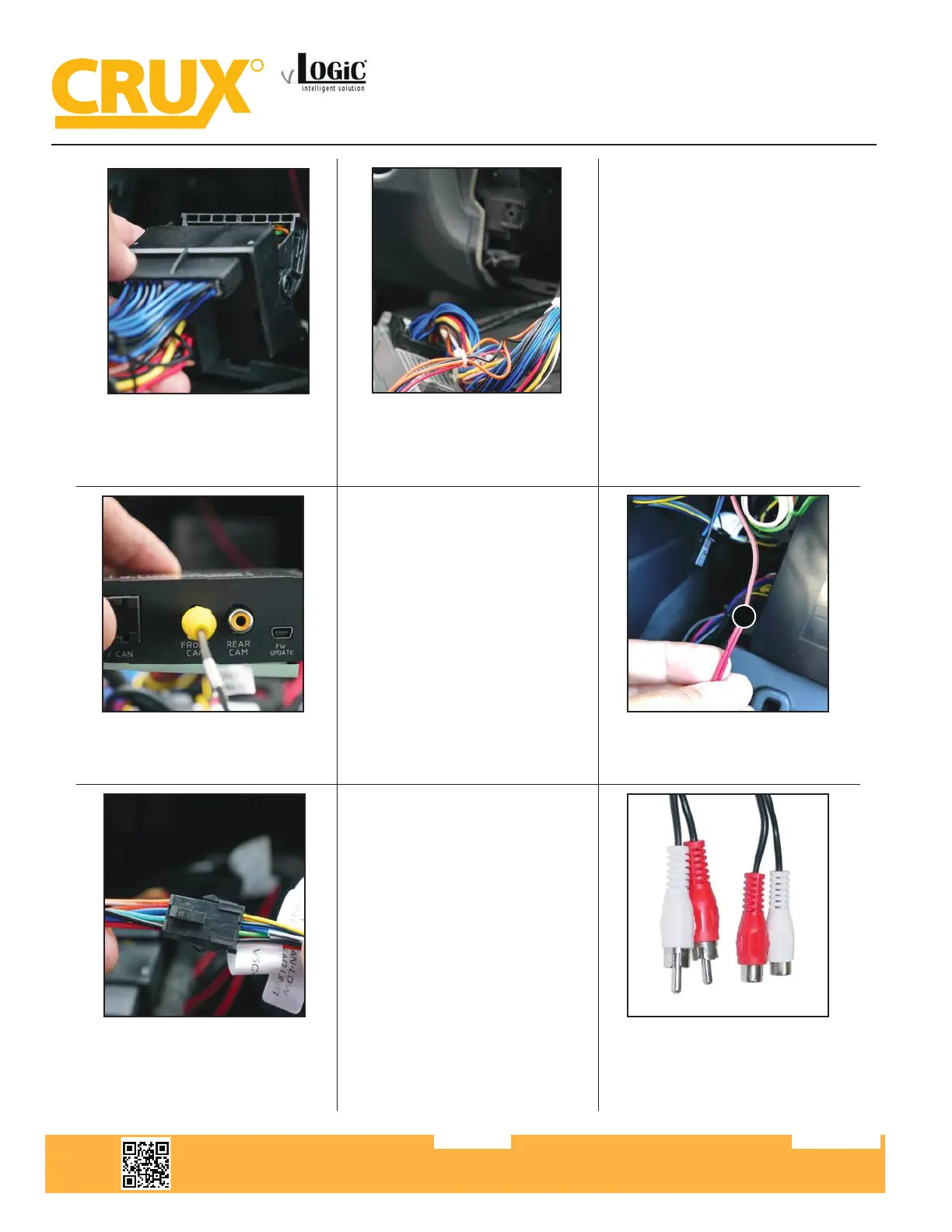

18. Connect the male side of the
ACPBM-77Z vehicle harness to the fac-
tory female Quadlock connector that
was originally connected to the radio.
19. Connect the female side of the
ACPBM-77Z vehicle harness to the
factory radio.
20. Plug the Video Out from the Smart-
Play Power/Video harness into the
FRONT CAM input on the module.
24. Tap the RED ACC wire from the
Power/Video harness to the green
+12V output, from the previous step’s
8-pin male connector.
23. Connect the male 8-pin connector
from the vehicle harness to the female
8-pin connector on the Power/CAN
harness.
25. Connect the male audio RCA
outputs from the Power/Video harness
to the Female RCA-to-3.5mm cable.
21. If installing an aftermarket back-up
camera, plug the cameras video out
to the REAR CAM input on ACPBM-77Z
module. You will also need to power
the camera for it to work. Use the
PINK power output 1 wire provided
on the power/CAN harness to do this.
An image is displayed in step 23. If
retaining an OEM camera, skip steps 22
and 23.
22. Connect the RED camera power wire to
the PINK power output 1 wire.
