ACPBM-77Z
Smart-Play Integration with Rear-View Camera Input
for F Series BMW with 6.5”, 7”, 8.8”, & 10.25” Monitor and 4+2 LVDS Connector

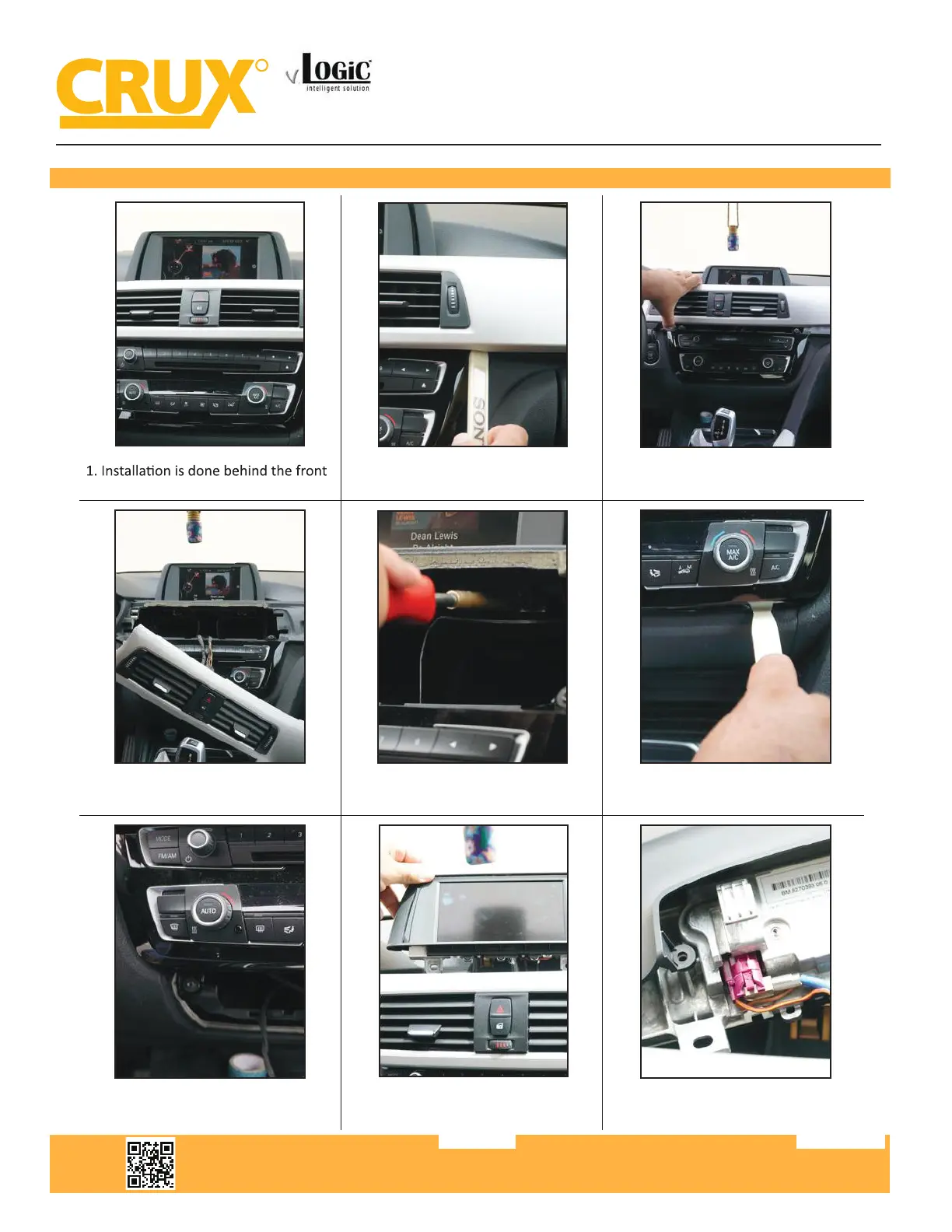

INSTALLATION INSTRUCTIONS:
panel.
2. Remove the dashboard front panel. 3. Remove the front panel.
4. We must now remove the four
screws behind the front panel.
5. Use a T-20 bit to remove these 4
screws.
6. Remove the panel below the A/C
control.
7. Remove the two torques behind the
panel.
8. Remove the LCD monitor. 9. Unplug the pink LVDS connector
from behind the LCD monitor.
