Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072419
5 of 12
R
INTERFACING SOLUTIONS
ACPBM-77X

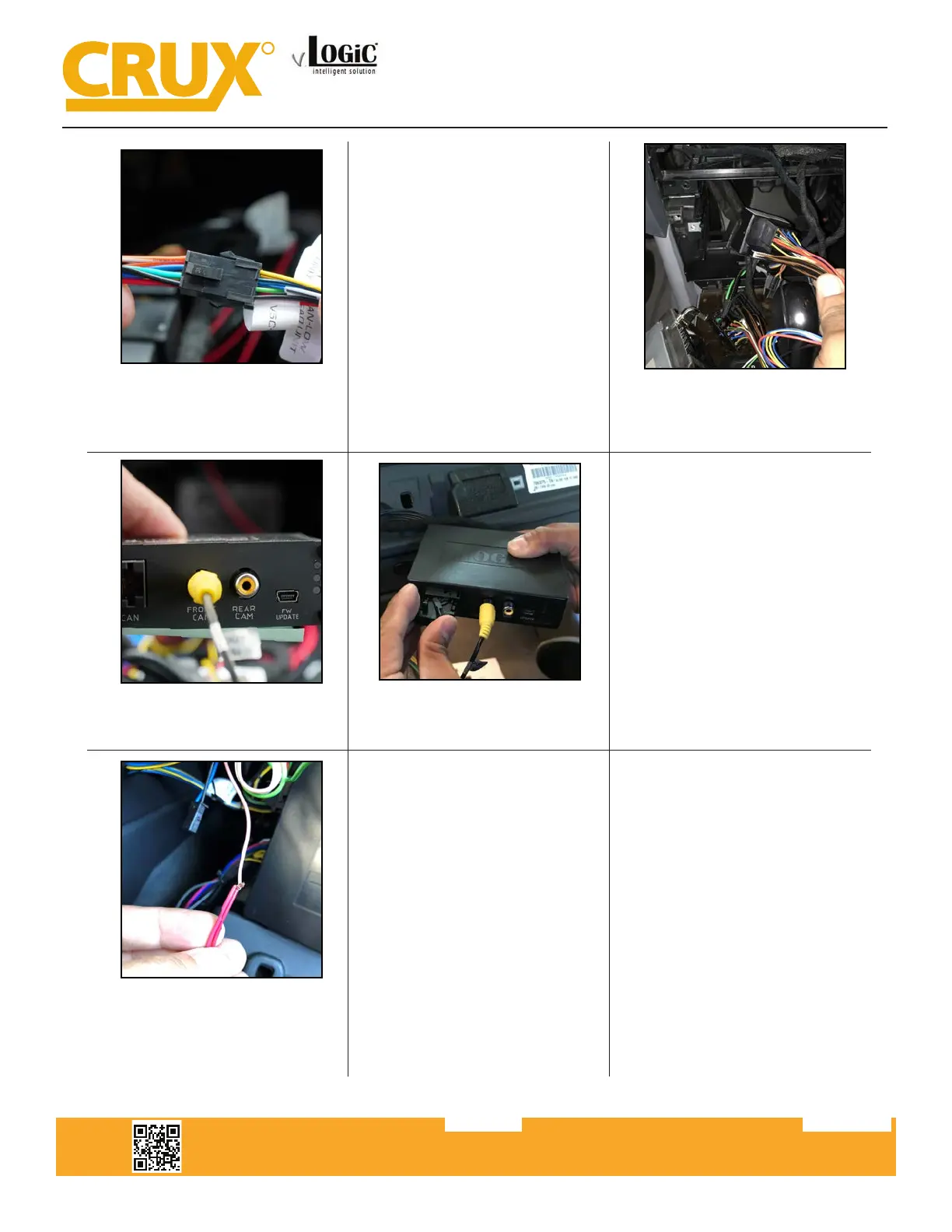

20. Tap the RED ACC wire from the
Smart-Play Power/Video harness to the
green +12V output on the ACPBM-77X
harness.
19. Connect the male 8-pin connector
from the ACPBM-77X to the female
8-pin connector on the Power/CAN
harness.
21. Plug in the female side of the
ACPBM-77X harness to the Headunit.
24. If installing an aermarket back-up
camera, plug the camera’s video out
to the REAR CAM input on ACPBM-77X
module. Use the PINK power output 1
wire provided on the Power/CAN har-
ness to power the camera. An image
is displayed in step 26. If retaining an
OEM camera or if you’re not installing
a back-up camera, skip steps 25 and 26.
22. Plug the Video Out from the Smart-
Play Power/Video harness into the
FRONT CAM input on the module.
23. Plug in the Power/CAN harness to
the ACPBM-77X module.
25. Connect the camera power wires to
the PINK power output 1 wire.
Smart-Play Integration with Rear-View Camera Input for
E Series BMW with CCC Systems (6.5” or 8.8” Monitor) and 10-Pin LVDS Connector
