Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0819199 of 12
R
INTERFACING SOLUTIONS
ACPAD-81Y
Smart-Play Integration with Multi Camera Inputs & USB Player
for AUDI Vehicles with MMI MIB/MIB2 Systems
OSD Menu Menu Item Seng Descripon
Input RVC OEM
If a factory rear-view camera is present. The interface
turns o, if reverse gear is enabled and it displays
factory rear-view camera
Opon 1 Park Logic
Intelligent For vehicles with front-PDC. Enabled while parking
process and up to 12 mph.
RGearSpeed Enabled while parking process and up to
e.g. 7 mph (speed adjustable)
RGearTime Enabled while parking process and up to 20 seconds
Opon 2 R/F Cam Till XX Speed seng for deacvang of the camera image

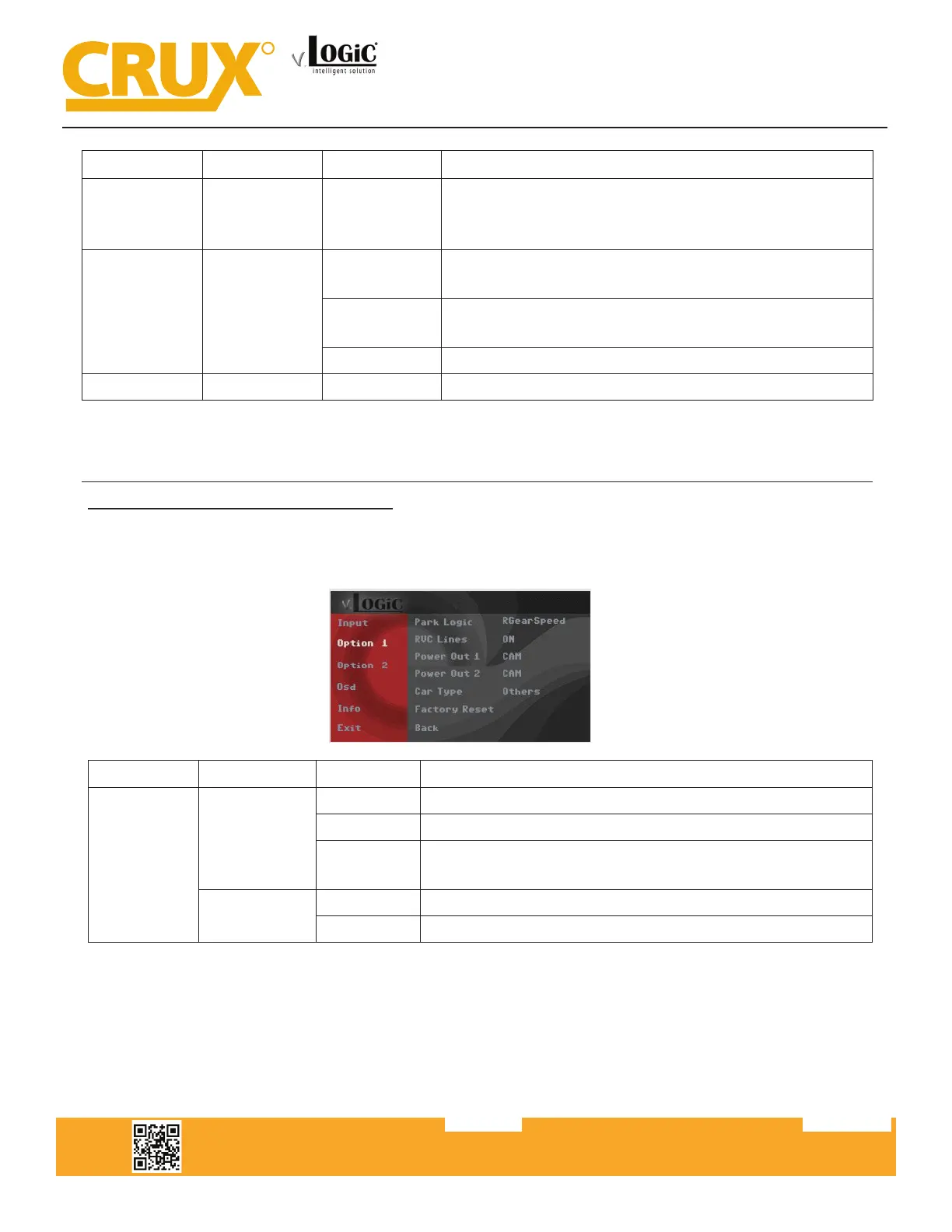

Conguring the Trigger Outputs
Congure the +12V trigger outputs in the OSD menu to supply power to the cameras and the Smart-
Play interface. The PINK wire (12V OUTPUT 1) is Power Out 1 for the front and rear cameras and Power
Out 2 is for the Smart-Play module.
OSD Menu Menu Item Seng Descripon
Opon
Power Out 1
(PINK)
CAN +12V when the interface is on (red LED on)
ACC +12V when ignion is on
Cam
+12V when camera input is acvated
(manually or automacally)
Power Out 2
(Smart-Play)
CAN Smart-Play power ON
OFF Trigger output deacvated
Tip: We recommend for all camera to use power out seng “CAM” and for the Smart-Play interface
(Power Out 2) to use the power out seng “CAN”.
