Crestron Green Light Express™ Dimming Panel

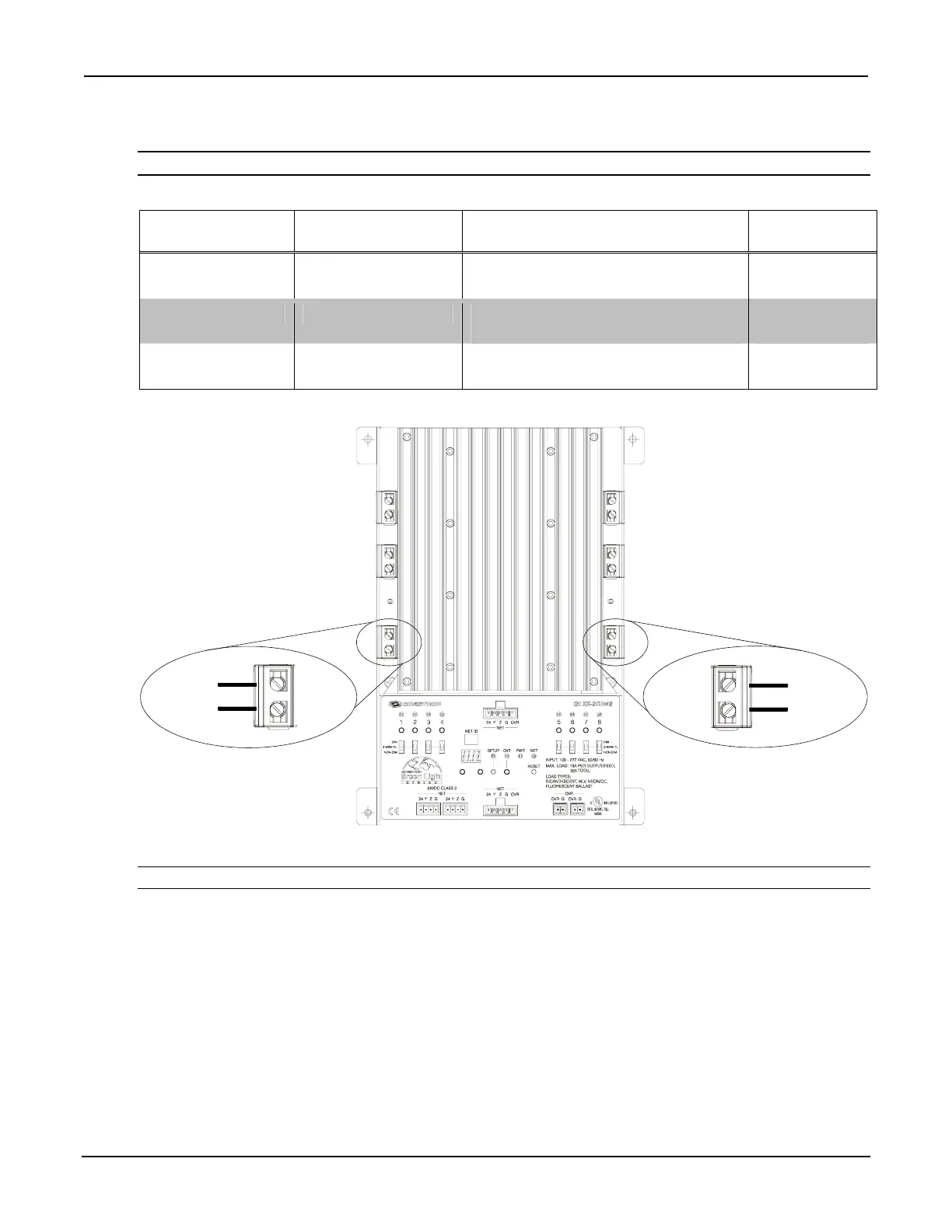

Feed-Through and Load Wiring (Section A)

NOTE: Use copper conductors only – rated 75°C.

Wire Gauge and Torque Values

TERMINAL CONNECTOR MAX

WIRE RANGE

TORQUE STRIP

LENGTH

INPUTS 26-10 AWG 5.31 lb-in (0.6 Nm) to

7.08 lb-in (0.8 Nm) max

3/8”

(9 mm)

OUTPUTS 26-10 AWG 5.31 lb-in (0.6 Nm) to

7.08 lb-in (0.8 Nm) max

3/8”

(9 mm)

GROUND LUG 14-4 AWG 25-45 lb-in

(2.8-5.1 Nm)

3/4"

(19 mm)

Load Wiring for GLXX-2DIM8

}

NEUTRAL

BRANCH

BREAKER

NEUTRAL

BRANCH

BREAKER

DM1

DM2

DM3

DM4

DM5

DM6

DM7

DM8

TO LOADS

}

NOTE: All GLXX-2DIM8 modules must be connected together via the NET ports.

Installation Guide – DOC. 6889B Crestron Green Light Express™ Dimming Panel • 11
