CARBIDE SERIES

100R SILENT EDITION

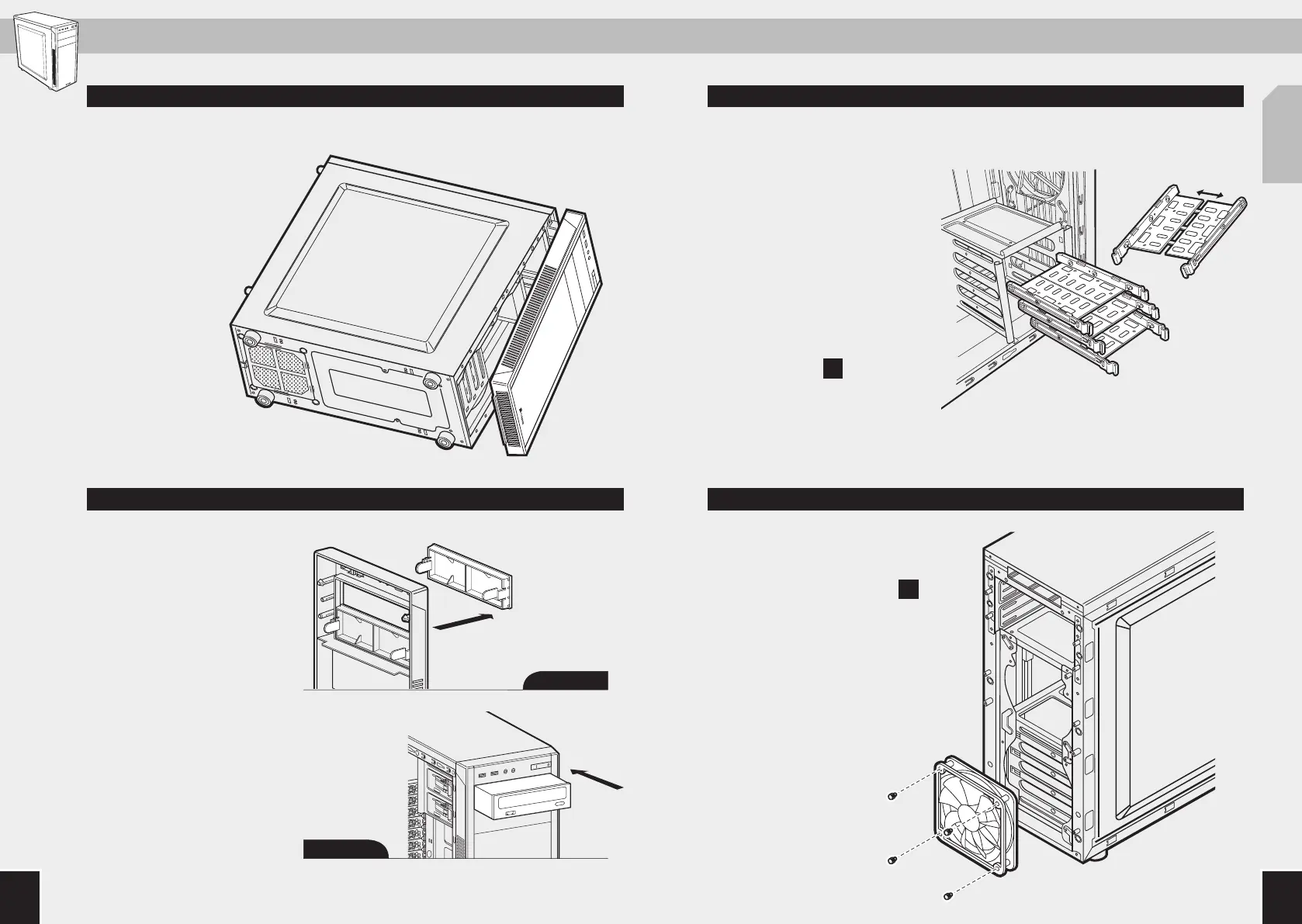

8. Installing a Second Front Fan

7. Installing SSDs and HDDs

6. Installing an ODD (Optical Disk Drive)

5. Removing the Front Fascia

To remove the front fascia

(front panel), grasp the tab

located at the bottom fascia

and pull outward.

First, remove the front panel

5.25" drive bay cover then

slide the ODD into the drive

bay until the tool-free latch

clicks, securing the drive. To

release an optical drive, push

in the tool-free tab then pull

the drive outward.

The four included drive

trays support both 3.5"

and 2.5" devices.

To install a 3.5" HDD, pull the

drive tray from each side to

extend the mounting points.

Next, place your HDD onto

the tray and push the drive

back to a close. No screws are

necessary to secure the drive

onto the tray.

To install a 2.5" SSD, place the

drive on the tray and use the

provided screws to install

the SSD.

To install an additional 120mm

or 140mm fan, remove the

front fascia (step 5) then use

the provided long fan screws

to mount the new fan.

Note: To maximize airﬂow you may

install either p6-x2 120mm or p6-x2 140mm

fans in the front of the chassis.

First

100R Silent STEP5

100R STEP6

100R Silent STEP6

Second

100R Step7

100R Silent Step 8
