CARBIDE SERIES

100R SILENT EDITION

4. Installing the PSU (Power Supply Unit)

3. Installing PCI-e/PCI Card(s)

2. Installing the Motherboard

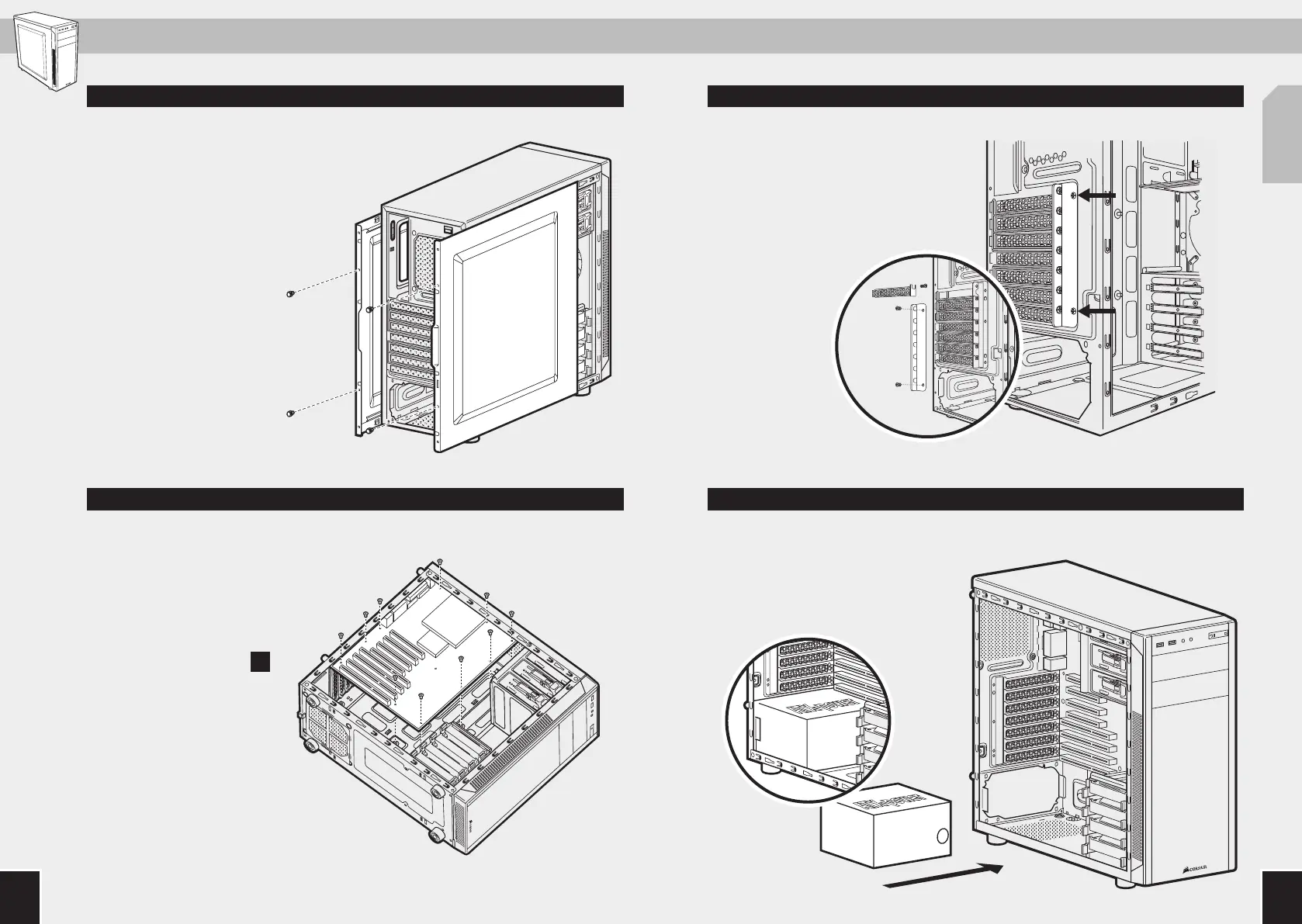

1. Removing the Side Panels

Simply remove the

thumbscrews then slide the

side panels back and out.

Note: CORSAIR recommends

removing both side panels and

setting them aside when building

your system to avoid accidental

damage. Both side panels are

interchangeable and should be

removed to reduce clutter.

Remove thumbscrews and

corresponding slot cover(s).

Install the add-on card and

secure with thumbscrews.

Position the PSU on the

bottom of the case then align

the case holes and secure the

PSU with screws provided with

your power supply.

100R STEP2

First, install your

motherboard’s I/O shield

(see your motherboard’s

manual for guidance).

Align your motherboard with

the pre-installed standos.

Use the provided screws

to secure the

motherboard to the

motherboard tray.

100R Step 3

100R Silent STEP4

100R Silent STEP1

100R Step3
