TRANSMIG 4RT INSTALLATION/SETUP
INSTALLATION/SETUP 3-18 Manual 0-5245
3.11 Wire Feeder Set-up for MIG (FCAW) Welding with Gasless MIG Wire
Connection to Transmig 250i
The Transmig 250i is supplied with a Tweco Fusion 250 AMP air-cooled MIG Torch that can be used with the 4RT Wire
Feeder. The Fusion MIG Torch is designed with an ergonomic handle and fewer parts to cause performance problems.
The Fusion MIG Torch uses standard readily available Tweco Fusion consumable parts.
When using a gasless flux cored wire, you do not need to have an external gas source attached to the 4RT Wire Feeder.
If one is, then make sure it is turned off.
For most Self Shielded Flux Cored Wire, connect the Work Lead to the positive + terminal on the front of the 250i
and connect the Welding Power Cable from the back of the 4RT to the negative - terminal on the front of the 250i.
The 4RT Wire Feeder requires an interconnection cable assembly to connect from the back of the 4RT to the front of
the Transmig 250i welding power source. 2, 8 and 15M are available. See Figure 3-8.
Front View 4RT
Rear View 4RT
Welding Power Cable
from Wire Feeder
+
-
Front View 250i
Control Cable
Art # 11285
Work Lead

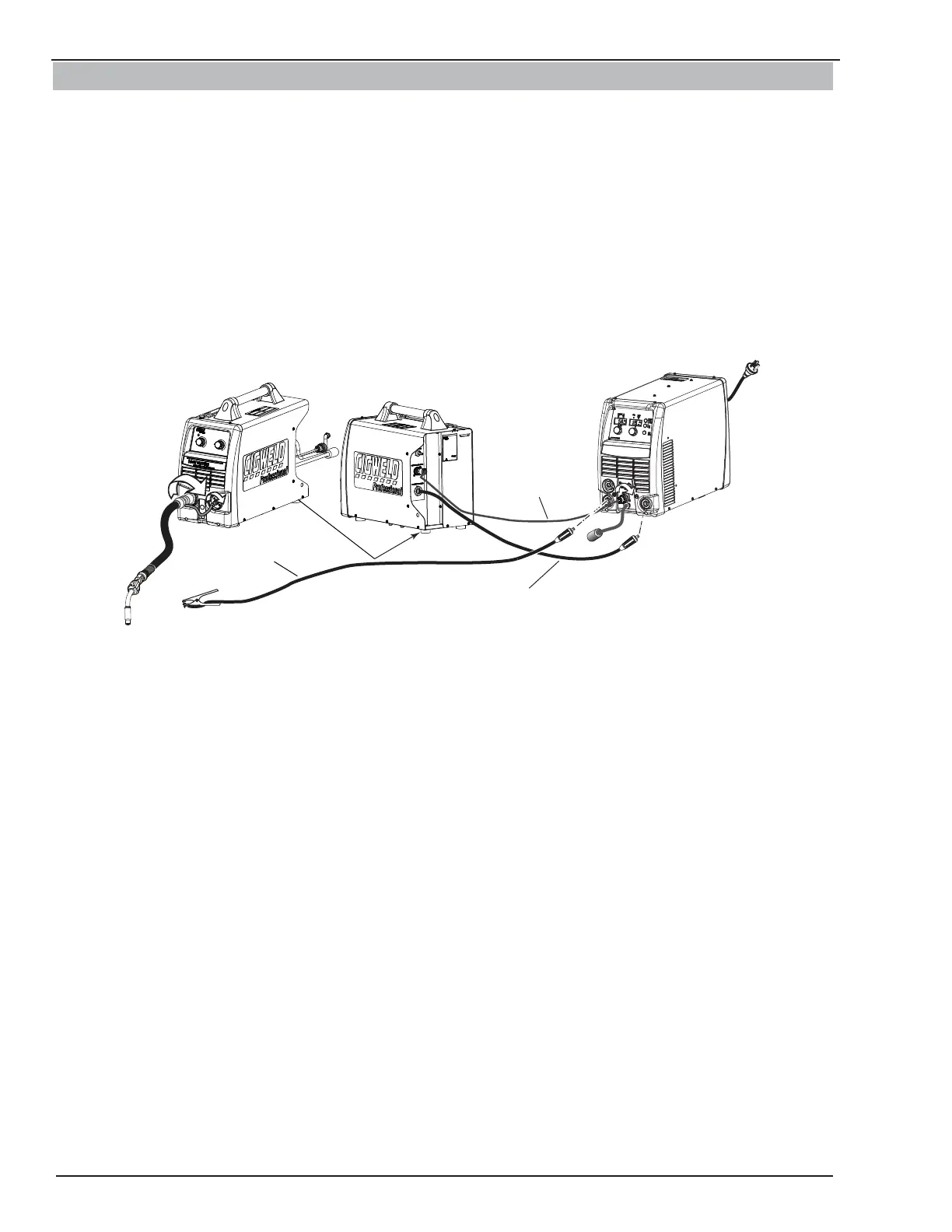

Figure 3-8: Setup for 4RT Wirefeeder with Gasless MIG Wire
Connection to Transmig 350i,450i,550i
The Transmig 350i, 450i and 550i are supplied with a Tweco air-cooled MIG Torch that can be used with the 4RT Wire
Feeder. The Tweco MIG Torch is designed with an ergonomic handle and fewer parts to cause performance problems.
The Tweco MIG Torch uses standard readily available Tweco Fusion consumable parts.
When using a gasless flux cored wire, you do not need to have an external gas source attached to the 4RT Wire Feeder.
If one is, then make sure it is turned off.
For most Self Shielded Flux Cored Wire, connect the Work Lead to the positive + terminal on the front of the Power
Source and connect the Welding Power Cable from the back of the 4RT to the negative - terminal on the front of the
Power Source.
The 4RT Wire Feeder requires an interconnection cable assembly to connect from the back of the 4RT to the front of
the Transmig welding power source. 2, 8 and 15M lengths are available. See Figure 3-9.
