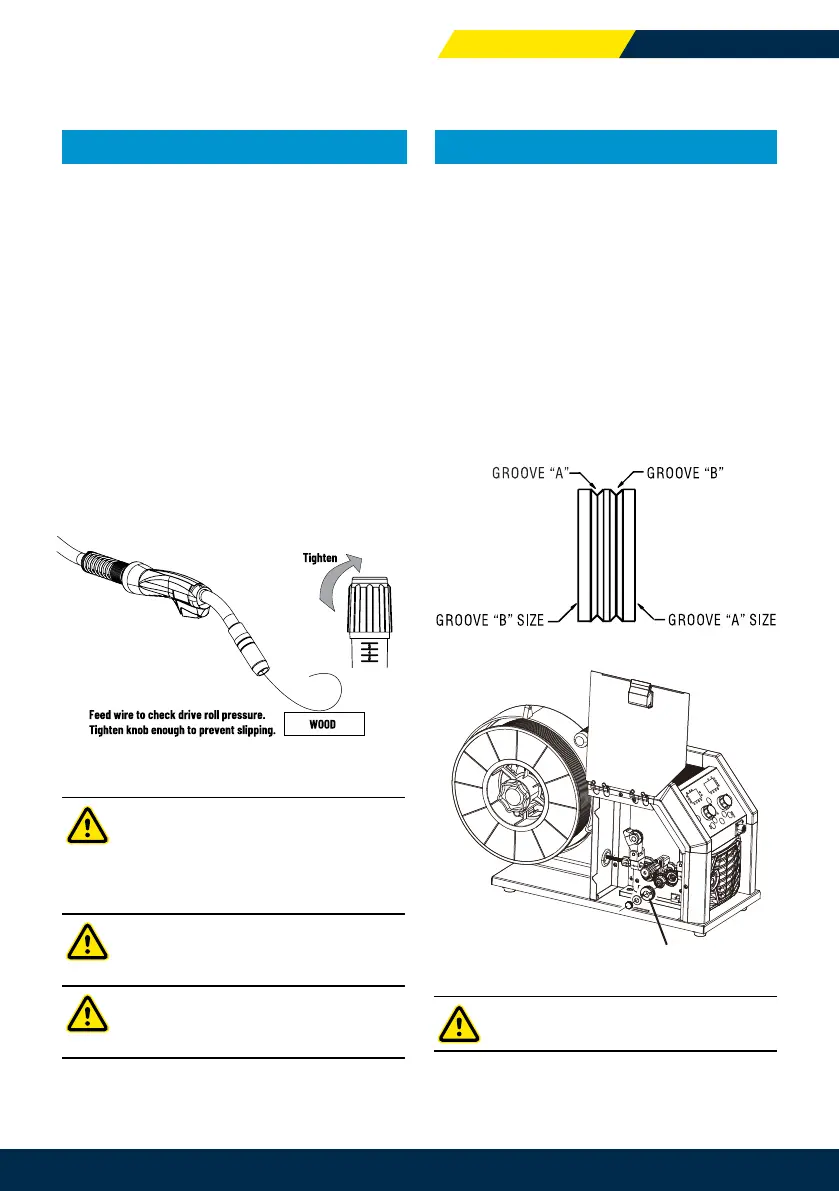

5.08 FEED ROLL PRESSURE ADJUSTMENT
The pressure (top) roller applies pressure to the grooved feed
roll via an adjustable pressure screw. These devices should be
adjusted to a minimum pressure that will provide satisfactory
WIREFEED without slippage. If slipping occurs, and inspection
of the wire contact tip reveals no wear, distortion or burn back
jam, the conduit liner should be checked for kinks and clogging
by metal akes and swarf. If it is not the cause of slipping, the
feed roll pressure can be increased by rotating the pressure
screw clockwise.
A simple check for the correct drive tension is to bend the end
over of the wire (once out the end of the MIG Gun) and hold it
about 50mm from a piece of wood (an insulated object) and let
it run into the wood. The wire should coil up without stopping
and slipping at the drive rollers, tighten the pressure/tension
adjustment screw if it slips.
5.09 CHANGING THE FEED ROLL
To change the feed roll, release the Wire Drive Tension Screw
and lift the Pressure Roller Arm (top roller) up and out of the
way. Loosen off and remove the feed roll retaining screw by
turning in an anticlockwise direction.
Once the feed roll is removed then to replace feed roll,
ensuring you have the correct groove size matching the wire
size you are using in the the welder. Ensure the wire size
required is the number facing outward on the feed roll when
feed roll is installed. Re-install by following these instructions
in reverse.
A dual V groove feed roll is tted as standard. It can
accommodate 0.9/1.2mm (Steel or Stainless Steel Wires).
Markings are indicated on the side edge of the feed roll, for
example 0.9V, 1.2V.
Figure 5-11: Dual Groove Feed Roll
Feed Roll
Figure 5-12: Changing the Feed Roll
Figure 5-10: Feed Roll Pressure Adjustment
WARNING
Keep hands clear of the contact tip holder while
feeding wire through to the gun. The wire can
easily pierce you skin resulting in injury.
Keep MIG Gun away from eyes and face.
WARNING
Before changing the feed roll ensure that the
mains supply to the power source is switched off.
CAUTION
The use of excessive pressure may cause rapid
wear of the feed rolls, shafts and bearing.
WARNING
Moving Parts can cause injury!
OPERATING MANUAL BLUEVENOM 4R-ROVER
CIGWELD.COM.AU | 37
