5.10 SETUP FOR MIG (GMAW) WELDING WITH GAS SHIELDED MIG WIRE
A. The BlueVenom Wheeled Power Source is supplied with a MIG Gun BZ36 "Style", 4m, Euro MIG Torch that can be used with the
Blue Venom 4R Rover Wirefeeder.
Connect the MIG Gun to the front of the 4R-Rover Wirefeeder as you would to the front of the BlueVenom Wheeled Power
Source. Refer to Section 5.02.
Refer to Section 2.10 Optional Accessories for consumable parts to suit this MIG Gun.
B. The 4R-Rover Wirefeeder is supplied with an 8 metre Interconnection Lead assembly to connect from the rear of the 4R-Rover
Wirefeeder to the front of the BlueVenom Wheeled Power Source.
C. Connect the Interconnection Lead Welding Power Cable from the Male “Welding Power“Terminal located on the Rear Panel of the
4R-Rover to the positive + terminal on the front of the BlueVenom Wheeled Power Source.
Check with wire manufacturer for recommended polarity.
D. Connect the Interconnection Lead Control Cable with 10 Pin Plug from the “Remote” 10 Pin socket on the rear of the 4R-Rover to
the Wirefeeder to the 10 Pin Socket on the front of the BlueVenom Wheeled Power Source.
E. When using a Gas Shielded wire with the 4R-Rover Wirefeeder you need to have an external Shielding Gas source connected to
the 4R-Rover via the Gas Hose included in the supplied 8m Interconnection Lead.
F. Fit the correct Feed Rolls for the Gas Shielded MIG wire being used. Refer to section 2.10 Options and Accessories for Feed Roll
types and Part Numbers.
G. Place the MIG wire spool onto the spool holder. Refer to sections 5.03 for 200mm diameter spools or 5.04 for 300mm diameter
spools.
H. Switch the BlueVenom Wheeled Power Source On/Off switch located on the rear of the Power Source to the On position and
ensure the Power indicator on the Front Display is illuminated.

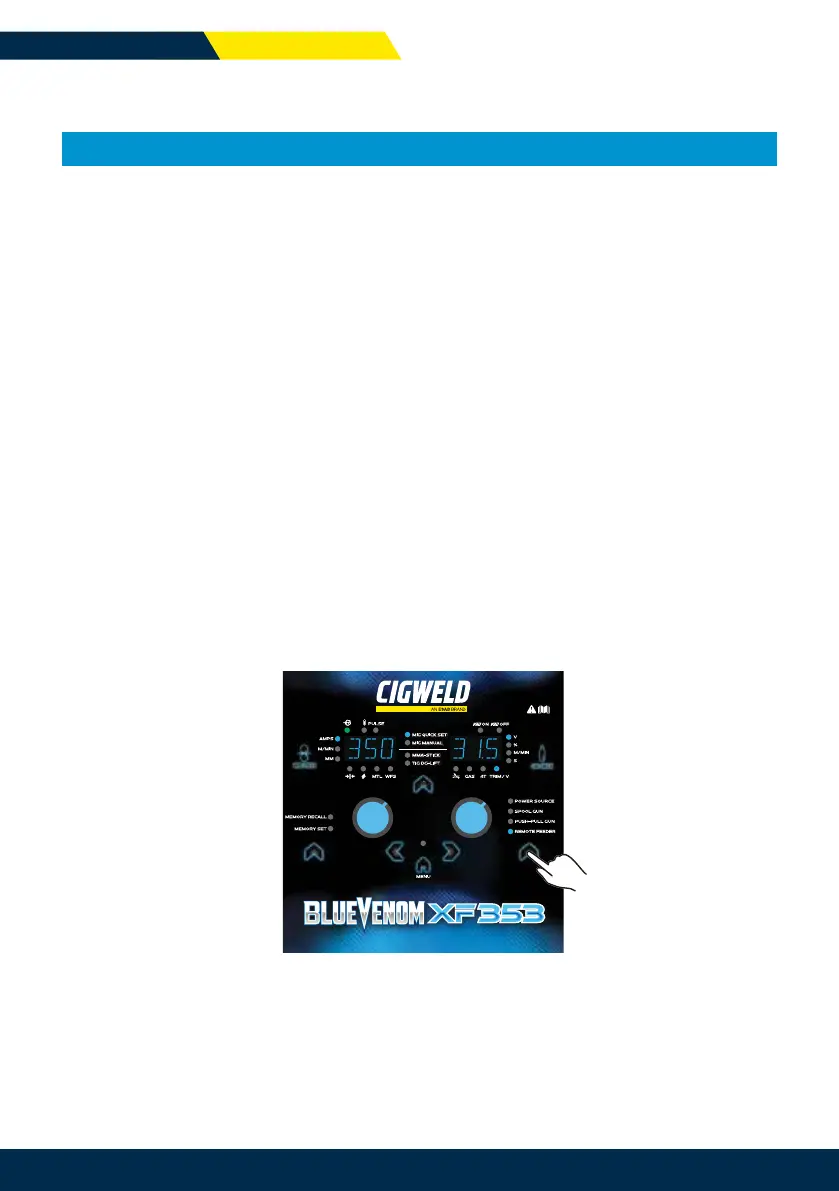

I. On the BlueVenom Wheeled Power Source press the Device Selection Button to select Remote Feeder.
C
Refer to the BlueVenom Wheeled Power Source Operating Manual for further details.
J. On the 4R-Rover select the Gas Shielded MIG Mode for the application. Refer to Section 4.02 (B).
K. Feed wire through the wire drive mechanism. Refer to section 5.07.
L. Connect the work lead to the negative welding terminal (-). If in doubt, consult the wire manufacturer. Welding current ows
from the Power Source via DINSE terminals. It is essential, that the male plug is inserted and turned securely to achieve a
sound electrical connection.
