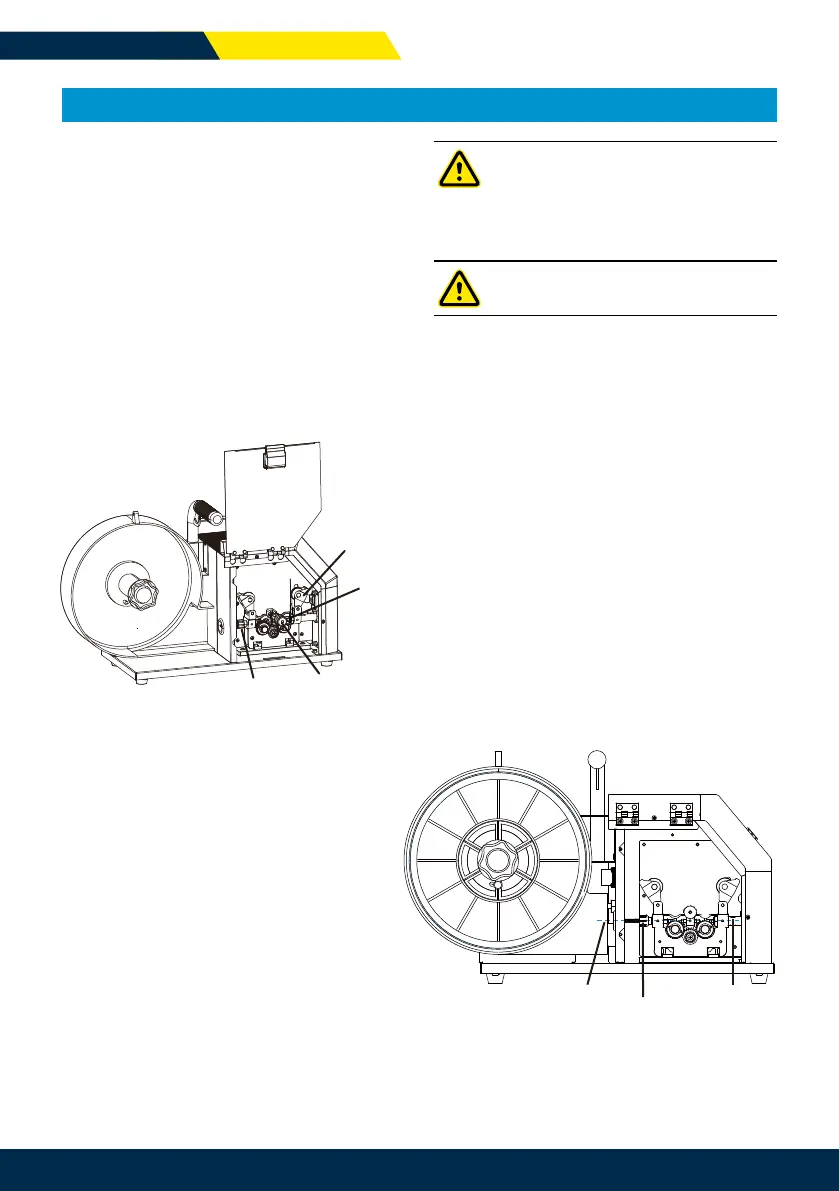

Figure 5-8: Wire Drive Assembly Components
Figure 5-9: Inserting Wire into the Wire Feed Mechanism
5.07 INSERTING WIRE INTO THE WIRE FEED MECHANISM
Release the tension from the pressure roller by turning the
adjustable wire drive tension screw in an anticlockwise
direction. Then to release the pressure roller arm, pull the wire
drive tension screw outward to release the pressure roller
arms (Figure 5-8). With the MIG welding wire feeding from the
bottom of the spool (Figure 5-9) pass the wire through the inlet
guide, between the rollers, through the outlet guide and into
the MIG Gun. Do not release the MIG wire until the Pressure Arm
is secured back into place. Adjust the wire drive tension screw
accordingly. (Refer to Section 5.08) Remove the contact tip
from the MIG Gun. With the MIG Gun lead reasonably straight,
feed the wire through the Gun by pressing the Wire Inch button
on the front Control Panel, or by depressing the trigger switch.
Fit the appropriate contact tip.
WARNING
Keep hands clear of the contact tip holder while
feeding wire through to the gun. The wire can
easily pierce you skin resulting in injury.
Keep MIG Gun away from eyes and face.
WARNING
Moving Parts can cause injury!
Inlet Guide
Wire Drive
Tension Screw
Outlet Guide
Pressure Roller Arm
36 | CIGWELD.COM.AU
OPERATING MANUALBLUEVENOM 4R-ROVER
Outlet Guide
Inlet Guide
MIG Welding Wire
