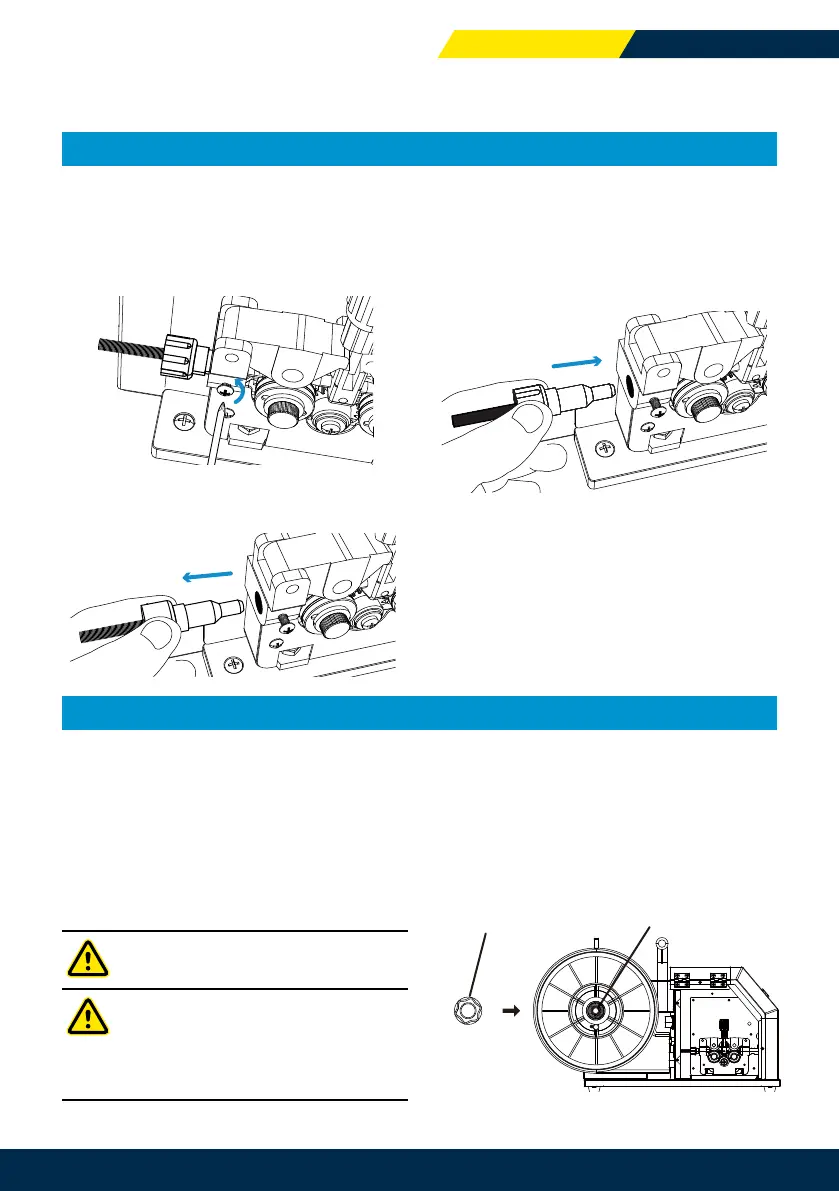

5.05 CHANGING INLET GUIDE FOR ALUMINIUM AND OTHER SOFT WIRES
The Optional PulseMate Kit (P/N: W4200PM1) contains a Nylon Inlet Guide. It is recommended to use this with Aluminium and soft
wires.
Before changing the Inlet Guide ensure wire is removed from the MIG Gun and Wire Drive system.
A. Loosen Inlet Guide retaining screw as shown.
B. Remove the Steel Inlet Guide as tted to the machine from
factory from the Wire Drive Assembly.
C. Fit the Nylon Inlet Guide (Yellow) into the Wire Drive
Assembly as shown and tighten the retaining screw.
D. Fit the appropriate feed roll to suit the Aluminium or Soft
wire being used. Refer to sections 5.09 Changing Feed Roll
and section 2.10 Optional Accessories.
E. Install the wire spool and carefully without bending or
kinking the wire feed the Aluminium or Soft wire into the
feed mechanism. Refer to sections 5.03, 5.04, 5.05 and
5.07 for further information.
A replacement Nylon Inlet Guide is available. Refer to
section 2.10 Optional Accessories.
5.06 SPOOL HUB BRAKE
When tting the Wire Spool, the adjustment of the Wire Reel
Brake Adjustment Nut will control the MIG Wire Spool Brake.
Rotating the Wire Reel Brake Adjustment Nut clockwise
increases the brake and rotating the Wire Reel Brake
Adjustment Nut counterclockwise reduces the brake. To
access the Wire Reel Brake Adjustment Nut remove the Wire
Spool Retaining Nut. Brake is correctly adjusted when the spool
stops within 10 to 20mm (measured at the outer edge of the
spool) after MIG Gun trigger is released. Wire should be slack
without becoming dislodged from the spool.
WARNING
Moving Parts can cause injury!
WARNING
Overtension of brake will cause rapid wear of
mechanical WIREFEED parts, overheating of electrical
componentry and possibly an increased incidence of
electrode wire Burnback into contact tip.
Wire Spool Retaining Nut
Wire Reel Brake
Adjustment Nut
Figure 5-7: Wire Reel Brake
OPERATING MANUAL BLUEVENOM 4R-ROVER
CIGWELD.COM.AU | 35
