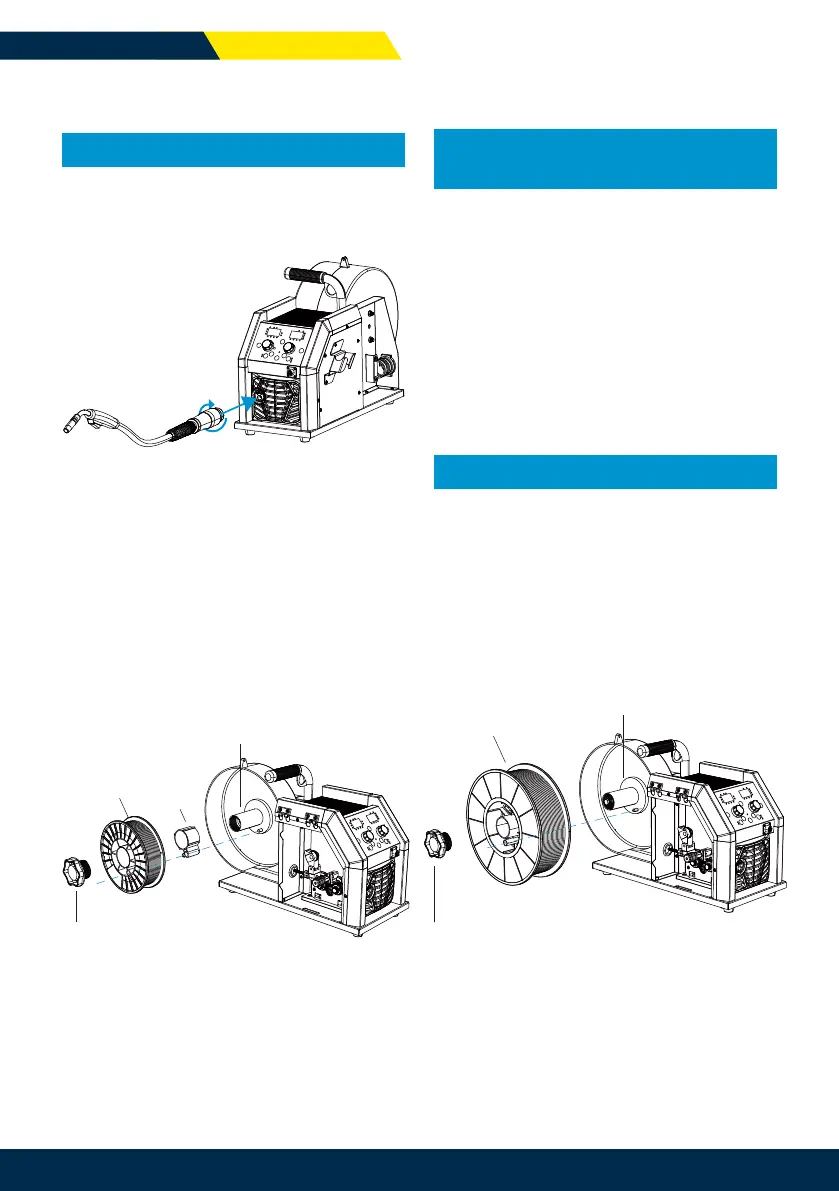

5.02 ATTACHING THE MIG GUN (EURO)
Fit the MIG Gun to the Wirefeeder by pushing the MIG Gun
connector into the MIG Gun adaptor and screwing the plastic
nut clockwise to secure the MIG Gun to the MIG Gun adaptor.
Figure 5-4: Attaching the Euro MIG Gun
5.03 INSTALLING HANDISPOOL
(200mm DIAMETER)
In order to t a Handi Spool of 200mm diameter the supplied
200mm Spool Adaptor is to be used.
Remove the Wire Spool Retaining Nut as shown. With the
200mm Spool Adaptor in place ensuring the locating the hole
in the 200mm Spool Adaptor aligns with the alignment pin on
the Spool Hub as shown in Figure 5-5.
Install the 200mm wire spool over the spool hub locating the
hole in the 200mm Wire Spool with the alignment pin on the
200mm Spool Hub adaptor.
Replace the Wire Spool Retaining Nut tightening rmly to
secure the Wire Spool in Place.
5.04 INSTALLING 300MM SPOOL
In order to t a 300mm wire spool the supplier adaptor for
200mm Wire Spools is NOT required to be used.
Remove the Wire Spool Retaining Nut by turning in a counter
clockwise direction. Install the 300mm Wire Spool over
the Spool Hub, locating the hole in the Wire Spool with the
alignment pin on the Spool Hub as shown in Figure 5-6.
Replace the Wire Spool Retaining Nut by turning in a clockwise
direction until rmly tightened to secure the Wire Spool in
place.
Wire Spool
Retaining Nut
Spool Hub
200mm
Spool
200mm
Spool
Adaptor
Figure 5-5: 200mm Handi Spool Installation
Spool Hub
Wire Spool
Retaining Nut
300mm
Spool
Figure 5-6: 300mm Handi Spool Installation
34 | CIGWELD.COM.AU
OPERATING MANUALBLUEVENOM 4R-ROVER
