5.01 SHIELDING GAS REGULATOR/FLOWMETER OPERATING INSTRUCTIONS
SECTION 5:
MIG (GMAW/FCAW) WELDING
SHIELDING GAS CONNECTION
WARNING
This equipment is designed for use with welding
grade (Inert) shielding gases only.
A Preset Argon Regulator/Flowmeter and Gas Hose Kit comes
with the Power Source plant. Connect the gas regulator onto
the gas cylinder/bottle by hand, keeping the round sight gauge
in the vertical position. Then tighten the nut with a spanner,
but do- not over tighten. Connect the gas hose to the threaded
outlet on the right-hand side of the regulator (Picture A) and
tighten with a spanner. Connect the other end of the gas hose
to gas inlet tting on the rear panel of the welding machine
using the supplied Quick Connect ttings. Check for any leaks
with soapy water in a squeeze bottle, and look for bubbles
(when the gas is on), this will highlight any gas leaks.
The gas ow (in Litres Per Minute) for shielding the molten
weld metal from the atmosphere is adjustable and depends
on the job and atmospheric conditions you encounter when
welding. As a general rule for MIG Welding, always use a
minimum of 12 LPM when welding with an amperage range of
under 100Amps, a min. of 15 LPM when the amperage is under
180Amps and a minimum of 18 LPM for welding amperages
over 200Amps. A lower gas ow will affect the welding quality
and cause a porous weld while high gas ow results in bigger
consumption of gas.
The ow rate is measured at the middle of the oat ball.
Argon Regulator/FlowmeterGas Inlet Fitting
Hose Clamp
Shielding Gas
Cylinder
Gas Hose

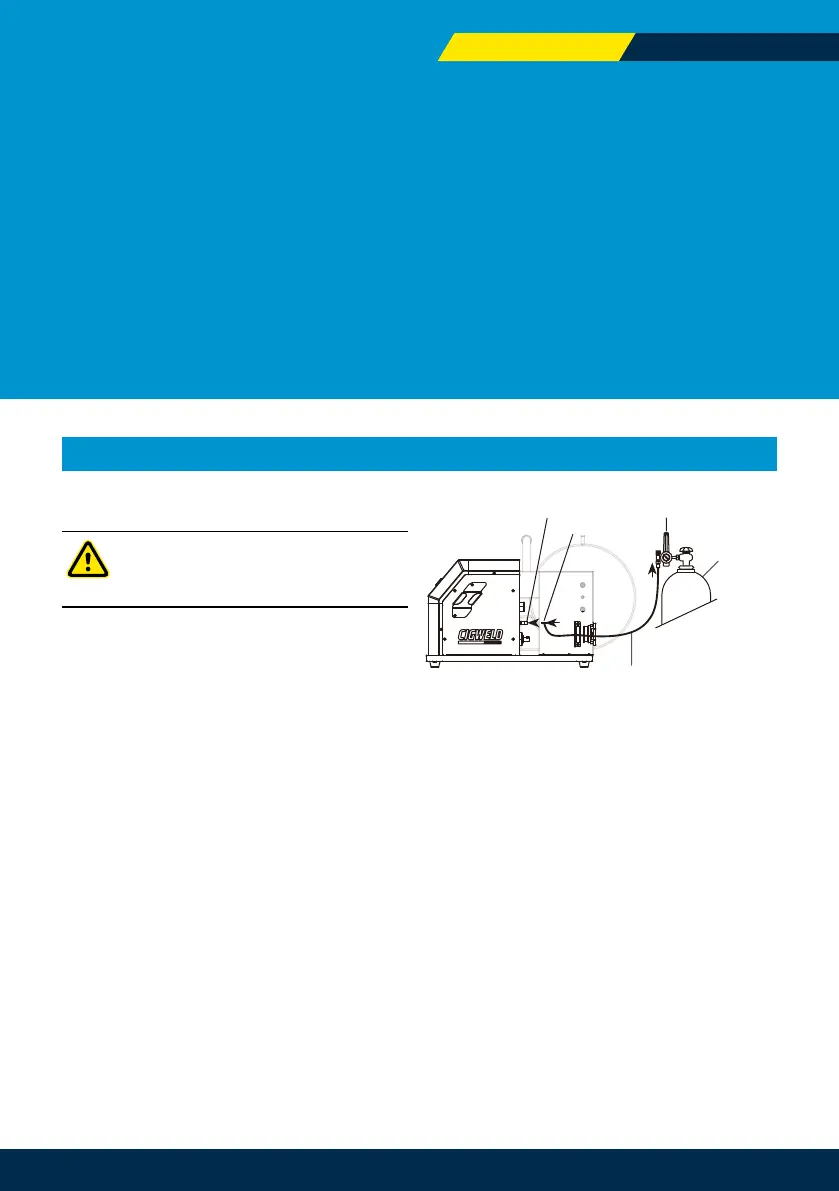

Figure 5-1: Shielding Gas Connection
SHIELDING GAS REGULATOR/
FLOWMETER SAFETY
An Argon Regulator/Flowmeter and Gas Hose comes with the
machine plant.
This Regulator/Flowmeter is designed to reduce and control
high pressure gas from a cylinder to the working pressure
required for the equipment using it.
If the equipment is improperly used, hazardous conditions are
created that may cause accidents. It is the users responsibility
to prevent such conditions. Before handing or using the
equipment, understand and comply at all times with the safe
practices prescribed in this instruction.
SPECIFIC PROCEDURES for the use of regulators/owmeters
are listed below.
1. NEVER subject the Regulator/Flowmeter to an inlet
pressure greater than its rated inlet pressure.
CIGWELD.COM.AU | 31
OPERATING MANUAL BLUEVENOM 4R-ROVER
