Installation Instructions DVM27U Series
21

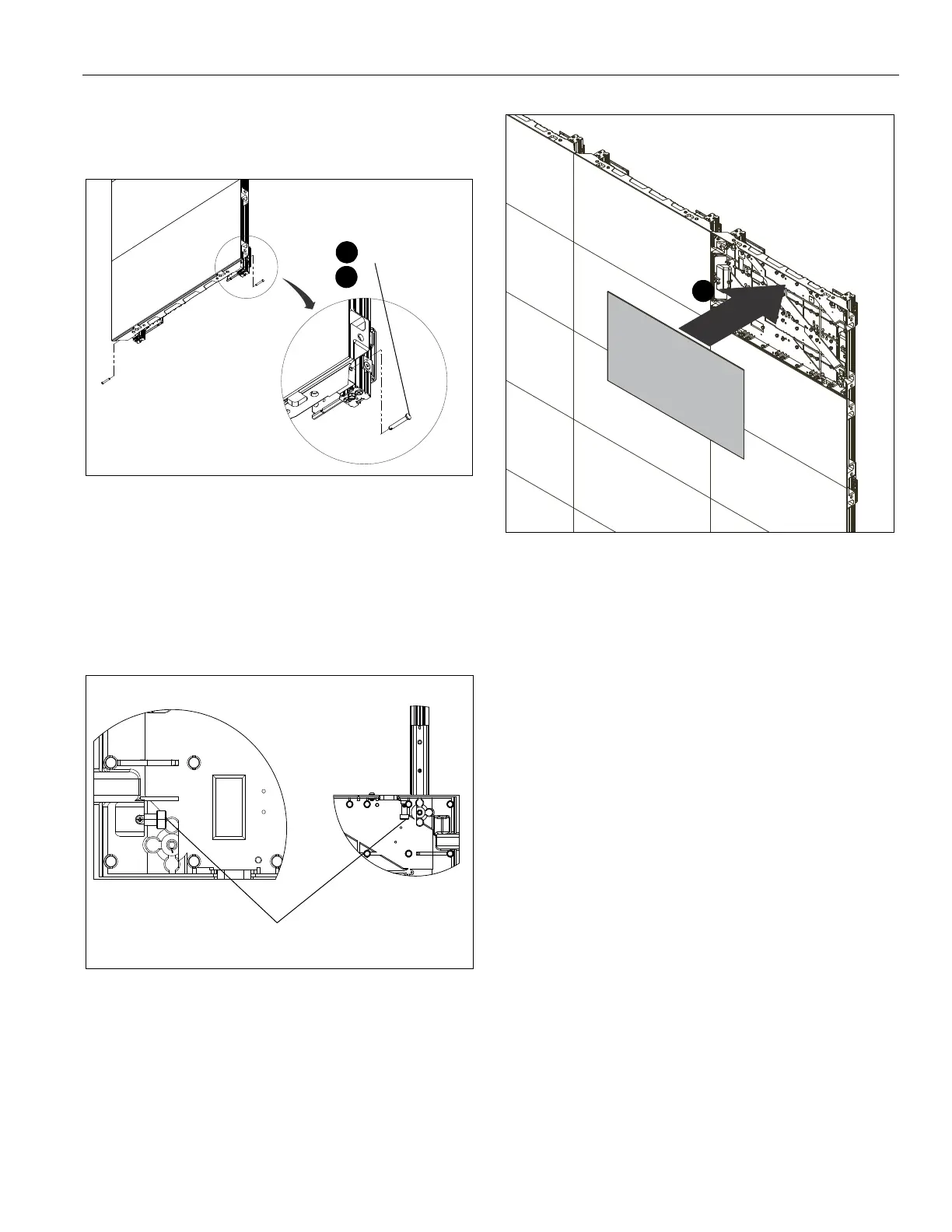

6. Add quick-release pin (CG) to the bottom of each column.
(See Figure 28)
NOTE: Pins (CG) may be installed to either side of the column.
Figure 28
7. Continue to build columns out until wall is complete
following steps in Displays Installation Section.
8. Add quick-release pin (CG) to the bottom of each column.
(See Figure 28)
9. Use display hardware included with display panels (typically
threaded shoulder bolts or cam-locks) to connect displays
to each other. (See Figure 29)
Figure 29
NOTE: Manage power cables behind displays as the wall is
built.
NOTE: Signal cables typically can be connected from the front
prior to installing LED modules.
10. Install LED modules to displays (if necessary) to complete
wall installation. (See Figure 30)
Figure 30
(CG)
6
8
display chassis
connector bolts
10
