Installation Instructions DVM27U Series
17
Plumb Leveling
1. After the bottom row has been installed and leveled, adjust
the outermost uprights away from the wall 1/4"
(approximately four full turns) prior to plumbing middle
uprights. Uprights should be adjusted to a point that the
mount rail extends past the planar face of all the middle
uprights. Depth adjustment is controlled by depth
adjustment screws on each upright. (See Figure 14)

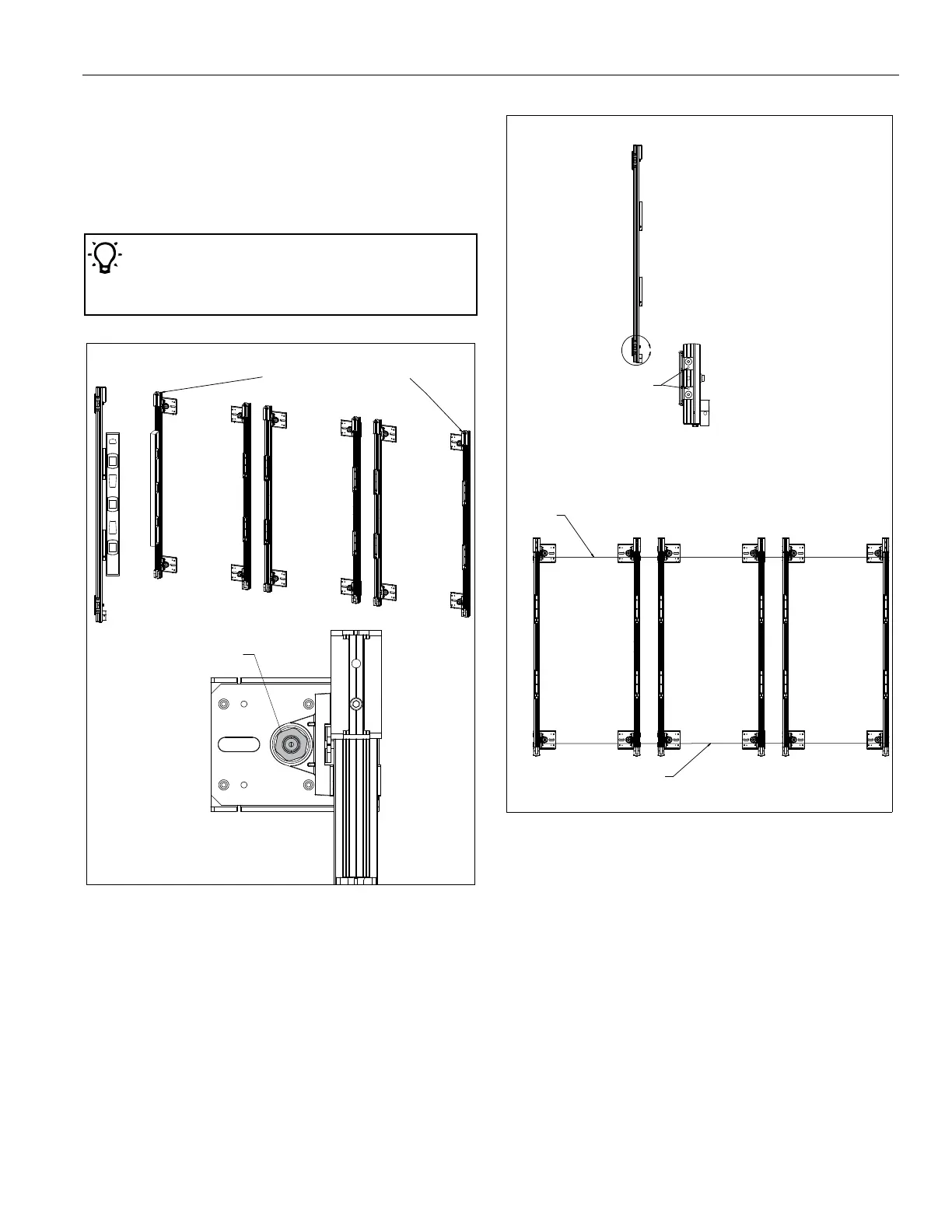

Figure 14
2. After the outer uprights are plumb, use a #6-32 self-tapping
screw (CC) to connect a string line from one outer upright to
the other. (See Figure 15)
3. Adjust inner uprights until they all touch the string. (See
Figure 15)
Figure 15
Just a tip - Slide H-blocks as necessary to
attach a magnetic 2-foot level on the mount face to
plumb uprights.
SIDE VIEW
DEPTH ADJUST AND PLUMB THESE RAILS FIRST
DEPTH ADJUST
SIDE VIEW
STRING LINE
*ADJUST ALL MIDDLE BRACKETS OUT TO STRING LINE*
R
STRING LINE
CONNECTION
LOCATIONS
STRING LINE
DETAIL R
SCALE 1 : 2
