DVM27U Series Installation Instructions
16

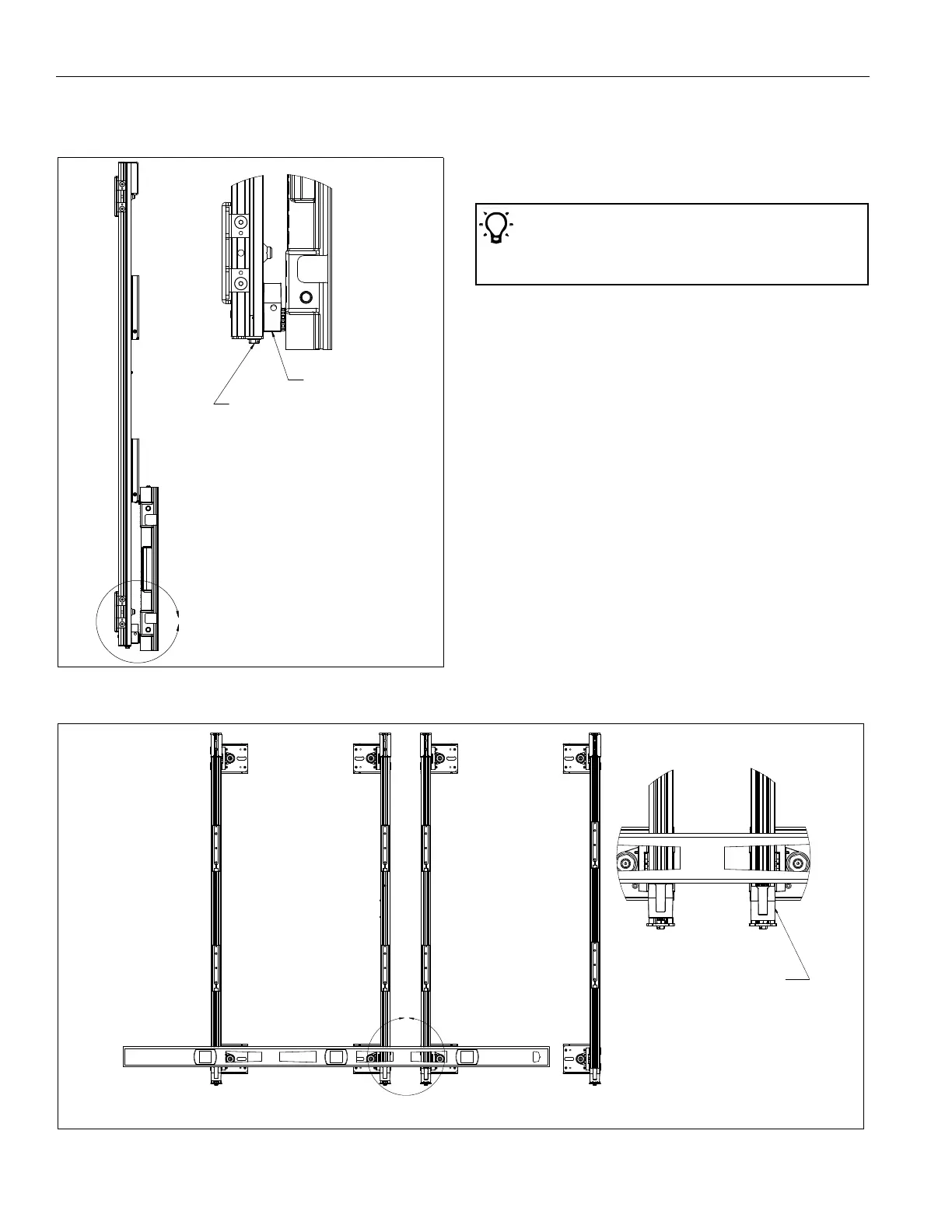

32. If height adjustment is required for the displays to cover the
mount, remove display and make the minimum height
adjustment determined in Step 31 by adjusting the height
adjustment screws using a 5/16" socket driver. (See Figure
12)
Figure 12
33. Adjust each base carriage on the first column the required
amount for coverage. Rest a level across the height-
adjustment carriage on each upright to level the carriages
on the first row at (or above) the required coverage height.
(See Figure 13)
34. Adjust the carriages on the adjacent columns to make sure
they are level.
BASE C ARRIAGE
HEIGHT / LEVELING ADJUSTMEN T
SCREW (+2"/-0" A S SHIPPED)
*IF BELOW EQUATIONS ARE 'FALSE', USE
HEIGHT ADJUST SCREW TO ADJUST
BOTTOM PANEL
UNTIL THEY ARE 'TRUE'*
4-HIGH : CH = 3(DH) 3-
HIG H: CH = 2(DH)
2:HIG H: CH = DH
**IF ABOVE EQUATIONS ARE INITIALLY 'TRUE',
ADJUSTM ENT SCREW FOR LEVELING ONLY**
F
Just a tip - Make adjustments to base carriages
before hanging mount uprights to wall.
Figure 13
DETAIL G
SCALE 1 : 2
ADJUST BASE CARRIAGES ON ADJACENT COLUMNS
ONE AT AT TIME TO LEVEL WITH FIRST COLUMN WHERE
HEIGHT ADJUSTMENT WAS MADE
G
*NOTE: IF NO HEIGTH ADJUSTMENT WAS NEEDED, LEVELING
CAN BE DONE WITH BOTTOM ROW OF DISPLAYS INSTALLED*
LEVEL FIRST COLUMN ON BASE CARRIAGES
THEN ADJUST ADJACENT COLUMNSTO FIRST
COLUMN (SEE DETAIL VIEW)
