To enable output of channel data select the DMX IO VIEW in the Setup Window. This window
enables modification of the inputs and outputs for all the universes. MagicQ consoles support
DMX directly from the console or via an external Ethernet to DMX convertor. On MagicQ PC
or Mac you can output via USB to DMX interfaces (such as MagicDMX) or via DMX outputs
from the Wings.
Using Direct DMX Outputs
All current MagicQ consoles have DMX output ports directly on the rear panel.
The four DMX outputs on the rear panel automatically output universes 1 to 4 unless they are
configured otherwise. The DMX will be output regardless of the "Status" enabled or disabled
in the Setup DMX I/O window. On Pro consoles there is a green LED on the rear panel that
indicates when DMX is being output.
If you wish to choose alternative universes to be output to the four DMX outputs on the rear
panel then you will need to configure the outputs manually. For each of the Universes you
wish to output on the rear panel, select Out Type as "MagicQ Direct" and Port 1, Port 2, Port 3
and Port 4 and enable the universes.

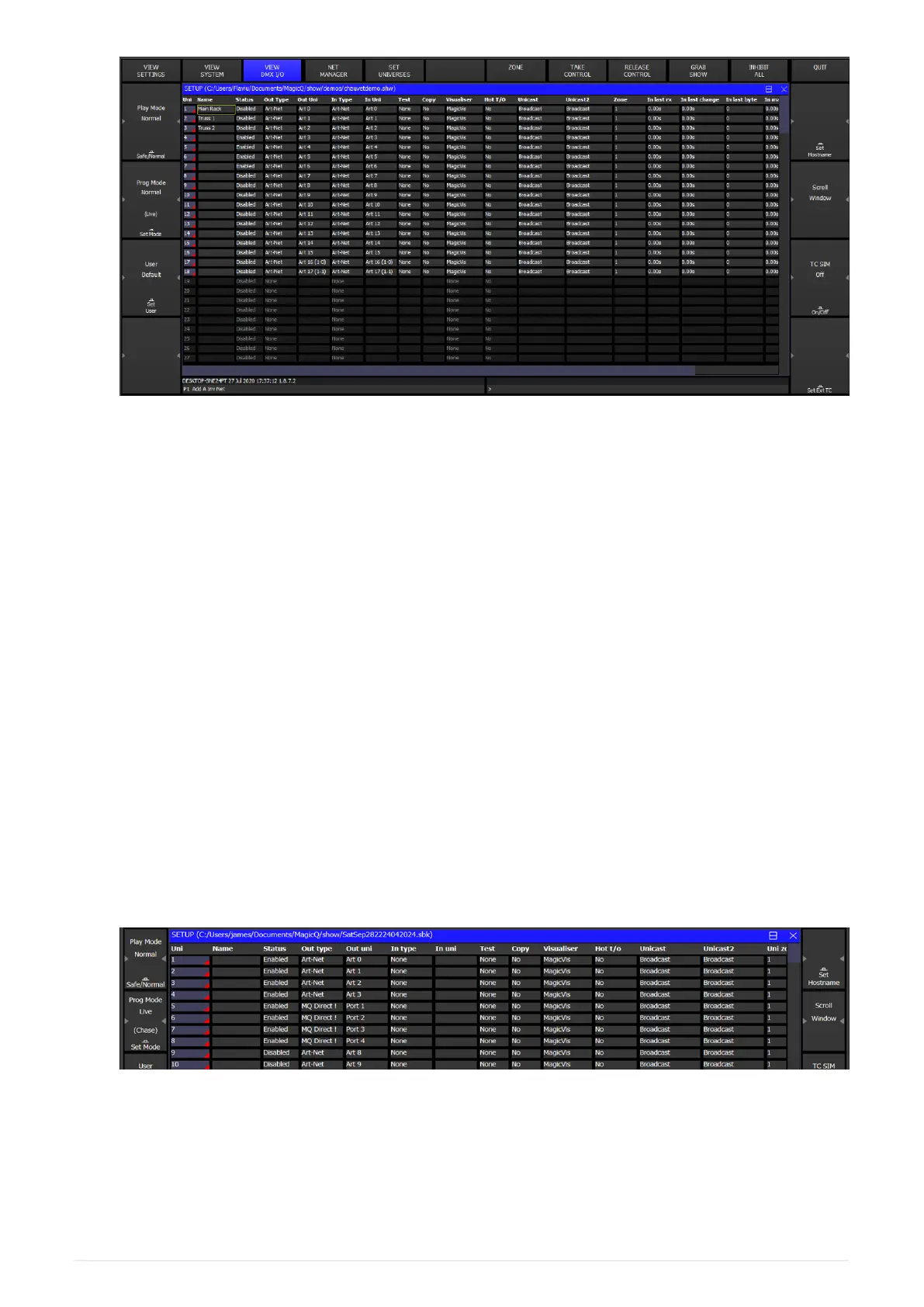

The picture below shows the direct ports to output Universes 5 to 8.
Using Outputs via Network
MagicQ supports output via the network ports using Art-Net, Pathport or ACN Streaming
DMX.
To output Art-Net on a Universe enable it and ensure that the output type is set to Art-Net.
2025-02-12 ChamSys Manuals 53
