37

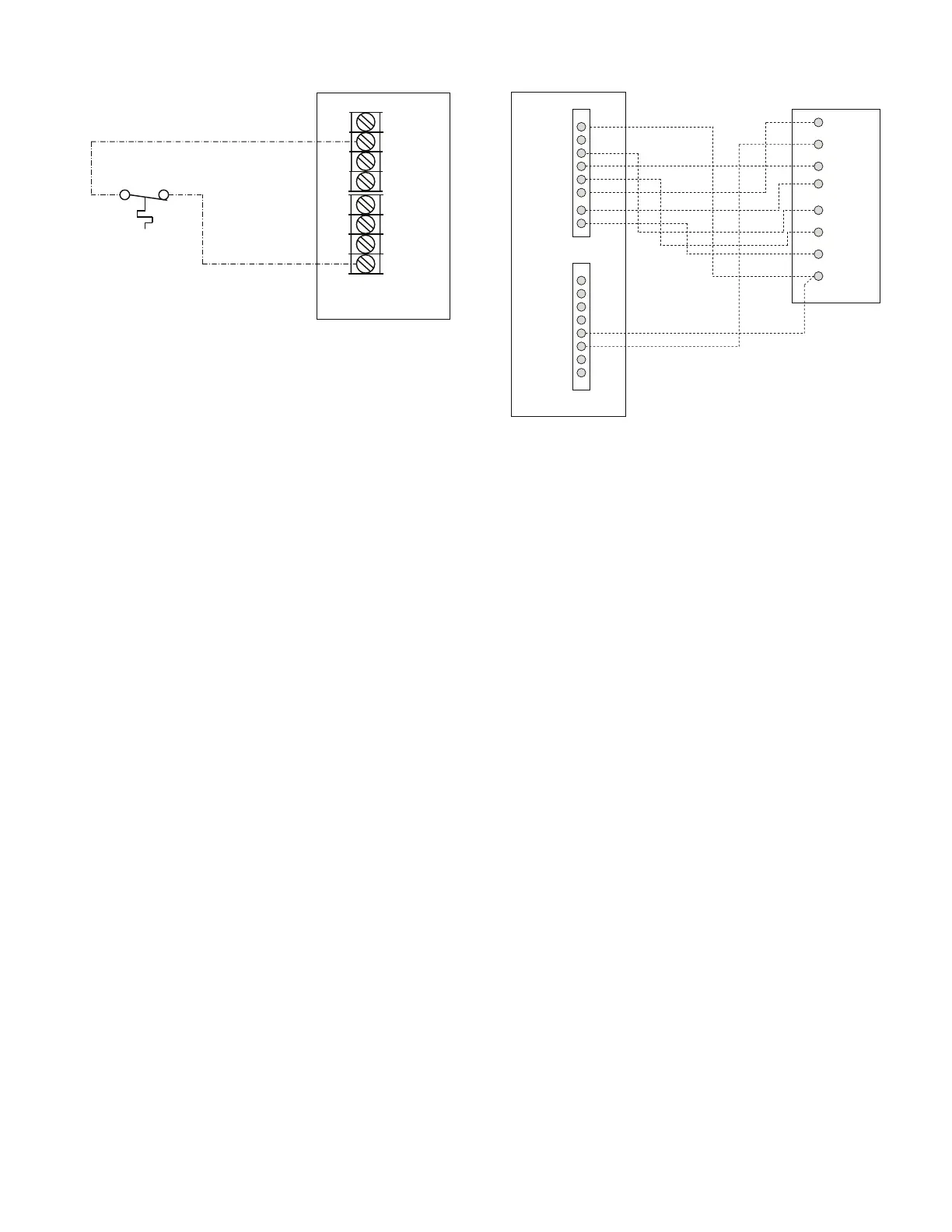

Fig. 57 — Humidistat Connections to UCB
To connect the Thermidistat device (33CS2PPRH-01):
1. Route the Thermidistat multi-conductor thermostat cable
(field-supplied) through hole provided in the unit corner post.
2. Feed wires through the raceway built into the corner post (see
Fig. 54) to the 24 v barrier located on the left side of the con-
trol box. The raceway provides the UL-required clearance
between high-voltage and low-voltage wiring.
3. The Thermidistat has dry contacts at terminals D1 and D2
for dehumidification operation (see Fig. 58). Connect D1 to
the R terminal on the UCB. Connect D2 to the HUM termi-
nal on the UCB. Refer to the installation instructions
included with the Carrier Edge
®
Pro Thermidistat device for
more information.
Fig. 58 — 48GE**17-28 Unit with Humidi-MiZer
Adaptive Dehumidification System with
Edge
®
Pro Thermidistat Device
Typical Unit Wiring Diagrams
See Fig. 59-64 for examples of typical unit control and power wir-
ing diagrams. These wiring diagrams are mounted on the inside of
the unit control box. Refer to the wiring diagrams in the unit con-
trol box when making field power wiring connections.
Humidistat
Unit Control
Board
Thermostat
C
HUM
G
W2
W1
Y2
Y1
R
Rc
Rh
W1
G
Y2
C
O/W2/B
Y1
OAT
RRS
S RTN
HUM
D1
D2
V+
Vg
C
HUM
G
W2
W1
Y2
Y1
R
Programmable
Thermostat
Unit Control Board
Thermostat Connections
