26

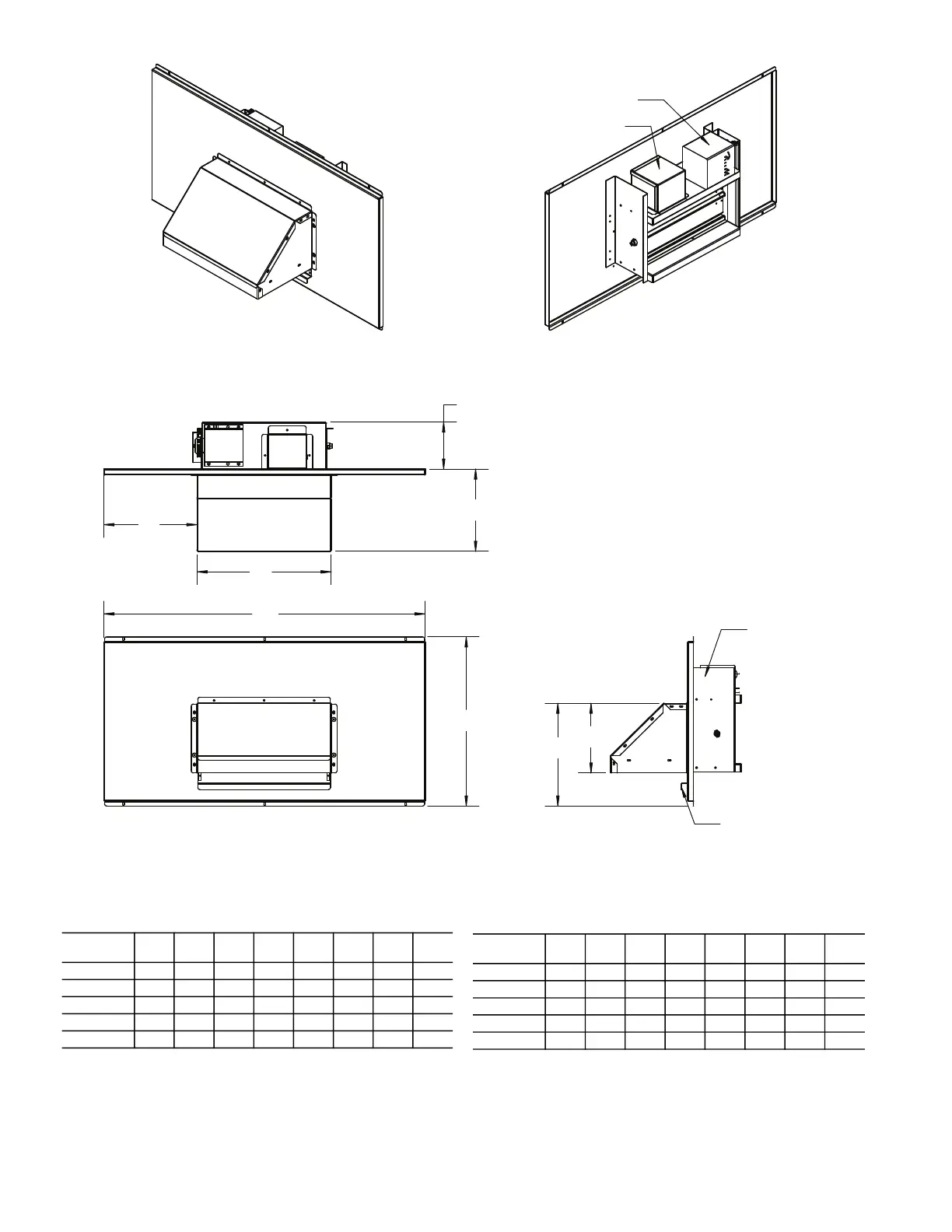

Fig. 21 — 39SR Unit Sizes 02-17 — Motorized Outside Air Damper
C
D
E
F
Optional on MOAD
Manual Damper Slide
Standard on FAD
Rotating Damper
Assembly
Standard on MOAD
Optional on FAD
H
G
A
B
Rear Isometric View
Actuator (opt)
Front Isometric View
Transformer (opt)
Motorized Outside Air Damper (MOAD) Dimensions
(in.)
a
NOTE(S):
a. Dimensions are shown in inches.
39SR UNIT
SIZE
A B C D E F G H
02, 03 29.9 19.1 8.7 5.6 24.1 2.9 13.4 10.4
04, 05 37.8 23.5 14.6 5.6 25.3 6.3 17.3 13.8
07, 09 48.8 28.4 17.4 5.6 44.4 2.2 21.8 19.6
13 48.8 34.9 22.3 5.6 40.5 4.1 28.3 25.8
17 30.3 46.8 25.0 5.6 25.2 2.5 38.9 31.8
Fixed Air Damper (FAD) Dimensions (in.)
a
NOTE(S):
a. Dimensions are shown in inches.
39SR UNIT
SIZE
A B C D E F G H
02, 03 28.8 16.1 10.7 5.6 10.3 9.3 12.9 10.1
04, 05 37.8 20.1 9.8 5.6 15.8 11.0 12.2 8.3
07, 09 48.8 26.9 14.5 5.6 25.3 11.8 17.6 14.1
13 48.8 34.9 19.4 5.6 21.8 13.5 23.2 19.8
17 30.3 46.8 18.8 5.6 25.3 2.5 32.9 19.8
