56 Switch to safety mode preceding that of Pr 55 0 0
57 Switch to safety mode preceding that of Pr 56 0 0
58 Switch to safety mode preceding that of Pr 57 0 0
59 PLC ladder programme validation 0 0

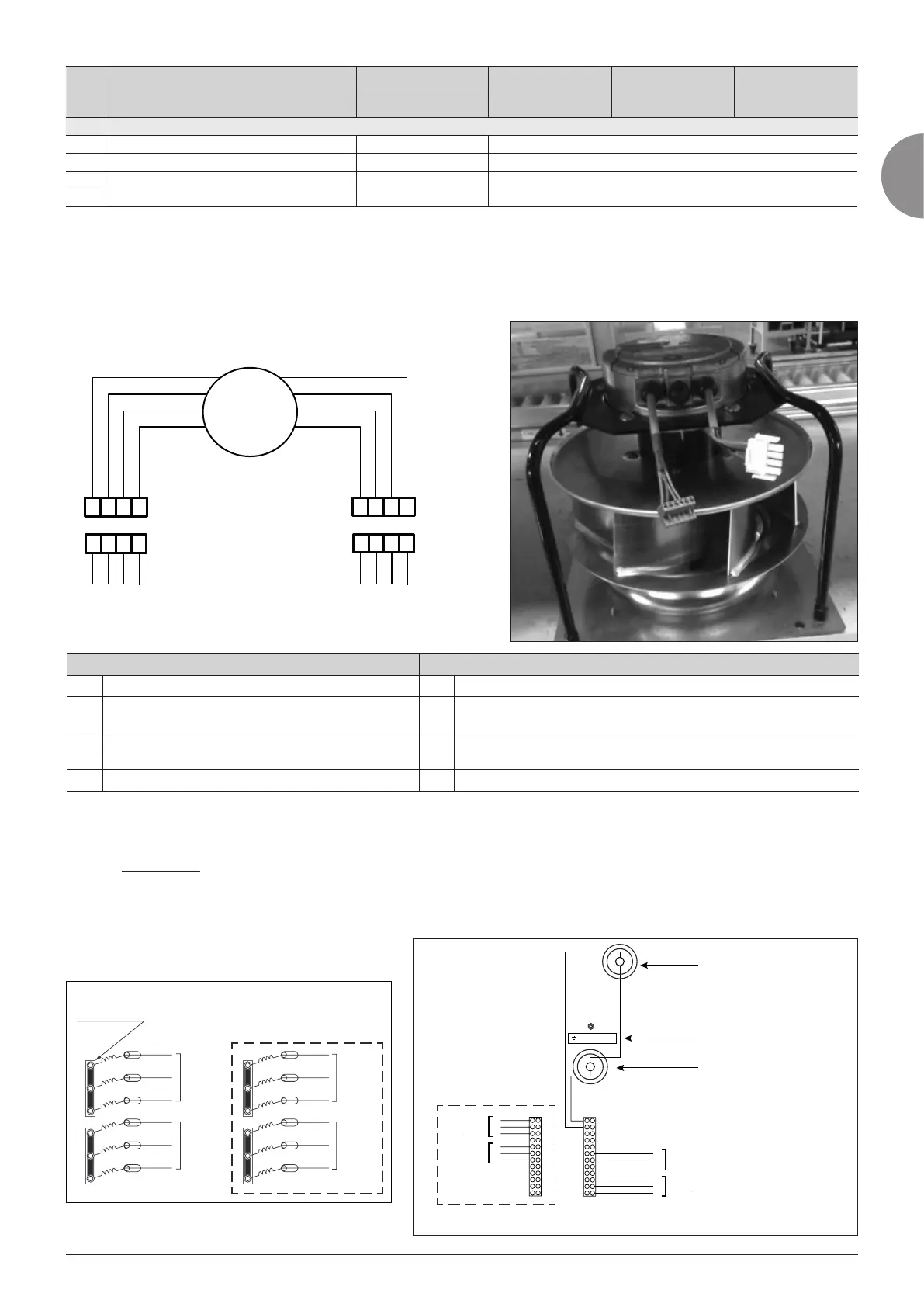

FMA with EC motor:
As standard, EC motors are supplied with connectors which allow them to be connected to the terminal box with no intervention.
Two cables (power and control) are provided to facilitate connection to the connectors.
M
Bleu
Rouge
Jaune
J / V
Noir
Noir
Noir
Orange
1 2 3 4
2 3 5 6
Power cable Control cable
4 Live L1 6 Potential free, normally closed state signalling contact
3 Live L2 5 Potential free state signalling contact, changeover switch, shared connection (2A, max
250 VCA, min.10mA, AC1)
2 Live L3 3 0-10 VDC actual value/control input, impedance 100kOhm; only use as an alternative
to the 4-20mA input, SELV
1 Earth 2 Reference earth for control interface, SELV
4.6.2 Electric heater
Without box:
Connection to the coil terminals (accessible from the side).
Par Description
Factory setting Setting 1:
Speed from
potentiometer
Setting 2:
Speed from
contact
Setting 3:
Speed on the
keypad
Eur
Level 3 parameters
With regard to the heaters: With regard to the terminal:
Barettes de
connexion
étage 1
étage 3
étage 5étage 4
Option A
3 x 400 V - 50 Hz
4
5
6
1
2
3
étage 3
étage 4
étage 1
étage 2
4
5
6
1
2
3
thermostat à réarmement
automatique (80°C)
étiquette terre /tension
thermostat à réarmement
manuel (115°C)
Option A
Barettes nylon 960
Y/G
Black
Black
Black
Blue
Yellow
Red
Orange
Connection strips
Option A
stage 1
stage 4
stage 3
stage 3
automatic-reset thermostat
(80°C)
Earth/voltage label
manual-reset thermostat
(115°C)
Option A
stage 3
stage 4
stage 1
stage 2
Nylon 960 strips
