pCO5plus +0300020EN rel. 1.9 - 28.03.2025

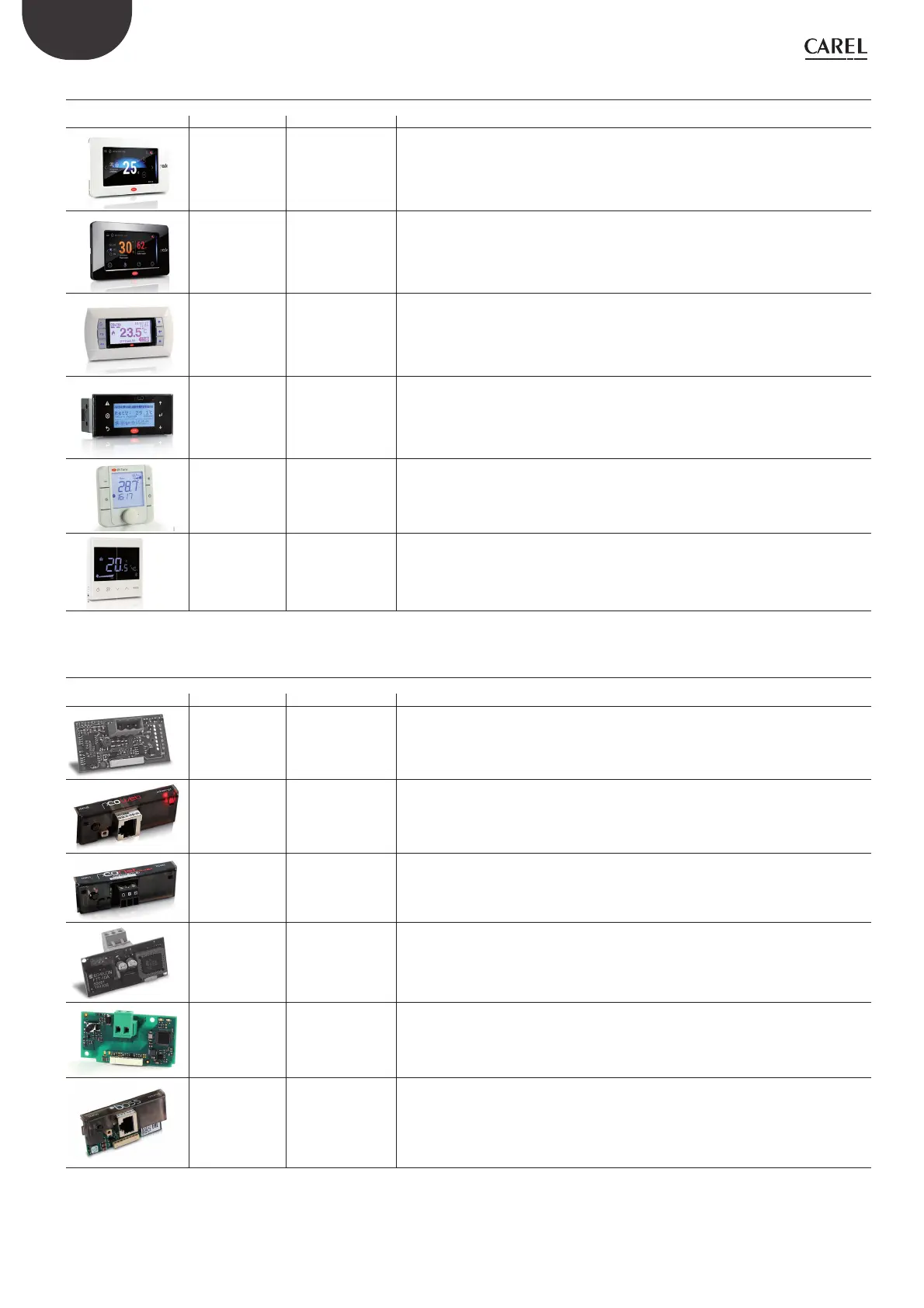

1.4 Terminali
P/N Description Notes
PG[R/B]04*
(Technical lea et
+050001895)
pGDx 4,3”
User terminal
The pGDx 4.3 inch graphic terminal is part of the touch screen family, designed to make the user interface with
the c.pCO sistema controllers simple and intuitive. The electronic technology used and the 65’000 colour di-
splay enable management of high quality images and advanced features to ensure a high aesthetic standard.
The touch screen display guarantees simple human-unit interaction, making it easier to browse between the
various screens.
PG[R/B]07*
(Technical lea et
+050001950)
pGDx 7”
User terminal
The pGDx 7 inch graphic terminal is part of the touch screen family, designed to make the user interface with
the pCO sistema controllers simple and intuitive. The electronic technology used and the 16 million colour di-
splay enable management of high quality images and advanced features to ensure a high aesthetic standard.
The touch screen display guarantees simple human-unit interaction, making it easier to browse between the
various screens.
PGNE000*
(Technical lea et
+050001425)
pGN
graphic terminal
This provides complete graphic management through icons (de ned during application software deve-
lopment) and the management of international fonts in two sizes: 5x7 and 11x15 pixels. The application sof-
tware resides on the c.pCO controller only, and the terminal does not require any additional software during
use.
PLD**GFP00
(Technical lea et
+050001840)
pLDPRO
graphic terminal
This provides complete graphic management through icons (de ned during application software deve-
lopment) and the management of international fonts in two sizes: 6x8 and 12x16 pixels and buzzer. The appli-
cation software resides on the c.pCO controller only, and the terminal does not require any additional software
during use. It is compatible with graphic interfaces developed for the pGN graphic terminal.
AT*
(Technical lea et
+0500016IE/
+0500017IE)
th-TUNE, panel- or wall-
mounted terminal
This allows the user to set the temperature and humidity in a residential environment. th-Tune is compatible
with the main recessed wall boxes in di erent markets (Italy, USA, Germany, China).
TD*
(Technical lea et
+0500129IE/
+050000445)
thTx, thermostat for tem-
perature and humidity
control
Thermostat for controlling temperature and humidity in homes and commercial buildings, equipped with a
simple and intuitive user interface.
It features its own logic, but can also be completely controlled via the Modbus® communication protocol,
allowing complete remote management of system settings, fan operation, and operating modes.
1.5 BMS port expansion cards (c.pCO Small...Extralarge)
P/N Description Notes
PCOS004850
(Technical lea et
+050003237)
BMS RS485 serial card
This is used to interface directly with an RS485 network, with a maximum baud rate of 19200. The card guaran-
tees opto-isolation of the controller from the RS485 serial network.
PCO1000WD0
(Technical lea et
+050003243)
Ethernet - pCOweb in-
terface card
It allows the controller to interface to networks that use HVAC protocols based on the physical Ethernet stan-
dard, such as Bacnet IP, Modbus TCP/IP and SNMP. It also has an internal web server for managing the HTML
pages relating to the application, meaning a browser can be used to access the controller’s information (net-
work variables and parameters), as well as a logger function.
PCO1000BD0
(Technical lea et
+050000935)
BACnet MS/TP - pCOnet
interface card
This is used to connect the controller to a BACnet MS/TP network (Main/Secondary Token Pass) The RS485
connection is optically-isolated from the controller.
PCO10000F0
(Technical lea et
+050004045)
LonWorks® interface
card
This is used to connect to a LonWorks® TP/FT 10 network. The program resides on the ash memory housed
on the socket, and can be programmed directly via the LonWorks® network, using network installation and
maintenance tools such as LonMaker™. Information on the card programming procedures is available in the
manual +030221960. NO LONGER AVAILABLE FROM 31/10/2023
PCOS00KXN0
(Technical lea et
+030220326)
KNX® interface card
This is used to connect to a network operating in accordance with the KNX® standard via the controller’s BMS
port
PCOG000WE0/
PCOD000WE0
(Technical lea et
+050003246)
Ethernet - boss one in-
terface card
This di ers from pCOWeb, with the introduction of numerous features that cover the same applications yet
with much high levels of IT security, usability and exibility. It is available in two versions, called “gateway” and
“supervisor”. The “gateway” version has been created to mainly allow integration of the unit into a local BMS
that communicates via Modbus, BACnet and SNMP protocols. The “supervisor” version is intended for applica-
tions that, in addition to the eld protocols, require supervisory features, such as managing log les, sending
emails or instant messages for alarms, and communicating with the outside world (Internet) to CAREL cloud
systems or third-party systems via XML or MQTT protocol.
