48
ENG
iJW +0300103EN rel. 1.1 - 31.03.2025
Index
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Sv
VPD
CMP. FAN
Alarm Pd
Pressure
switch
St
t
300100_154_R01
cPt cPt
St+rd
Ref. Description
St Set point
rd Control diff erential
Sv Control threshold
PRESSURE SWITCH Low pressure switch
CMP, FAN Compressor request
VPD Liquid valve output
ALARM Pd Pump down ended after maximum time alarm
cPt Pump down time

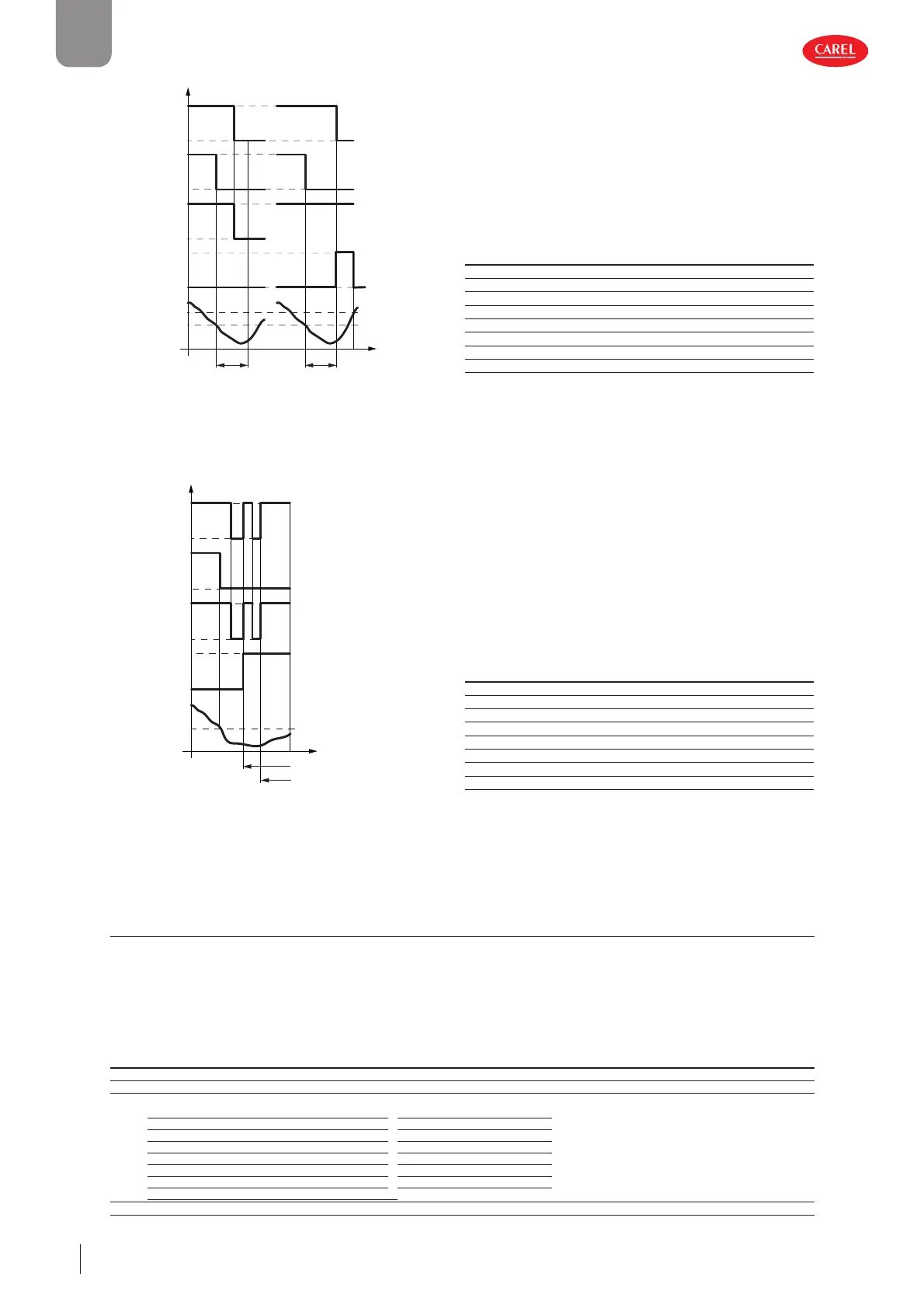

Fig. 7.p
If during pump down the status of the low pressure switch changes again and restart during pump down is enabled by setting
parameter c9 = 1, the procedure ends, the compressor restarts and a Restart in pump down alarm Ats is generated. Alarm Ats is
reset when a pump down procedure is completed correctly.
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Sv
VPD
CMP. FAN
AlS
Pressure
switch
St
t
300100_155300100_15
cPt
cPt
Ref. Description
St Set point
rd Control diff erential
Sv Control threshold
PRESSURE SWITCH Low pressure switch
CMP, FAN Compressor request
VPD Liquid valve output
Ats Restart in pump down alarm
cPt Pump down time
Fig. 7.q
When the compressor starts, the liquid valve is opened for the time set by parameter c8, to allow the pressure to equalise. If c8
= 0 pump down at start-up is disabled.
7.12 Defrost
Introduction
The iJW controller can manage diff erent types of defrosts, based on the setting of parameter d0. The defrost can end by temper-
ature, in which case the defrost probe Sd must be installed, or by time. At the end of the defrost the dripping phase may begin
(if dd>0), during which the compressor and the fans are off , followed by the post-dripping phase (if Fd>0), during which control
resumes and the fans work based on the setting of parameter Fpd. The type of display on the user terminal during defrosting
can be selected by setting parameter d6.
Code Description Def Min Max UOM User User terminal
DIc Assign enable defrost digital input - see DIA ... 0 4 - S NO
DId Assign start defrost digital input - see DIA ... 0 4 - S NO
/d1 Assign end defrost probe:
1 outlet temperature (Sm) 9 ambient temperature
2 defrost temperature (Sd) 10 not used
3 intake temperature (Sr) 11 glass temperature
4 not used 12 not used
5 not used 13 condensing temperature
6 auxiliary evaporator defrost temperature (Sd2) 14 humidity
7 auxiliary probe 1 15 frost protection temperature
8 auxiliary probe 2 16 product temperature
2 1 16 - S YES
/d2 Assign auxiliary evaporator end defrost probe - see /d1 6 1 16 - S YES
